Number of switching filterstwoChoose one, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Units | |
|---|---|---|
| IL | ≤9 | dB |
| VSWR | ≤2 | |
| Passband F1 | 32-35.5 | GHz |
| F1 Rejection | ≥65dBc@30.25GHz&37.25GHz | dB |
| Passband F2 | 34.5-38 | GHz |
| F2 Rejection | ≥65dBc@32.75GHz&39.75GHz | dB |
| Ripple | ＜1.8 | dB |
| Number of switching filters | Choose 1 from 2 |
| Switch time | 200ns |

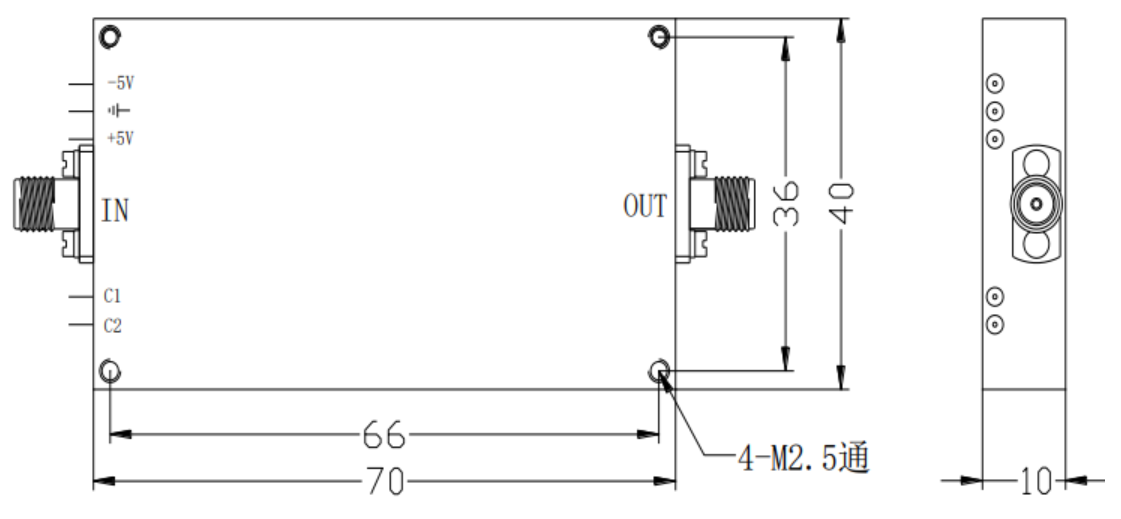

| Connector | 2.92-F detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power Capacity | 0.1W Design assurance |
| Working voltage | ±5V |
| Operation Temp. | -40~+75℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Control | TTL |
| C1 | C2 | C3 | C4 | C5 |
|---|
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
