Number of switching filtersseven选一, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

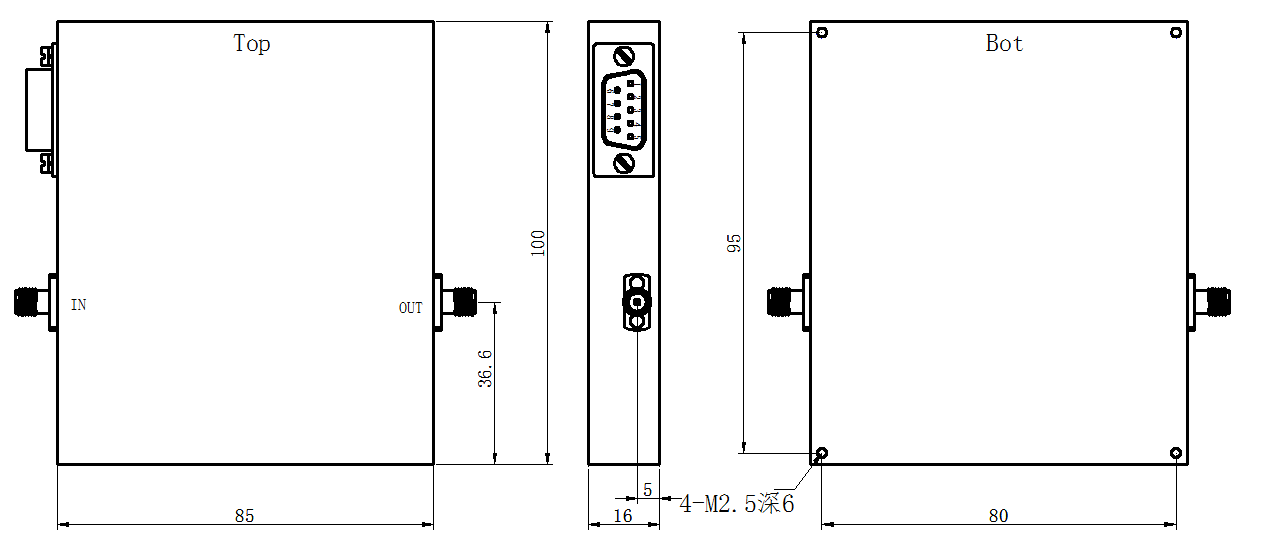

| Parameters | Units | |
|---|---|---|
| IL | 6.0 | dB |
| VSWR | 1.6 | |
| Passband F1 | 50-84 | MHz |
| Passband F2 | 84-142 | MHz |
| Passband F3 | 142-240 | MHz |
| Passband F4 | 240-405 | MHz |
| Passband F5 | 405-685 | MHz |
| Passband F6 | 685-1160 | MHz |
| Passband F7 | 1160-2000 | MHz |
| Rejection | 40dB矩形系数≤2.2 |
| Number of switching filters | Choose one out of seven |
| Switch time | ns |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Power | 30dBm Design assurance |
| Working voltage | +5V |
| Work Temp. | -40~+75℃ |
| Control | TTL（控制接口：DB-9) |
| Other | 1脚+5V；2脚接地；3,4,5,6,脚为控制；7,8,9脚为空 |
| 3脚 | 4脚 | 5脚 | 6脚 | ||
|---|---|---|---|---|---|
| Frequency 1 | 0 | 0 | 0 | 0 | |
| Frequency 2 | 0 | 0 | 1 | 0 | |
| Frequency 3 | 1 | 0 | 1 | 0 | |
| Frequency 4 | 0 | 1 | 1 | 0 | |
| Frequency 5 | 1 | 1 | 1 | 0 | |
| Frequency 6 | 0 | 0 | 0 | 1 | |
| Frequency 7 | 0 | 0 | 1 | 1 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
