Number of switching filtersfiveChoose one, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

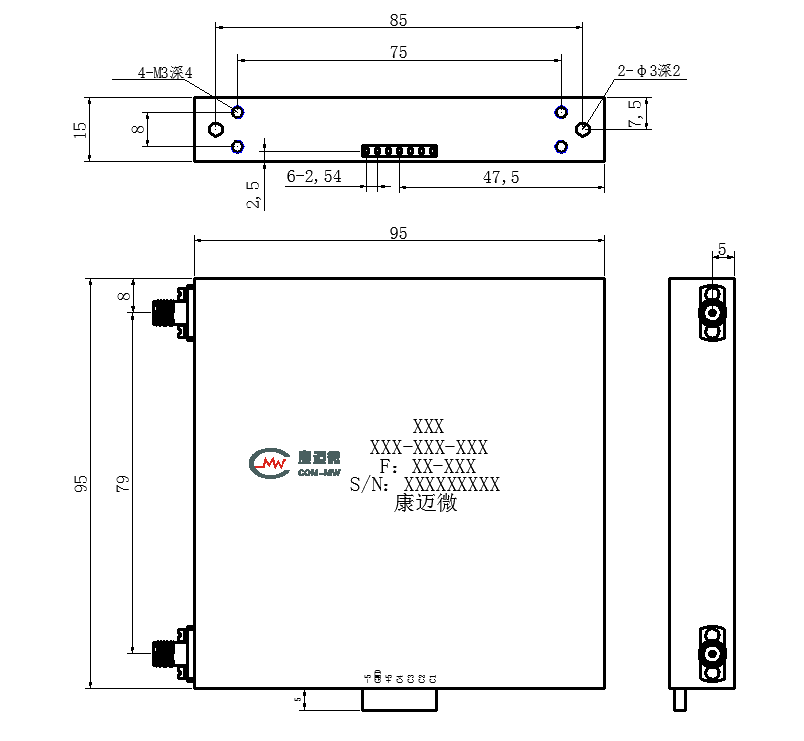

| Parameters | Units | |
|---|---|---|
| IL | 15 | dB |
| VSWR | 2.0 | |
| Passband F1 | 18900-23100 | MHz |
| F1 Rejection | DC-17400MHz≥50 | dB |
| F1 Rejection | 24600-40000MHz≥60 | dB |
| Passband F2 | 20900-25100 | MHz |
| F2 Rejection | DC-19400MHz≥50 | dB |
| F2 Rejection | 26600-40000MHz≥60 | dB |
| Passband F3 | 22900-27100 | MHz |
| F3 Rejection | DC-21400MHz≥50 | dB |
| F3 Rejection | 28600-40000MHz≥60 | dB |
| Passband F4 | 24900-29100 | MHz |
| F4 Rejection | DC-23400MHz≥50 | dB |
| F4 Rejection | 30600-40000MHz≥60 | dB |
| Passband F5 | 26900-31100 | MHz |
| F5 Rejection | DC-25400MHz≥50 | dB |
| F5 Rejection | 32600-40000MHz≥60 | dB |
| Number of switching filters | Choose one out of five |
| Switch time | 200ns |
| Ripple | 1.2dB（每个频段内任意2000MHz带宽）； |
| Isolation | 70dB |
| Connector | 2.92-F |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Product shell material | Aluminium |
| Working voltage | ±5V |
| Operation Temp. | -40~+75℃ |
| Storage Temp. | -55~+85℃ Design assurance |
| Control | TTL |
| Delay ripple | 2ns（每个频段内任意2000MHz带宽）； |
| Other | 盖板，接头位置均需密封，屏蔽 |
| C1 | C2 | C3 | C4 | C5 | |
|---|---|---|---|---|---|
| Frequency 1 | 0 | 0 | 0 | ||
| Frequency 2 | 0 | 0 | 1 | ||
| Frequency 3 | 0 | 1 | 0 | ||
| Frequency 4 | 0 | 1 | 1 | ||
| Frequency 5 | 1 | 0 | 0 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
