Number of switching filtersfiveChoose one, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

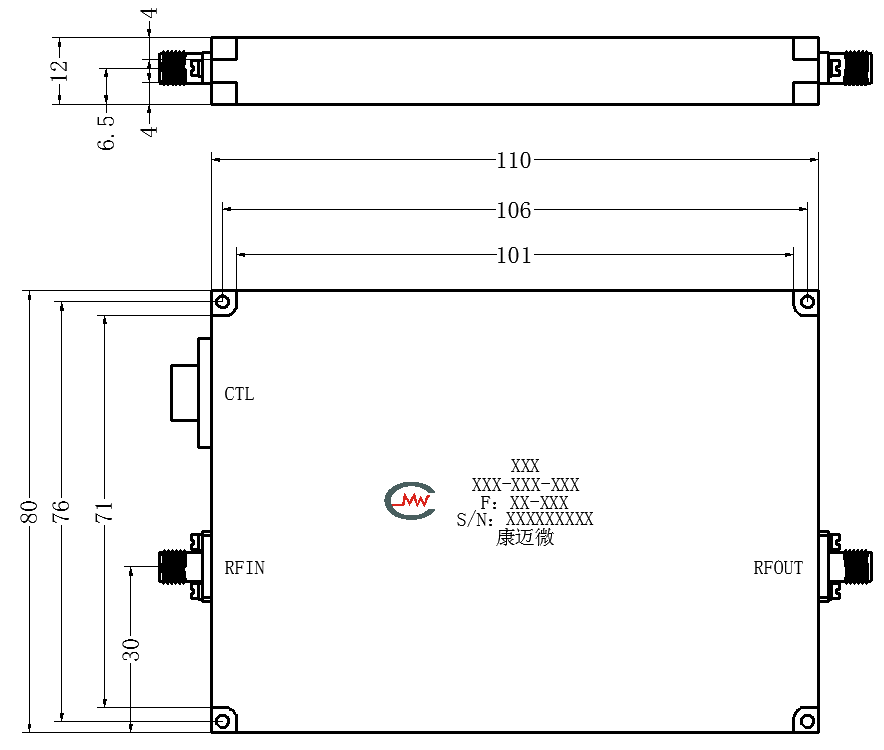

| Parameters | Units | |
|---|---|---|
| IL | 12 | dB |
| VSWR | 2.0 | |
| Passband F1 | 16-25 | GHz |
| F1 Rejection | 0.01-8GHz≥60；8-12.8GHz≥80；12.8-14GHz≥60 | dB |
| F1 Rejection | 28-33GHz≥70；36-45GHz≥60 | dB |
| Passband F2 | 21-30 | GHz |
| F2 Rejection | 0.01-8GHz≥60；8-12.8GHz≥80；12.8-19.5GHz≥60 | dB |
| F2 Rejection | 33-38GHz≥70；40.5-50GHz≥60 | dB |
| Passband F3 | 26-34 | GHz |
| F3 Rejection | 0.01-8GHz≥60；8-12.8GHz≥80；12.8-24GHz≥60 | dB |
| F3 Rejection | 38-42GHz≥70；46-50GHz≥60 | dB |
| Passband F4 | 30-38 | GHz |
| F4 Rejection | 0.01-8GHz≥60；8-12.8GHz≥80；12.8-28GHz≥60 | dB |
| F4 Rejection | 42-46GHz≥70；46-50GHz≥60 | dB |
| Passband F5 | 34-42 | GHz |
| F5 Rejection | 0.01-8GHz≥60；12.8-28GHz≥60 | dB |
| F5 Rejection | 46-50GHz≥70 | dB |
| Number of switching filters | Choose one out of five |
| Switch time | 150ns |
| Ripple | 2.0dB (any 4GHz bandwidth within each frequency band); |
| Isolation | 60dB |
| Connector | 2.92-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Power Capacity | 5W Design assurance |
| Product shell material | Aluminium |
| Working voltage | ±5V |
| Working current | +5V@400mA；-5V@100mA |
| Operation Temp. | -55~+85℃ |
| Storage Temp. | -55~+85℃ Design assurance |
| Control | TTL |
| Phase linearity | ± 45 ° (any 4GHz bandwidth within each frequency band); |
| Other | CTL Port：J30J-9ZKP |
| C1 | C2 | C3 | C4 | C5 | |
|---|---|---|---|---|---|
| Frequency 1 | 0 | 1 | 1 | 1 | 1 |
| Frequency 2 | 1 | 0 | 1 | 1 | 1 |
| Frequency 3 | 1 | 1 | 0 | 1 | 1 |
| Frequency 4 | 1 | 1 | 1 | 0 | 1 |
| Frequency 5 | 1 | 1 | 1 | 1 | 0 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
