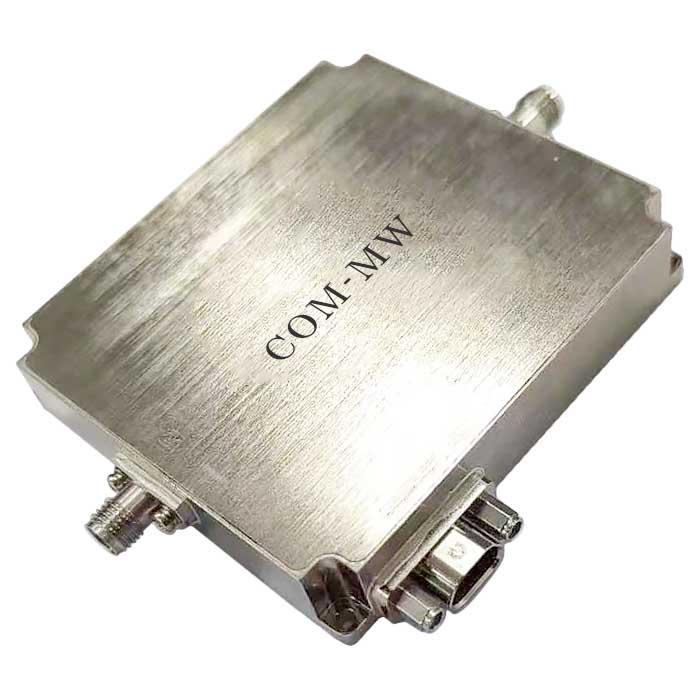

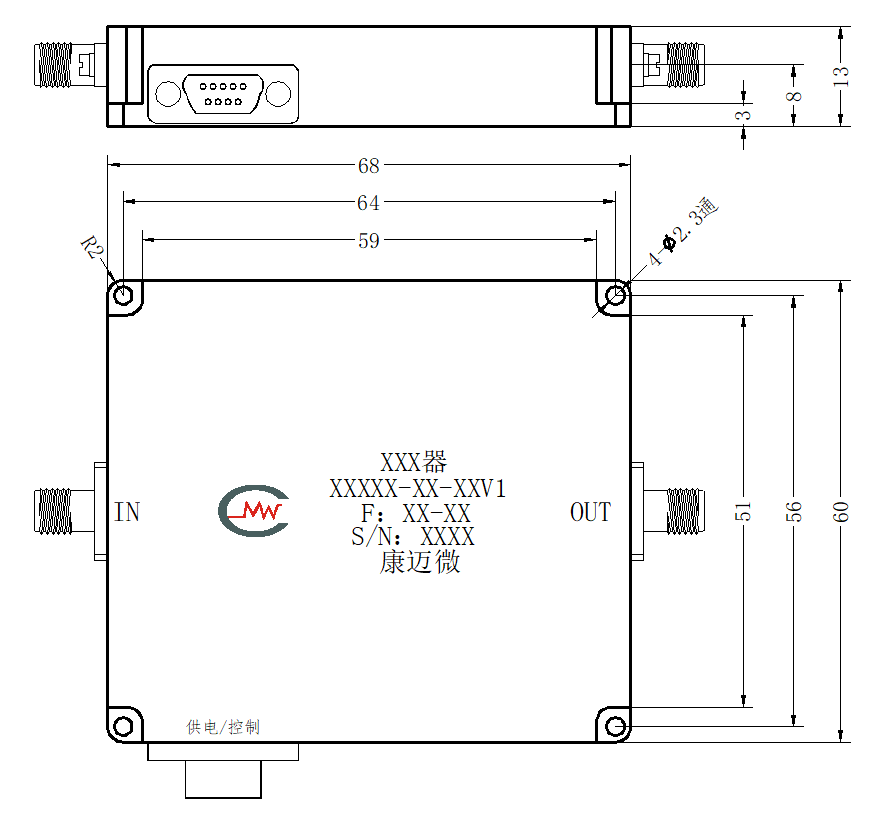

3-5GHz, 5-9GHz, 9-15GHz, 15-25GHz, four选一
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Units | |
|---|---|---|
| Passband F1 | 3-5 | GHz |
| Frequency 1 IL | ≤5.0 | dB |
| F1 Rejection | 6-25GHz≥35 | dB |
| F1 VSWR | 1.8 | |
| Passband F2 | 5-9 | GHz |
| Frequency 2 IL | ≤5.0 | dB |
| F2 Rejection | 10-25GHz≥35 | dB |
| F2 VSWR | 1.8 | |
| Passband F3 | 9-15 | GHz |
| F3 IL | ≤5.0 | dB |
| F3 Rejection | 18-40GHz≥35 | dB |
| F3 VSWR | 1.8 | |
| Passband F4 | 15-25 | GHz |
| Gain | ≥-5 | dB |
| F4 Rejection | 30-40GHz≥35 | dB |
| F4 VSWR | 2.0 |
| Number of switching filters | Choose 1 from 4 |
| Switch time | ns |
| Isolation | 35dB |
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Power | 1W Design assurance |
| Product shell material | Aluminium |
| Working voltage | +12V(J30J-9ZKP) |
| Work Temp. | -40~+75℃ |
| Storage Temp. | -55~+85℃ Design assurance |
| Control | RS485:波特率115200频率一:A5 12 00 00 00 00 AA频率二:A5 12 00 00 00 03 AA频率三:A5 12 00 00 00 04 AA频率四:A5 12 00 00 00 02 AA ID号:12 13 14 |
| Other | 通道四原理:均衡器+温补+放大器+滤波器 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
