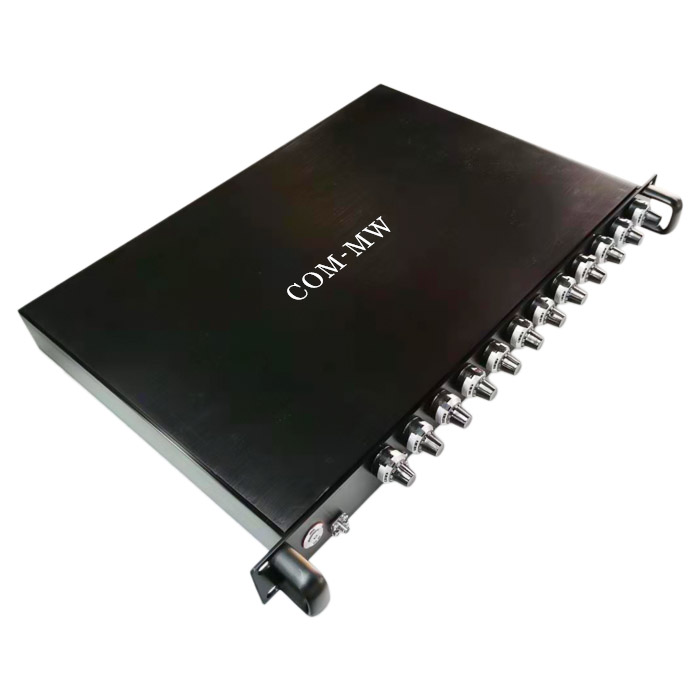

700~5800MHz, 2*10路, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 700 | ~ | 5800 | MHz |
| IL | 20 | dB | ||
| Amplitude Balance | ±2.0 | dB | ||
| Phase balance | ±8 | ° | ||
| Port switching phase stability | 1.0 | ° | ||
| Isolation | 60 | dB | ||
| VSWR | 1.6 |
| Switch way | 2*10路 |
| Switch time | 1ms |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power | 0.2W |
| Work Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| control interface | RJ45orRS-232 |
| 1 | 1 host |
| 2 | 1 set of test report or user /uploads/kmw-media/dsm8-700-5800-1971/manual/DSM8-700-5800-1971@2023-09-02-18-38-02.pdf |
| 3 | 1 AC power cord |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
