Product features

Broadband, high power, with port indication

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	DC	~	26.5	GHz
IL			0.9@6GHz	dB
IL			1.4@12GHz	dB
IL			1.7@18GHz	dB
IL			2.4@26.5GHz	dB
Isolation	70@6GHz			dB
Isolation	60@18GHz			dB
Isolation	55@26.5GHz			dB
VSWR			1.50@6GHz
VSWR			1.60@12GHz
VSWR			1.70@18GHz
VSWR			1.90@26.5GHz
Power Capacity			80@6GHz	W
Power Capacity			60@12GHz	W
Power Capacity			50@18GHz	W
Power Capacity			15@26.5GHz	W

Other parameters

Switch time	15ms
Switch way	SP12T
Connector	SMA-K
Connector material	Stainless steel
Impedance	50Ω
Working voltage	+24V
Working current	Select a single channel current of 400mA
Operation Temp.	-25~+65℃ Design assurance
Storage Temp.	-40~+85℃ Design assurance
Switching Lifetime	2 million Cycles
Control	RJ-45 Control, USB Control.

Port Definition

Branching port	J1,J2,J3,J4,J5,J6,J7,J8,J9,J10,J11,J12
Common port	J0

Description of the network port system

1、The device defaults as a TCP/ip server；

2、Default IP address: 192.168.1.100；

3、Default port number: 1000;

Network port control command

Panel K1-1 represents Channel 1	AA 01 00 00 00 00 00 55
Panel K1-2 represents Channel 2	AA 02 00 00 00 00 00 55
Panel K1-3 represents Channel 3	AA 03 00 00 00 00 00 55
Panel K1-4 represents Channel 4	AA 04 00 00 00 00 00 55
Panel K1-5 represents Channel 5	AA 05 00 00 00 00 00 55
Panel K1-6 represents Channel 6	AA 06 00 00 00 00 00 55
面板K2-1代表通道7	AA 07 00 00 00 00 00 55
面板K2-2代表通道8	AA 08 00 00 00 00 00 55
面板K2-3代表通道9	AA 09 00 00 00 00 00 55
面板K2-4代表通道10	AA 10 00 00 00 00 00 55
面板K2-5代表通道11	AA 11 00 00 00 00 00 55
面板K2-6代表通道12	AA 12 00 00 00 00 00 55
Query the current instruction	AA 00 01 00 00 00 00 55

Product Description

This product provides upper computer control software and instructions for use. Both the network port and USB-B can be controlled using the upper computer, and the network port can also be controlled through commands.

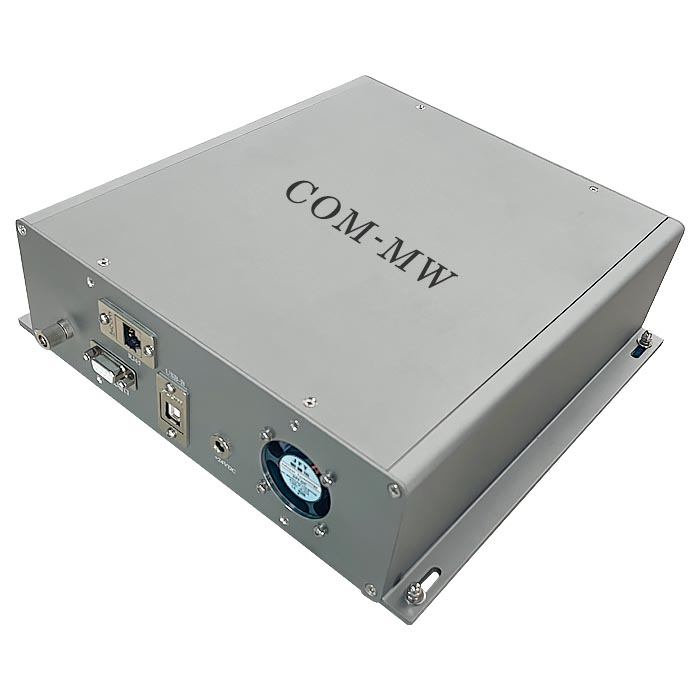

Reference picture

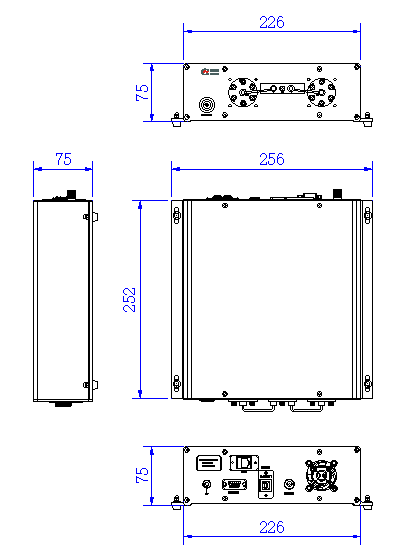

Configuration(mm)

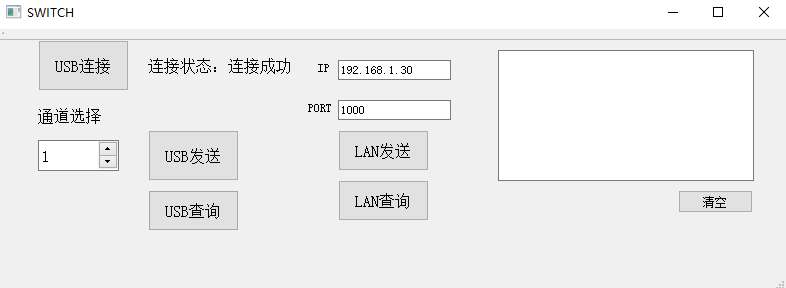

Upper computer interface

Note

1	Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
2	If the temperature is higher than 125℃, consult with us before ordering.

Switch matrix DSM8-0-26.5G-4174
