DC~1GHz, Choose one from two options in 8 groups, programmed switch, SMA-K, Network port control
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
The switching life of the switch is greater than 2 million times.
Touch screen display, supporting /uploads/kmw-media/dsm8-0-1g-9436/manual/DSM8-0-1G-9436@2026-07-19-17-21-17.pdf channel switching.

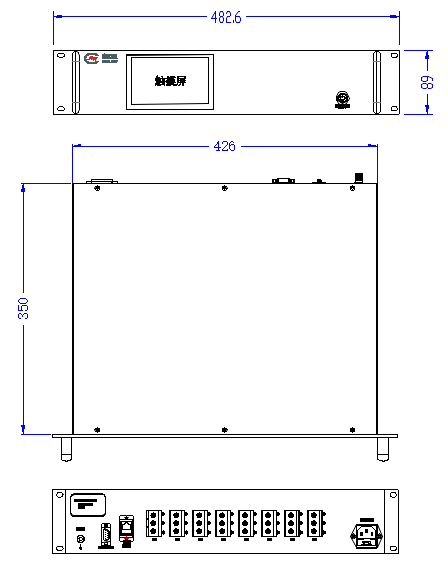

Standard 19 inch chassis.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 1 | GHz |
| IL | 0.4 | dB | ||
| Isolation | 70 | dB | ||
| VSWR | 1.40 |
| Switch way | Choose one from two options in 8 groups |
| Switching characteristic | Mechanical reflective programmable switch |
| Switch time | 15ms |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power Capacity | 40W Design assurance |
| Working voltage | +220V |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Network port control |
1. Set the PC IP address to 192.168.1.100, subnet mask to 255.255.255.0, and default gateway to 192.168.1.1
2. Select TCP Server as the protocol type, 192.168.1.100 as the local host address, set the local host port to 1000, and 192.168.1.30:1000 as the remote host
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
