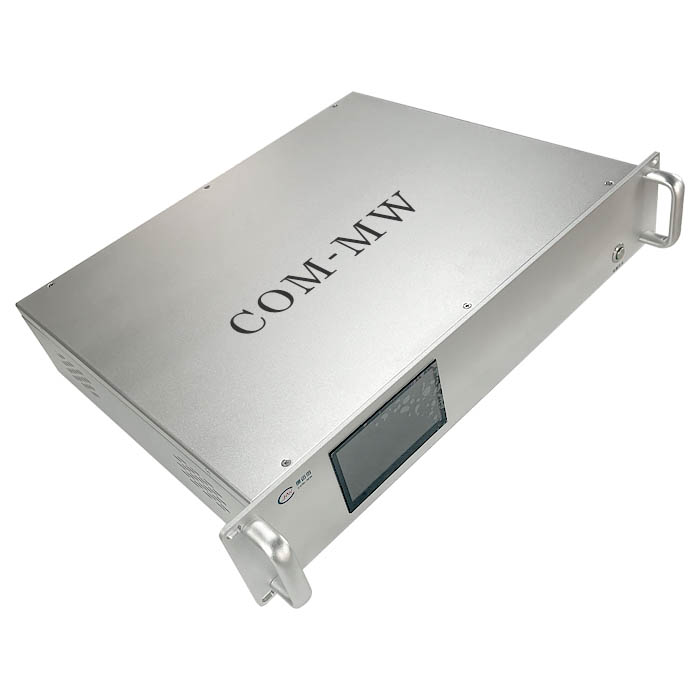

DC~18000MHz, Choose one out of six groups, programmed switch, SMA-K, Supports network port and display control, providing controllable 16 sets of+27V power supply (maximum current of 200mA per set)
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
The switching life of the switch is greater than 2 million times.
Touch screen display, supporting /uploads/kmw-media/dsm8-0-18g-3888/manual/DSM8-0-18G-3888@2025-05-04-16-28-17.pdf channel switching.

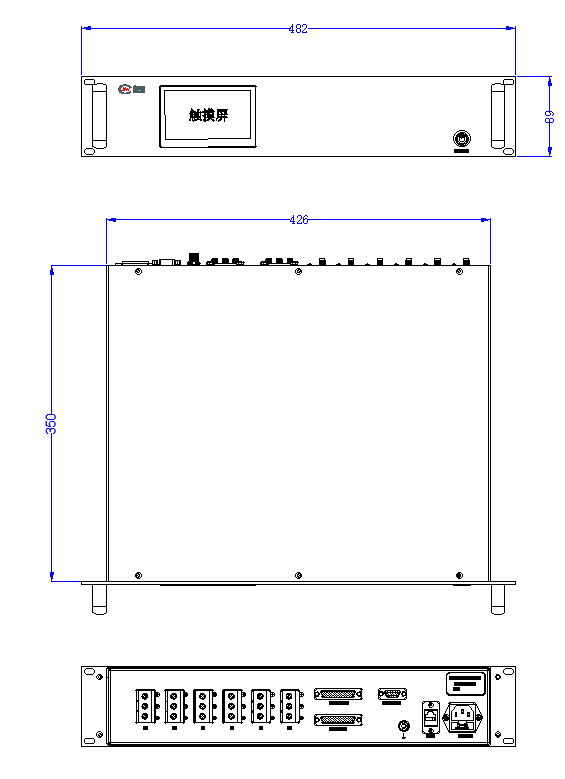

Standard 19 inch chassis.

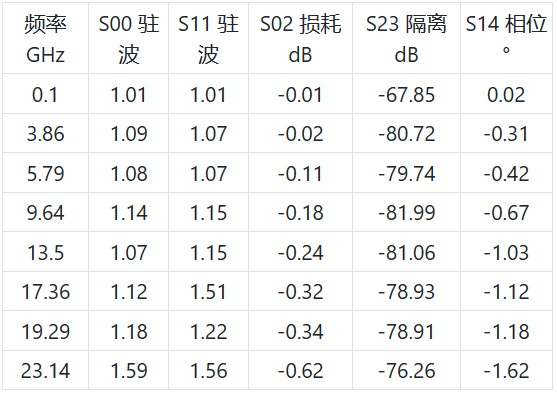

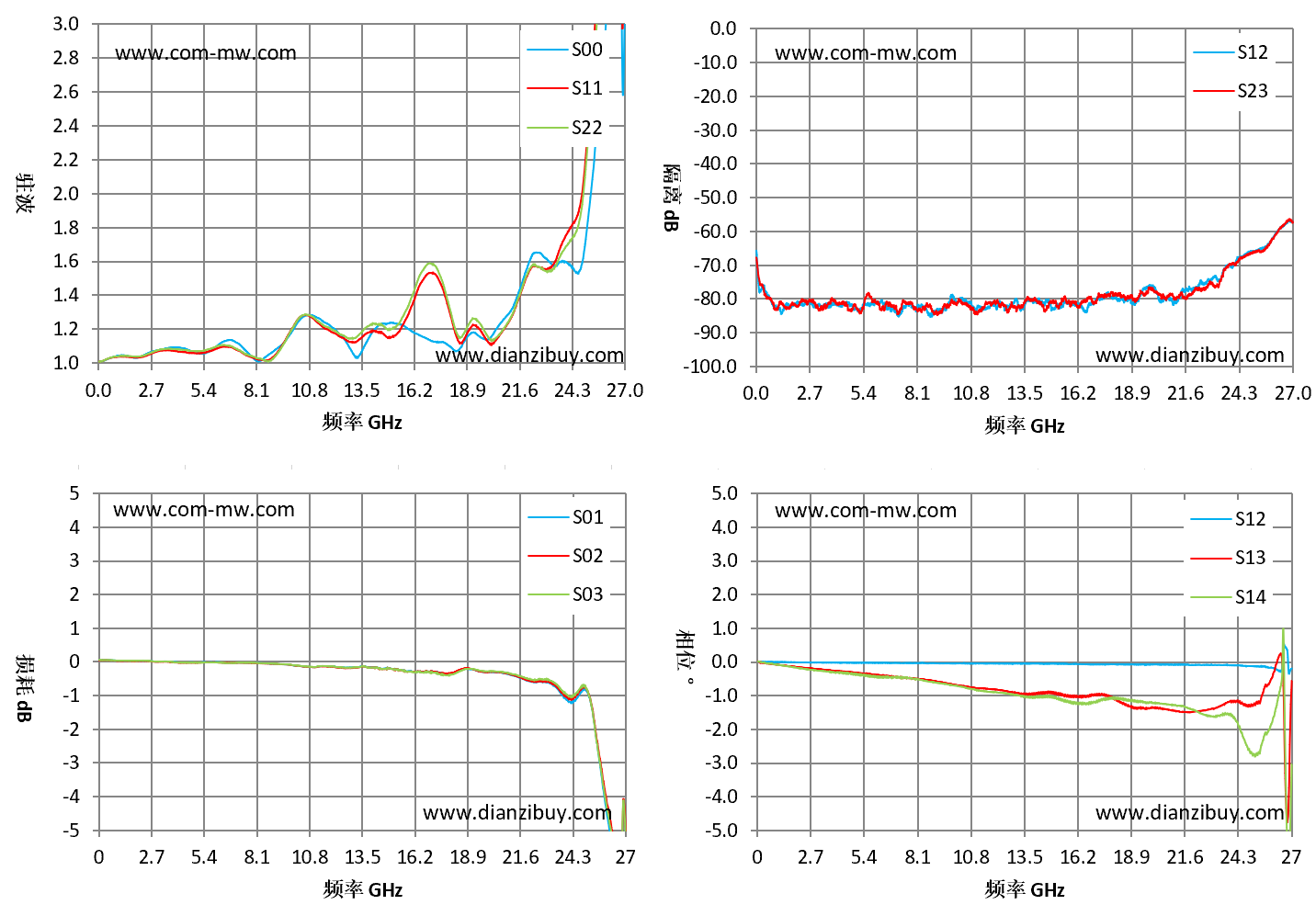

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 18000 | MHz |
| IL | 0.3 | 0.5 | dB | |
| Isolation | 60 | 70 | dB | |
| VSWR | 1.3 | 1.5 |
| Switch way | Choose one out of six groups |
| Switching characteristic | Mechanical reflective programmable switch |
| Switch time | 15ms |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power Capacity | 100W@3GHz；80W@6GHz；40W@18GHzW |
| Working voltage | +220V |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Supports network port and display control, providing controllable 16 sets of+27V power supply (maximum current of 200mA per set) |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
