DC~18000MHz, Two groups of six choose one, six groups of two choose one, programmed switch, SMA-K, Support network port and display screen control
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
The switching life of the switch is greater than 2 million times.
Touch screen display, supporting /uploads/kmw-media/dsm8-0-18g-3812/manual/DSM8-0-18G-3812@2024-12-22-10-21-35.pdf channel switching.

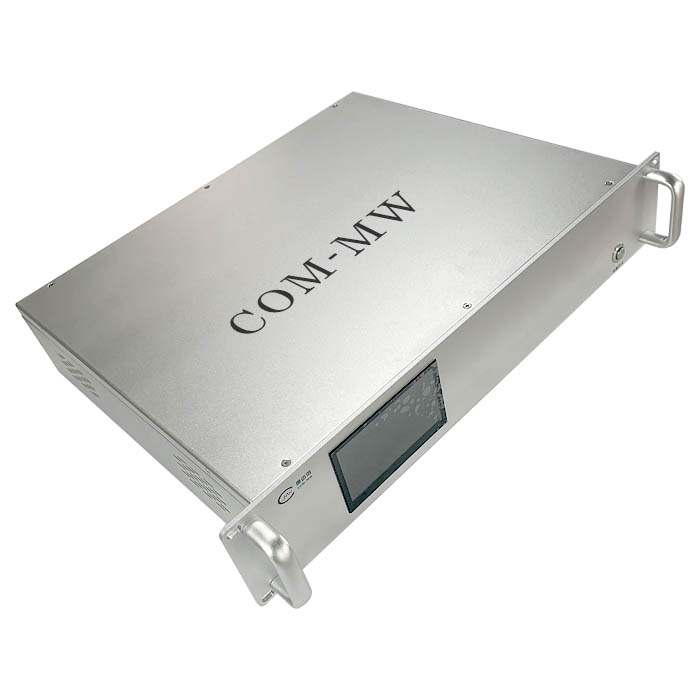

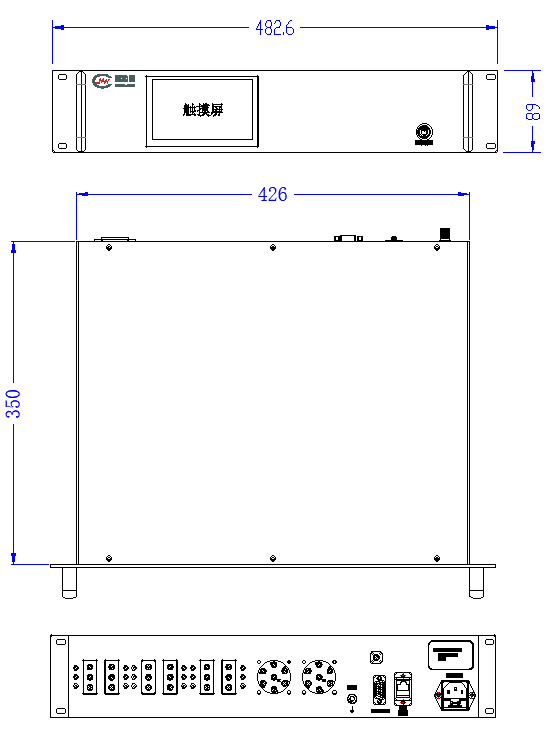

Standard 19 inch chassis.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 18000 | MHz |
| IL | 0.3 | 0.5 | dB | |
| Isolation | 60 | 70 | dB | |
| VSWR | 1.3 | 1.5 |
| Switch way | Two groups of six choose one, six groups of two choose one |
| Switching characteristic | Mechanical reflective programmable switch |
| Switch time | 15ms |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power Capacity | 100W@3GHz；80W@6GHz；40W@18GHzW |
| Working voltage | +220V |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Support network port and display screen control |
| Switch | control command | |
|---|---|---|
| Panel K1-1 | SET:K1_1:0A | |
| 面板K1-2 | SET:K1_2:0A | |
| Panel K2-1 | SET:K2_1:0A | |
| 面板K2-2 | SET:K2_2:0A | |
| Panel K3-1 | SET:K3_1:0A | |
| 面板K3-2 | SET:K3_2:0A | |
| 面板K4-1 | SET:K4_1:0A | |
| 面板K4-2 | SET:K4_2:0A | |
| 面板K5-1 | SET:K5_1:0A | |
| 面板K5-2 | SET:K5_2:0A | |
| 面板K6-1 | SET:K6_1:0A | |
| 面板K6-2 | SET:K6_2:0A | |
| 面板K7-1 | SET:K7_1:0A | |
| 面板K7-2 | SET:K7_2:0A | |
| 面板K7-3 | SET:K7_3:0A | |
| 面板K7-4 | SET:K7_4:0A | |
| 面板K7-5 | SET:K7_5:0A | |
| 面板K7-6 | SET:K7_6:0A | |
| 面板K8-1 | SET:K8_1:0A | |
| 面板K8-2 | SET:K8_2:0A | |
| 面板K8-3 | SET:K8_3:0A | |
| 面板K8-4 | SET:K8_4:0A | |
| 面板K8-5 | SET:K8_5:0A | |
| 面板K8-6 | SET:K8_6:0A | |
| 3811-K1-1,K2-1 | SET:C1_1:0A | |
| 3811-K1-2,K2-2 | SET:C1_2:0A |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
