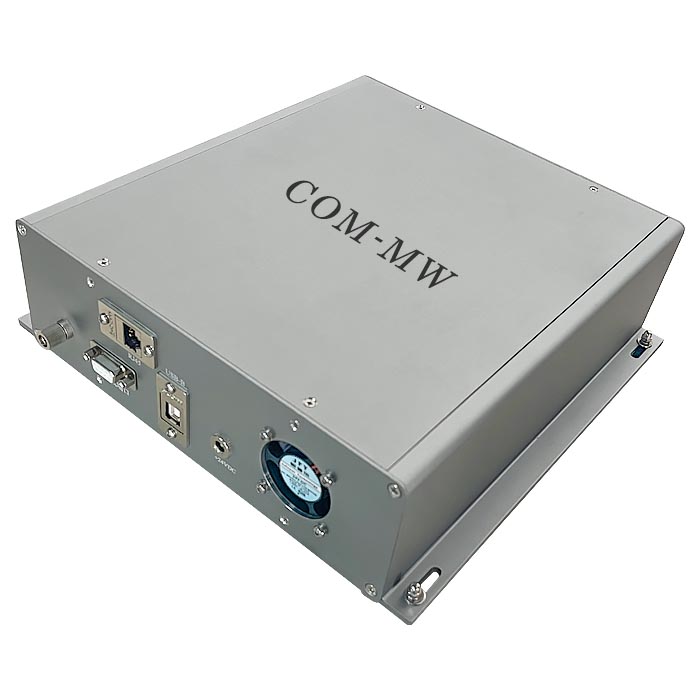

DC~18GHz, SP16T, SMA-K, RJ-45 Control, USB Control.
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high power, with port indication
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 18 | GHz |
| IL | 0.9@6GHz | dB | ||
| IL | 1.3@12GHz | dB | ||
| IL | 1.6@18GHz | dB | ||
| Isolation | 70@6GHz | dB | ||
| Isolation | 60@12GHz | dB | ||
| Isolation | 50@18GHz | dB | ||
| VSWR | 1.50@6GHz | |||
| VSWR | 1.60@12GHz | |||
| VSWR | 1.70@18GHz | |||
| Power Capacity | 80@6GHz | W | ||
| Power Capacity | 60@12GHz | W | ||
| Power Capacity | 50@18GHz | W |
| Switch time | 15ms |
| Switch way | SP16T |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +24V |
| Working current | Select a single channel current of 400mA |
| Operation Temp. | -25~+65℃ Design assurance |
| Storage Temp. | -40~+85℃ Design assurance |
| Switching Lifetime | 2 million Cycles |
| Control | RJ-45 Control, USB Control. |
| Branching port | J1,J2,J3,J4,J5,J6,J7,J8,J9,J10,J11,J12,J13,J14,J15,J16 |
| Common port | J0 |
1、The device defaults as a TCP/ip server；
2、Default IP address: 192.168.1.100；
3、Default port number: 1000;
| Panel K1-1 represents Channel 1 | AA 01 00 00 00 00 00 55 | |
|---|---|---|
| Panel K1-2 represents Channel 2 | AA 02 00 00 00 00 00 55 | |
| Panel K1-3 represents Channel 3 | AA 03 00 00 00 00 00 55 | |
| Panel K1-4 represents Channel 4 | AA 04 00 00 00 00 00 55 | |
| Panel K1-5 represents Channel 5 | AA 05 00 00 00 00 00 55 | |
| Panel K1-6 represents Channel 6 | AA 06 00 00 00 00 00 55 | |
| Panel K1-7 represents Channel 7 | AA 07 00 00 00 00 00 55 | |
| Panel K1-8 represents Channel 8 | AA 08 00 00 00 00 00 55 | |
| Panel K2-1 represents Channel 9 | AA 09 00 00 00 00 00 55 | |
| Panel K2-2 represents Channel 10 | AA 10 00 00 00 00 00 55 | |
| Panel K2-3 represents Channel 11 | AA 11 00 00 00 00 00 55 | |
| Panel K2-4 represents Channel 12 | AA 12 00 00 00 00 00 55 | |
| Panel K2-5 represents Channel 13 | AA 13 00 00 00 00 00 55 | |
| Panel K2-6 represents Channel 14 | AA 14 00 00 00 00 00 55 | |
| Panel K2-7 represents Channel 15 | AA 15 00 00 00 00 00 55 | |
| Panel K2-8 represents Channel 16 | AA 16 00 00 00 00 00 55 | |
| Query the current instruction | AA 00 01 00 00 00 00 55 |

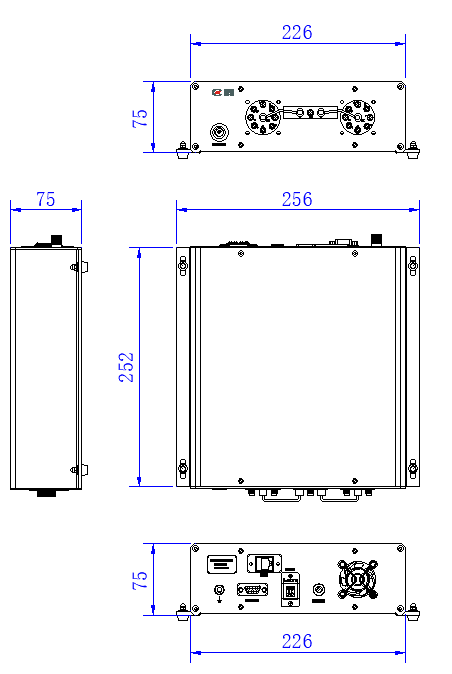

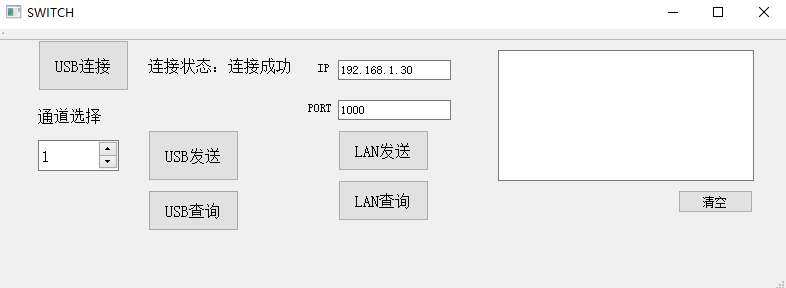

This product provides upper computer control software and instructions for use. Both the network port and USB-B can be controlled using the upper computer, and the network port can also be controlled through commands.

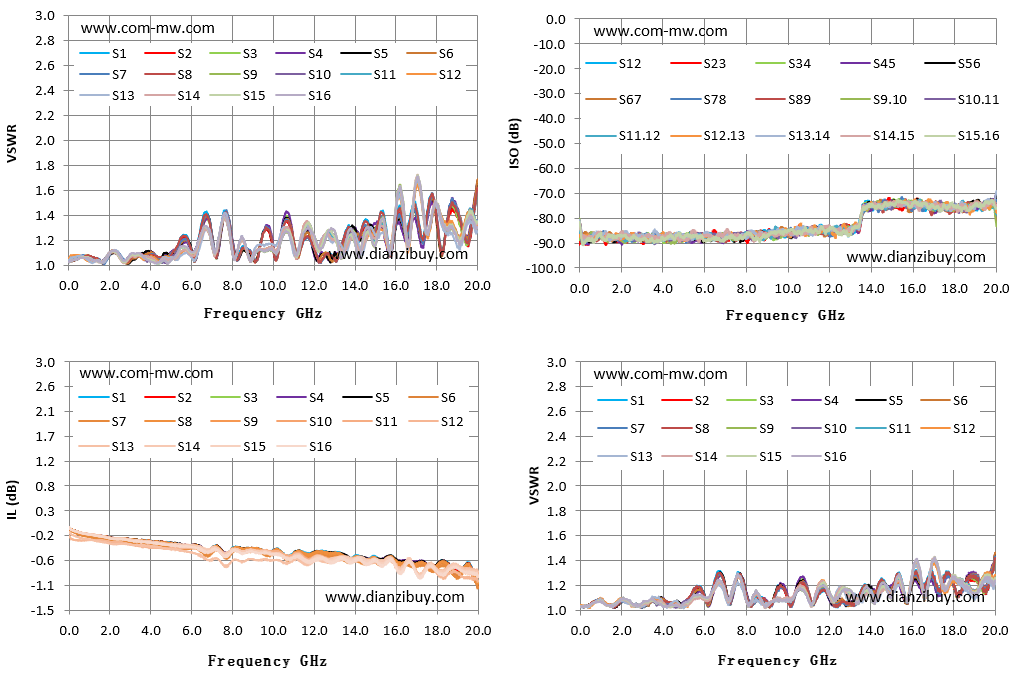

| Frequency GHz | S1 VSWR | S16 驻波 | S1 IL dB | S5 IL dB | S8 IL dB | S13 IL (dB) | S16 IL dB | S78 ISO dB |
|---|---|---|---|---|---|---|---|---|
| 0.01 | 1.03 | 1.03 | -0.01 | -0.01 | -0.01 | -0.08 | -0.08 | -83.9 |
| 1.43 | 1.05 | 1.03 | -0.15 | -0.15 | -0.15 | -0.26 | -0.16 | -88.2 |
| 5.71 | 1.24 | 1.15 | -0.33 | -0.33 | -0.33 | -0.44 | -0.35 | -86.6 |
| 8.57 | 1.15 | 1.2 | -0.39 | -0.39 | -0.39 | -0.62 | -0.47 | -86.7 |
| 10 | 1.14 | 1.12 | -0.42 | -0.42 | -0.42 | -0.6 | -0.5 | -86.0 |
| 12.86 | 1.09 | 1.3 | -0.47 | -0.47 | -0.47 | -0.6 | -0.64 | -83.9 |
| 15.71 | 1.1 | 1.1 | -0.53 | -0.52 | -0.53 | -0.56 | -0.59 | -74.1 |
| 18.57 | 1.39 | 1.29 | -0.66 | -0.68 | -0.69 | -0.7 | -0.77 | -76.4 |
| 20 | 1.61 | 1.3 | -0.99 | -1.06 | -1.03 | -0.81 | -0.89 | -72.8 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
