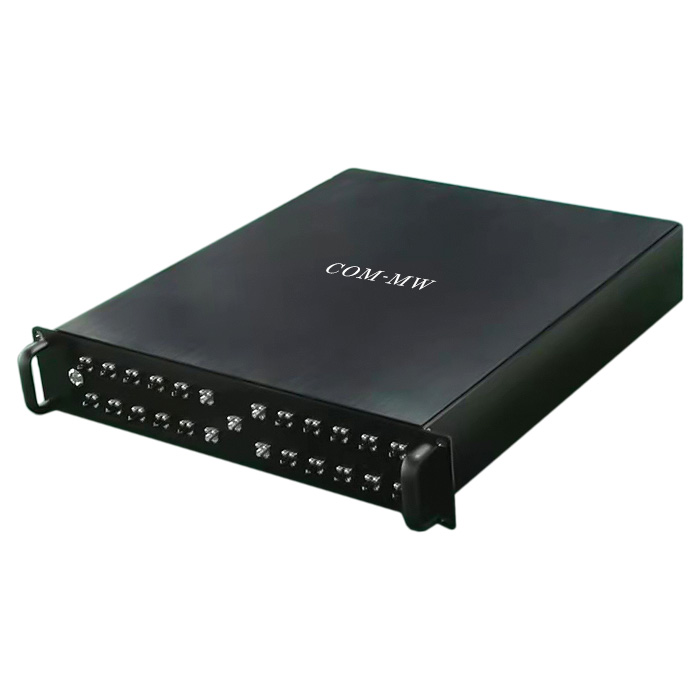

DC~18GHz, 1*24 Way, Reflective, 20ms, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 18 | GHz |
| IL | 2@8GHz；3@18GHz | dB | ||
| Isolation | 65 | dB | ||
| VSWR | 1.5@8GHz；2@18GHz |
| Switch way | 1*24 Way |
| Switching characteristic | Reflective switch |
| Switch time | 20ms |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black |
| Power Capacity | 60W@6GHz；20W@18GHz。 |
| Working voltage | +220V |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Control port | RJ-45 |
| Switching Lifetime | 1 million Cycles |

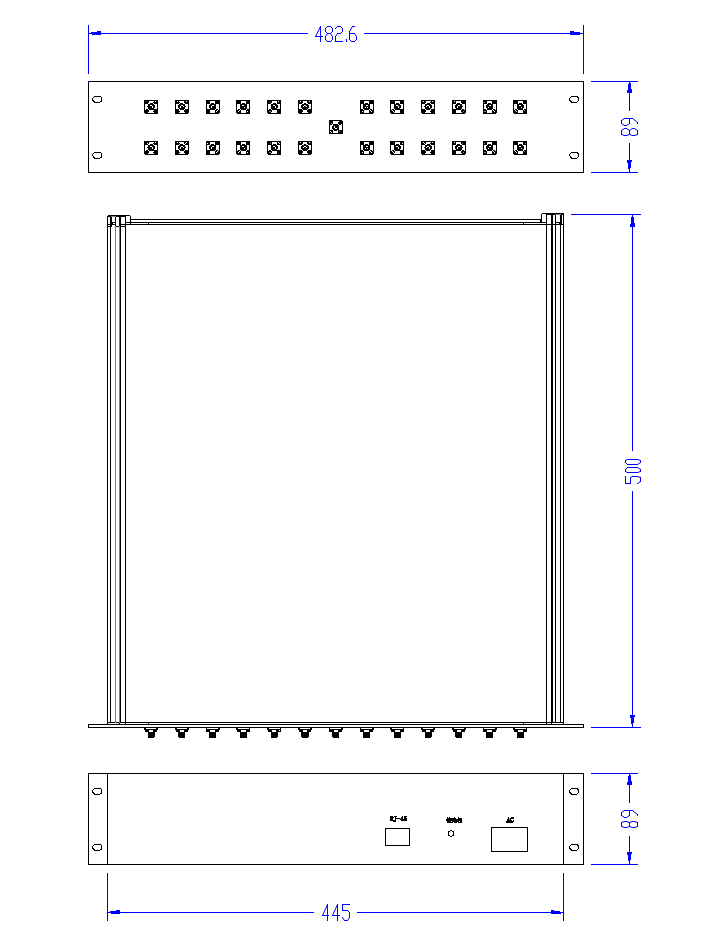

| Other | 25 RF ports and power switches are placed on the front panel, while the RJ-45 port and AC interface are placed on the rear panel. |
| 1 | 1 host |
| 2 | 1 AC power cord |
| 3 | 1 set of test report or user /uploads/kmw-media/dsm8-0-18000-3018/manual/DSM8-0-18000-3018@2025-07-20-08-12-55.pdf |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
