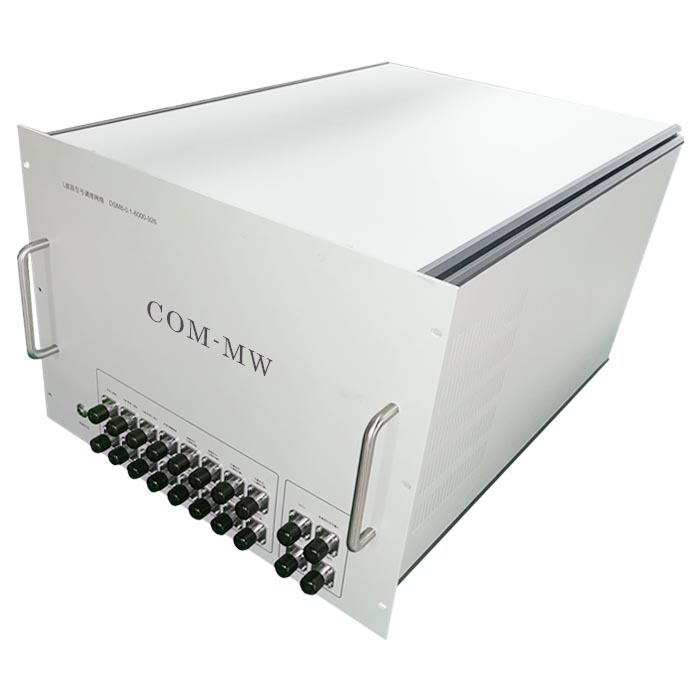

DC~10000MHz, 10*36路, Reflective, 20ms, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 10000 | MHz |
| IL | 4 | dB | ||
| Isolation | 60 | dB | ||
| VSWR | 2 |
| Switch way | 10*36路 |
| Switching characteristic | Reflective switch |
| Switch time | 20ms |
| Connector | N-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power | 40W Design assurance |
| Working voltage | +220V |
| Work Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| control interface | RJ-45 |
| Switching Lifetime | 1 million Cycles |

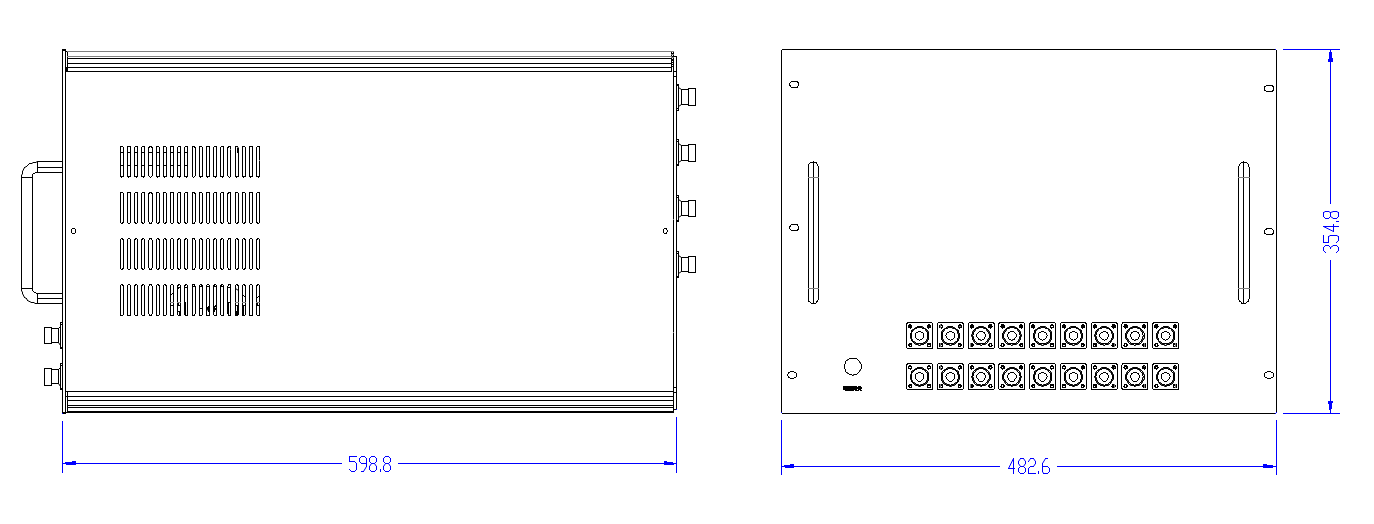

| Other | 10 RF ports and power switches are placed on the front panel, while 36 RF interfaces, RJ-45, and AC interfaces are placed on the rear panel. |
| 1 | 1 host |
| 2 | 1 AC power cord |
| 2 | 1 set of test report or user /uploads/kmw-media/dsm8-0-10000-1172/manual/DSM8-0-10000-1172@2023-09-02-17-56-00.pdf |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
