DC~17.1GHz, 18.9~28.5GHz, 31.5~45GHz, 18±2%GHz, 30±2%GHz, 2.4
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | DC | ~ | 17.1 | GHz |
| Passband F2 | / | / | 18.9 | ~ | 28.5 | GHz |
| Passband F3 | / | / | 31.5 | ~ | 45 | GHz |
| Cross frequency one | / | / | 18±2% | GHz | ||
| Cross frequency two | / | / | 30±2% | GHz | ||
| Passband VSWR | 2 | |||||
| Passband IL | 2 | dB | ||||
| Cross frequency loss | 7 | dB | ||||
| Band 1 Rejection | 21-45 | GHz≥ | 60 | dB | ||
| band 2 Rejection | DC-16 | GHz≥ | 50 | dB | ||
| band 2 Rejection | 33-45 | GHz≥ | 40 | dB | ||
| band 3 Rejection | DC-27 | GHz≥ | 40 | dB |
| Connector | 2.4-F or K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 2W Design assurance |
| Shell Material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |

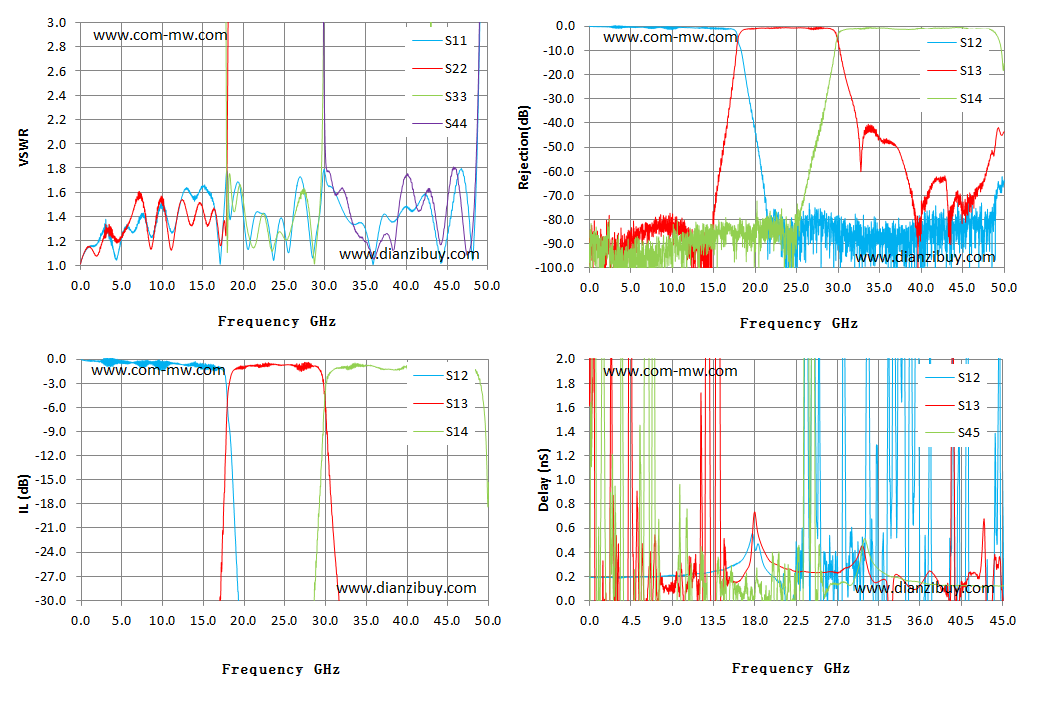

| Frequency GHz | S11 VSWR | S22 VSWR | S33 VSWR | S44 VSWR | S12 IL (dB) | S13 IL (dB) | S14 IL dB | S12 Rejection | S13 Rej. dB | S14 抑制dB | S12 Delay (ns) | S13 delay ns | S45 时延ns |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.03 | 1.02 | 1.02 | 297.57 | 246.37 | -0.05 | -92.77 | -89.82 | -0.05 | -92.77 | -89.82 | 0.19 | 1.64 | -1.89 |
| 3.60 | 1.26 | 1.30 | 100.24 | 84.31 | -0.94 | -97.84 | -98.81 | -0.94 | -97.84 | -98.81 | 0.19 | -2.99 | 3.56 |
| 7.17 | 1.36 | 1.55 | 175.20 | 203.41 | -0.62 | -82.51 | -88.44 | -0.62 | -82.51 | -88.44 | 0.20 | 0.54 | 0.75 |
| 10.74 | 1.37 | 1.28 | 45.09 | 63.33 | -0.30 | -86.38 | -88.24 | -0.30 | -86.38 | -88.24 | 0.22 | 0.15 | 0.34 |
| 14.31 | 1.55 | 1.46 | 88.61 | 53.51 | -0.48 | -102.83 | -94.17 | -0.48 | -102.83 | -94.17 | 0.25 | 0.01 | 0.05 |
| 17.88 | 1.72 | 1.25 | 3.05 | 178.87 | -3.86 | -7.20 | -84.94 | -3.86 | -7.20 | -84.94 | 0.53 | 0.66 | -0.07 |
| 21.45 | 1.42 | 61.27 | 1.16 | 42.97 | -75.74 | -0.87 | -78.60 | -75.74 | -0.87 | -78.60 | -0.48 | 0.26 | 0.03 |
| 25.02 | 1.31 | 38.08 | 1.22 | 101.94 | -86.31 | -0.70 | -79.11 | -86.31 | -0.70 | -79.11 | 2.95 | 0.23 | 0.46 |
| 28.58 | 1.07 | 135.03 | 1.11 | 17.42 | -82.91 | -0.85 | -30.86 | -82.91 | -0.85 | -30.86 | 0.61 | 0.29 | 0.13 |
| 32.15 | 1.46 | 32.47 | 24.15 | 1.64 | -88.80 | -37.67 | -0.89 | -88.80 | -37.67 | -0.89 | -1.07 | 0.18 | 0.23 |
| 35.72 | 1.08 | 29.97 | 23.84 | 1.11 | -98.09 | -47.46 | -0.85 | -98.09 | -47.46 | -0.85 | 3.31 | 0.10 | 0.16 |
| 39.29 | 1.43 | 209.68 | 29.31 | 1.57 | -84.80 | -76.61 | -1.10 | -84.80 | -76.61 | -1.10 | 0.37 | -0.17 | 0.12 |
| 42.86 | 1.51 | 32.49 | 6.38 | 1.63 | -82.20 | -62.78 | -0.88 | -82.20 | -62.78 | -0.88 | -3.94 | 0.55 | 0.11 |
| 46.43 | 1.75 | 25.56 | 38.97 | 1.66 | -82.36 | -70.36 | -1.37 | -82.36 | -70.36 | -1.37 | -0.80 | 0.10 | 0.11 |
| 50.00 | 8.34 | 87.72 | 22.68 | 13.71 | -63.55 | -43.55 | -15.30 | -63.55 | -43.55 | -15.30 | 0.49 | 0.27 | -0.77 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
