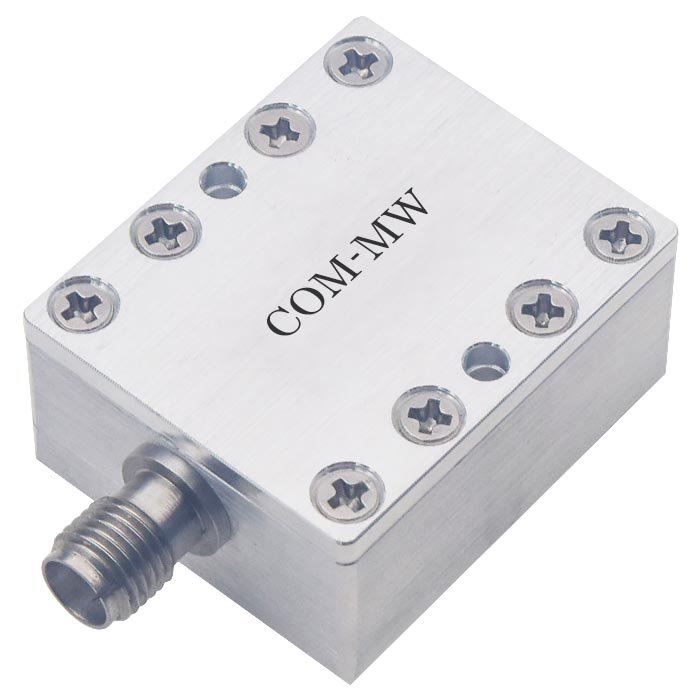

Mismatched load frequency4~5GHz, 5W, 50Ω, SMA-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Mismatched load frequency | 4 | ~ | 5 | GHz |
| VSWR | 2.5 |
| Power | 5W Design assurance |
| Impedance | 50Ω |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
When installing the load, it is necessary to consider sufficient heat dissipation space and not install it next to equipment with high heat output.

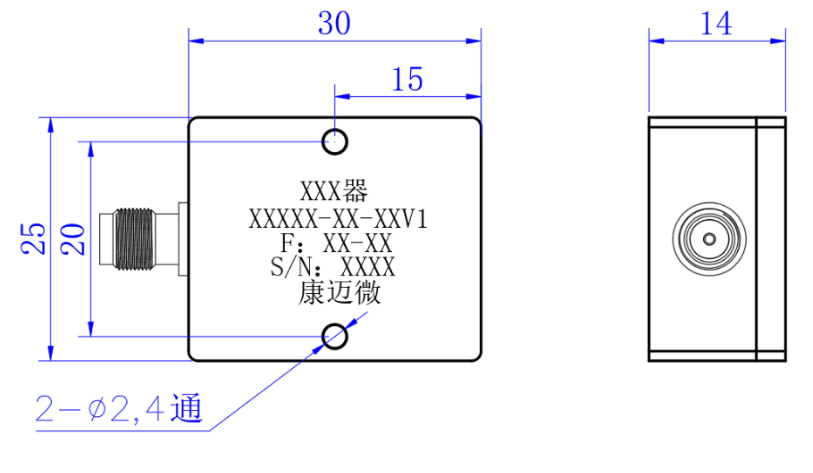

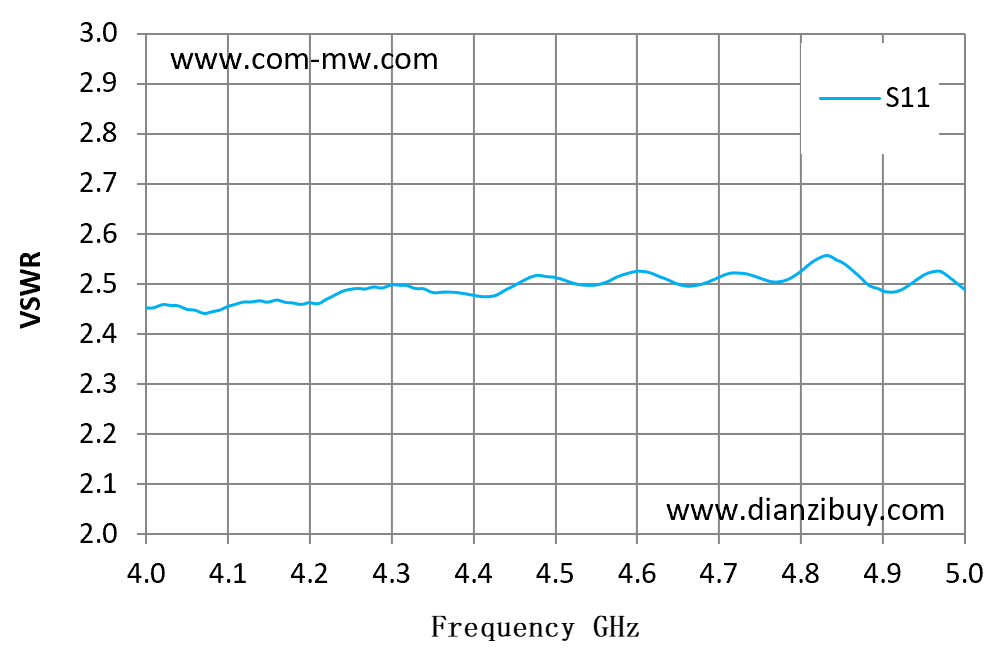

| No. | Frequency GHz | S11 VSWR |
|---|---|---|
| 1 | 4 | 2.45 |
| 2 | 4.07 | 2.44 |
| 3 | 4.14 | 2.47 |
| 4 | 4.21 | 2.46 |
| 5 | 4.29 | 2.49 |
| 6 | 4.36 | 2.48 |
| 7 | 4.43 | 2.48 |
| 8 | 4.5 | 2.51 |
| 9 | 4.57 | 2.51 |
| 10 | 4.64 | 2.51 |
| 11 | 4.71 | 2.52 |
| 12 | 4.79 | 2.51 |
| 13 | 4.86 | 2.53 |
| 14 | 4.93 | 2.49 |
| 15 | 5 | 2.49 |
