Small volume, wide temperature range.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 800 | ~ | 1000 | MHz |

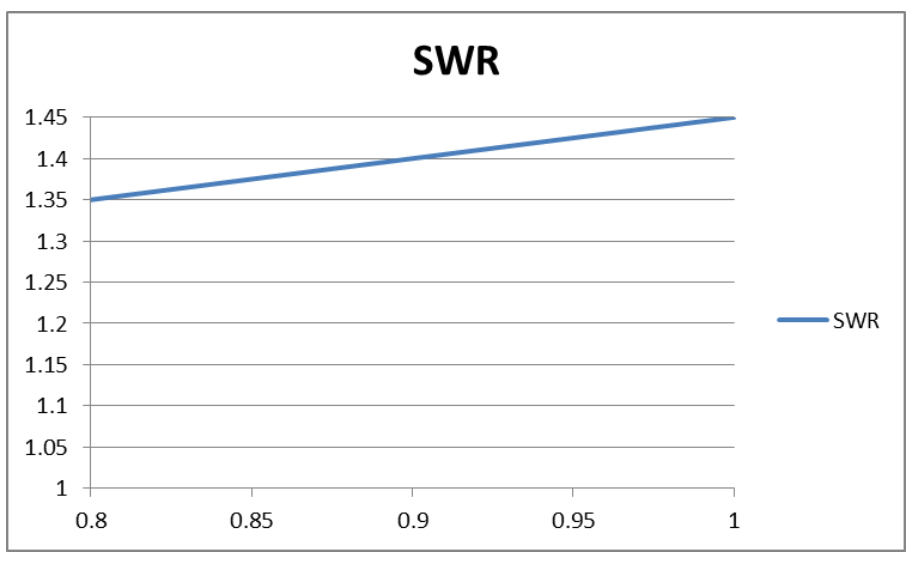

| VSWR | 1.35 | 1.4 | 1.45 |
| Power | 2W |
| Impedance | Mismatched load |
| Connector | N -K |
| Surface | White |
| Product shell material | Aluminium |
| Work Temp. | -40~+85℃ Design assurance |
Heat dissipation space is needed for installing the load, far away from the equipment with large heat output
