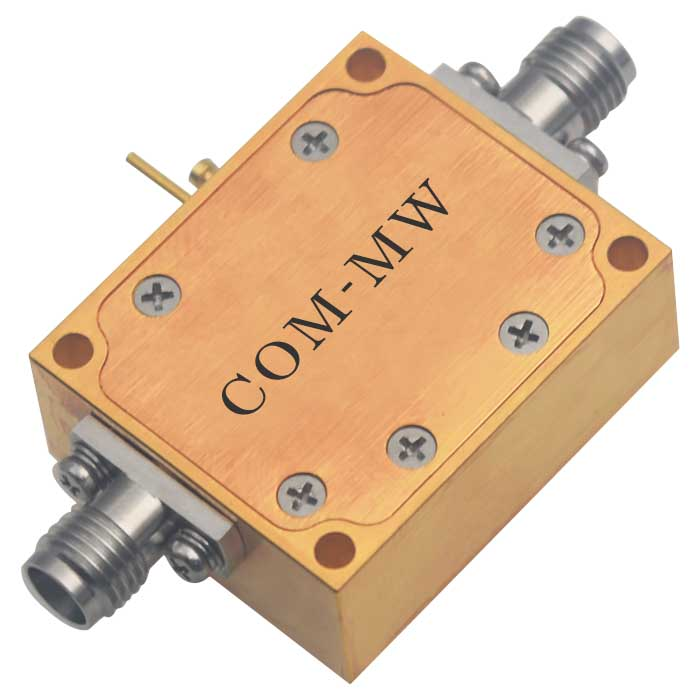

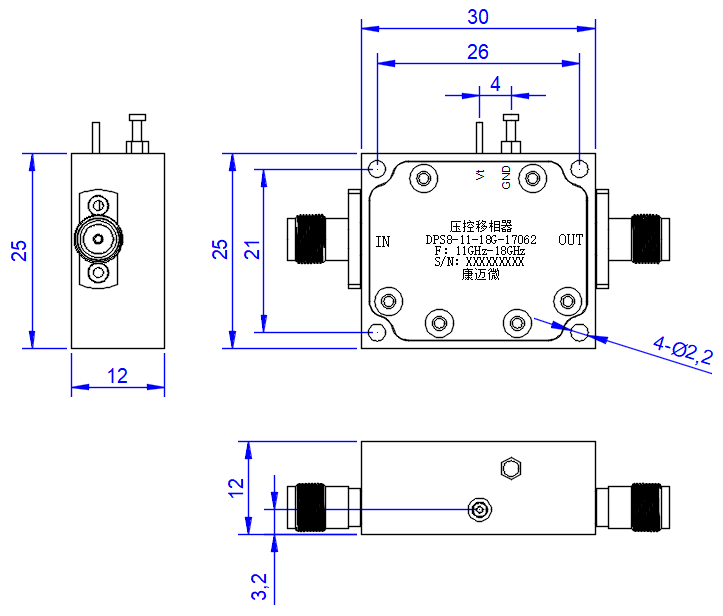

Frequency11~18GHz, SMA-F or K, voltage-controlled phase shifter
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Analog phase shifter, 360 ° phase shift
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 11 | ~ | 18 | GHz |
| IL | 6 | dB | ||
| VSWR | 2 | |||
| 0 | ~ | 14 | V | |
| Phase shift range | 375 | ° |
| Impedance | 50Ω |
| Connector | SMA-F or K |
| Power Capacity | 20dBm Design assurance |
| Operation Temp. | -35~+60℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | voltage-controlled phase shifter |

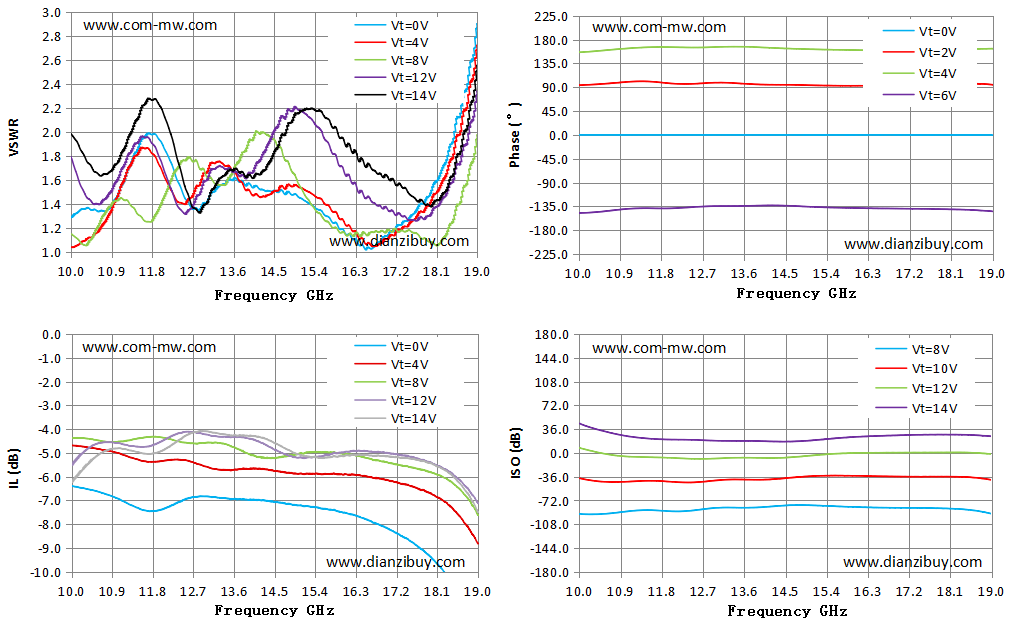

| Frequency GHz | Vt=0V VSWR | Vt=14V VSWR | Vt=0V ILdB | Vt=14V ILdB | Vt=0V Phase° | Vt=4V Phase° | Vt=8V ISOdB | Vt=12V ISOdB | Vt=14V ISOdB |
|---|---|---|---|---|---|---|---|---|---|
| 10.00 | 1.28 | 1.98 | -6.39 | -6.25 | -0.03 | 155.94 | -92.49 | 7.58 | 44.57 |
| 10.64 | 1.34 | 1.64 | -6.67 | -5.01 | -0.10 | 160.32 | -91.66 | -2.38 | 31.09 |
| 11.29 | 1.71 | 1.97 | -7.18 | -4.90 | -0.03 | 164.66 | -86.96 | -6.13 | 23.15 |
| 11.93 | 1.95 | 2.24 | -7.42 | -4.97 | -0.09 | 165.76 | -88.17 | -7.34 | 20.33 |
| 12.57 | 1.43 | 1.50 | -6.92 | -4.23 | -0.13 | 165.07 | -86.26 | -9.04 | 19.53 |
| 13.21 | 1.52 | 1.56 | -6.87 | -4.16 | -0.04 | 166.49 | -82.66 | -7.68 | 18.16 |
| 13.86 | 1.55 | 1.62 | -6.95 | -4.26 | -0.17 | 165.62 | -82.63 | -7.49 | 17.89 |
| 14.50 | 1.51 | 1.83 | -7.07 | -4.59 | -0.02 | 163.22 | -79.52 | -7.03 | 17.17 |
| 15.14 | 1.44 | 2.19 | -7.23 | -5.12 | -0.04 | 161.57 | -79.42 | -3.51 | 19.43 |
| 15.79 | 1.24 | 2.03 | -7.40 | -5.14 | -0.16 | 160.38 | -81.34 | -0.59 | 23.32 |
| 16.43 | 1.06 | 1.78 | -7.72 | -5.09 | -0.07 | 159.67 | -82.68 | 0.18 | 25.46 |
| 17.07 | 1.17 | 1.60 | -8.24 | -5.15 | -0.04 | 159.61 | -83.14 | 0.58 | 26.95 |
| 17.71 | 1.39 | 1.43 | -9.01 | -5.32 | -0.11 | 160.24 | -83.50 | 0.65 | 27.78 |
| 18.36 | 1.84 | 1.57 | -10.28 | -5.85 | -0.08 | 161.59 | -85.26 | 0.69 | 27.59 |
| 19.00 | 2.90 | 2.56 | -12.70 | -7.48 | 0.04 | 162.98 | -92.24 | -1.73 | 25.11 |
