Frequency2~3GHz, Phase shift bits6Bit, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
频率1.8~3.6Ghz ，移相范围:360°，LSB=5.625°。
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2 | ~ | 3 | GHz |
| IL | 8 | dB | ||
| VSWR | 1.5 | |||

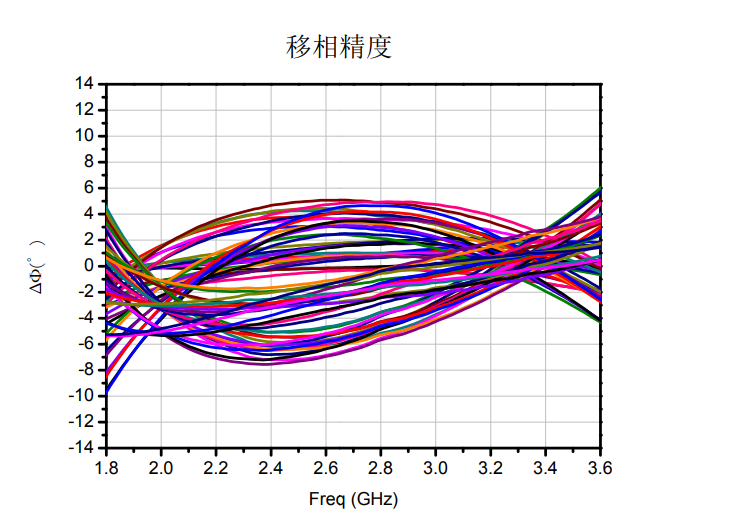

| Phase shift accuracy | -10 | ~ | 6 | ° |
| Phase shift bits | 6 bits |
| Impedance | 50Ω |
| Voltage | -5.5V |
| 控制电平 | 低:0~0.5V；高:3.7~5V |
| Connector | SMA-K detachable |
| Power Capacity | +27dBm设计保证 |
| Operation Temp. | -40~85℃ Design assurance |
| Storage Temp. | -55~100℃设计保证 |
移相控制
J30J-9-ZKP
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | 存储在湿度小于25%的环境 ，注意防尘防静电。 |
