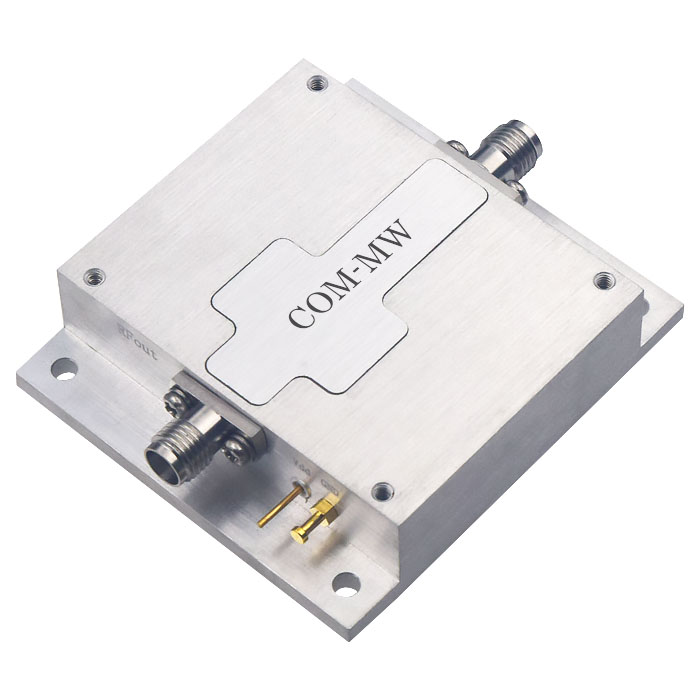

700~8000MHz, Gain44dB, P-1dB30dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 700 | ~ | 8000 | MHz |
| Gain | 44 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 30 | dBm | ||
| Max input power | 15 | dBm |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +18V |
| Working current | 1000mA |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |
Store humidity below 25%, pay attention to dust and static electricity prevention; Please pay attention to the power consumption of the product and consider amplifier heat dissipation during installation; If the overall temperature of the product is greater than 85 ℃, please negotiate with us before placing an order.
