700~6000MHz, Gain44dB, P-1dB30dBm, SMA, 32 channels
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, multi-channel.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 700 | ~ | 6000 | MHz |
| Gain | 44 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 30 | dBm | ||
| Power consistency between channels | 2 | dB |
| Connector | SMA-K |
| Connector material | Stainless steel |
| 32 channels | |
| Impedance | 50Ω |
| Surface | Grey |
| Working voltage | +220V |
| Operation Temp. | -30~+60℃ Design assurance |
| Other | 1. 220V AC power supply, power consumption 600W. |
| 2. 32 channels start up and work simultaneously, with front panel input and rear panel output. | |
| 3. Equipped with air cooling and side ventilation. | |

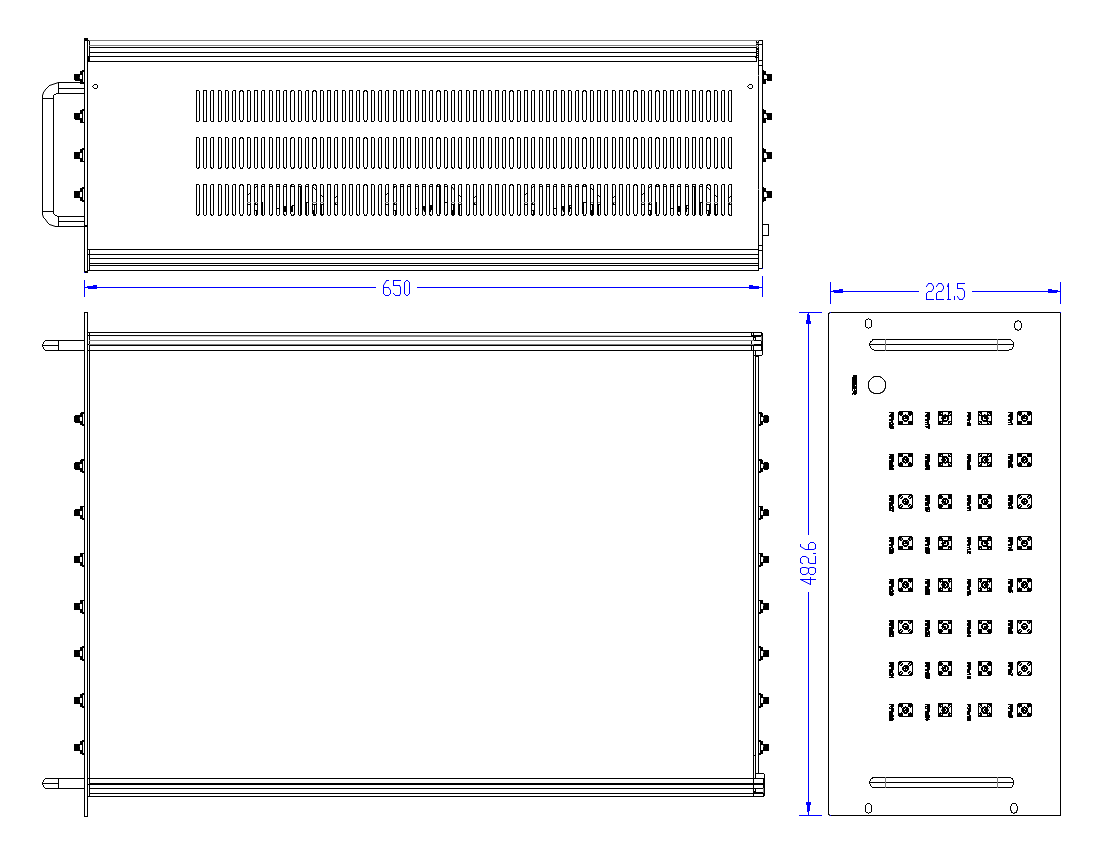

| 4. Standard 19 inch chassis with a height of 5U. If used in the cabinet, it is recommended to open heat dissipation holes on the side of the cabinet. |
Store humidity below 25%, pay attention to dust and static electricity prevention; Please pay attention to the power consumption of the product and consider amplifier heat dissipation during installation; If the overall temperature of the product is greater than 85 ℃, please negotiate with us before placing an order.
