470~700MHz, Gain50dB, Output power33W, SMA, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

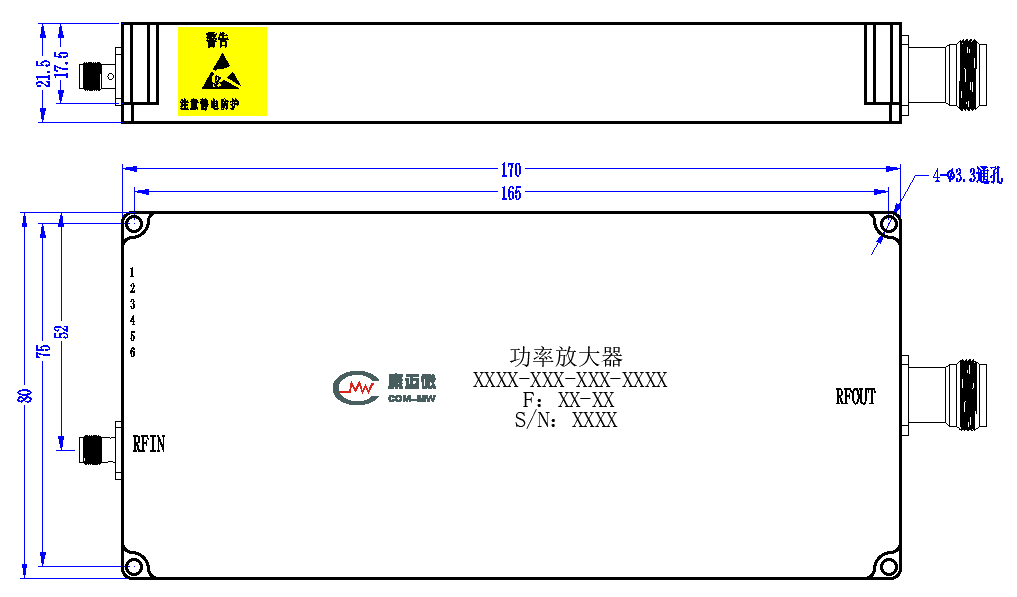

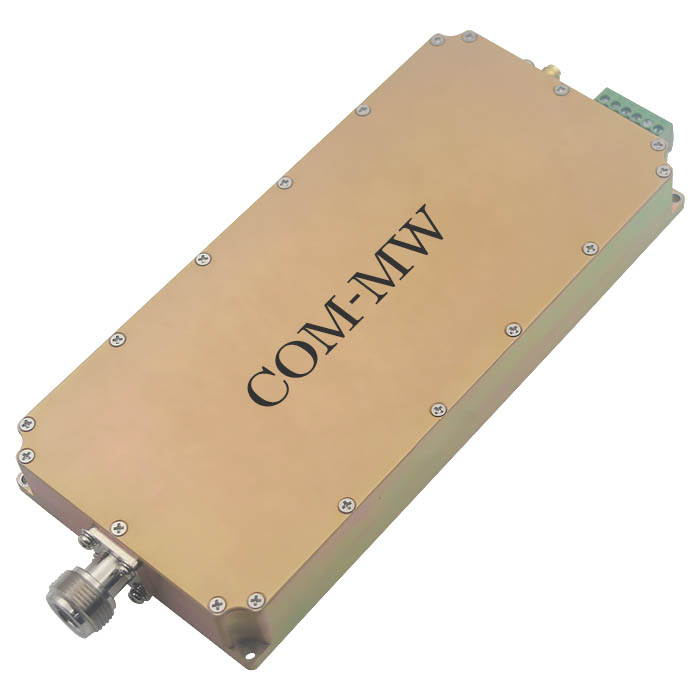

Linear power amplifier, narrowband, high power.
| Parameters | Min | Typical | Max | Units | Note |
|---|---|---|---|---|---|
| Frequency | 470 | ~ | 700 | MHz | |
| Gain | 48 | 50 | dB | Small signal gain | |
| Flatness in band | ±3 | ||||
| Input VSWR | 2.5 | 3.0 | |||
| Output VSWR | 1.3 | 1.8 | |||
| Output power | 30 | 33 | W | ||
| Efficiency | 15 | % | |||
| Harmonic Rejection | 8 | 30 | dBC | ||
| Spurious suppression | 75 | dBC |
| Input connector | SMA-K |
| Output port | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +50±2V |
| Working current | 4.5A |
| Module temperature during operation | -40~+65℃ Design assurance |
| Other | 1、长期工作，建议温度保持在40℃以下 |
| 2、线性功率放大器，严禁超频和超额定功率使用 |

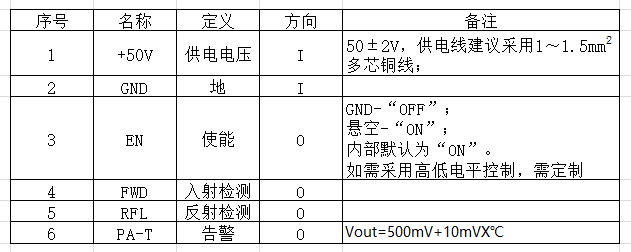

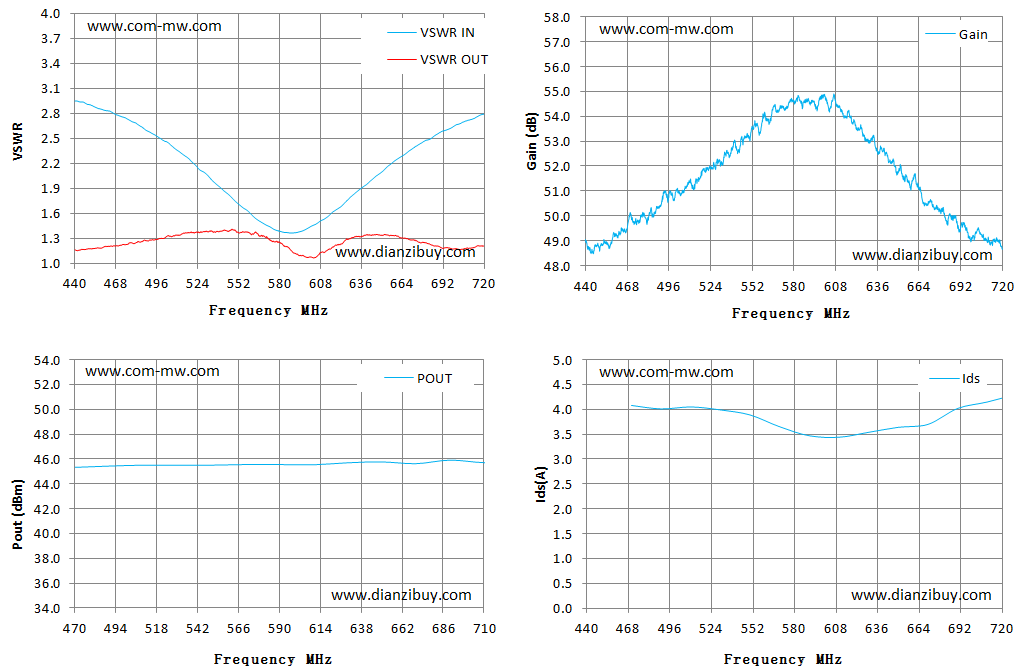

| Frequency (MHz) | 470 | 530 | 590 | 650 | 700 | 710 |
|---|---|---|---|---|---|---|
| VSWR（IN） | 2.77 | 2.08 | 1.37 | 2.1 | 2.85 | 2.72 |
| VSWR（OUT） | 1.22 | 1.39 | 1.13 | 1.34 | 1.19 | 1.19 |
| Pout（SAT）（dBm） | 45.33 | 45.5 | 45.56 | 45.77 | 45.12 | 45.71 |
| Psat（W） | 34.12 | 35.48 | 36 | 37.76 | 32.51 | 37.24 |
| Gain（dB） | 50.1 | 52.2 | 54.6 | 51.73 | 48.5 | 48.95 |
| Ids（A） | 4.08 | 3.99 | 3.47 | 3.64 | 4.15 | 4.15 |
| ŋ(%) | 16.73 | 17.79 | 20.73 | 20.75 | 15.67 | 17.95 |
| 2nd harmonic rejection (dBc) | 8.7 | 12.2 | 30.4 | 45.7 | 53.7 | 53.7 |
| 3rd harmonic rejection (dBc) | 66.1 | 74.6 | 73.7 | 74.2 | 76.2 | 76.2 |
| Spurious suppression | 81.6 | 80.5 | 79.8 | 81.2 | 80.1 | 80.1 |
1、存储在湿度小于25%的环境，注意防尘防静电；
2、请注意产品的功耗，设计时考虑放大器散热问题；
3、产品整体温度大于125℃的情况下，请在订货前与我们协商；
4、清洗产品表面，请勿将产品浸泡清洗液中清洗。
