470~700MHz, Gain50dB, Rated output power47dBm, SMA, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

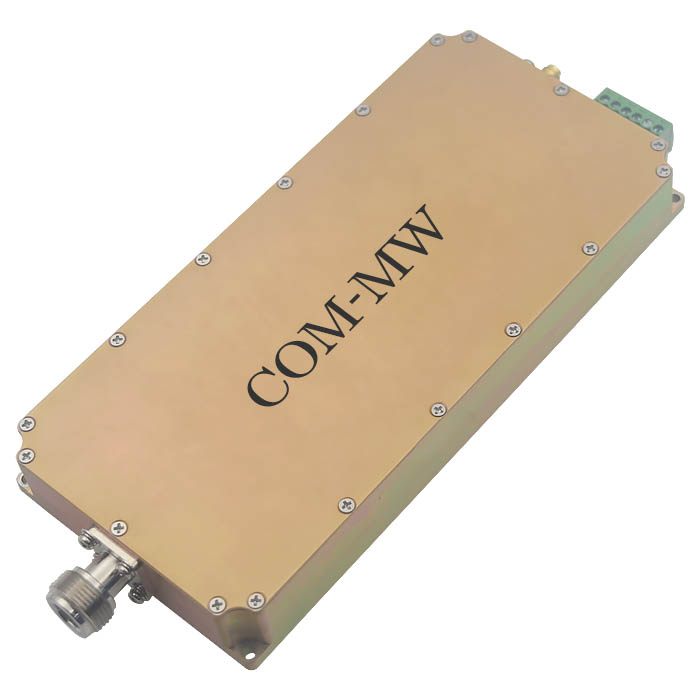

Linear power amplifier, narrowband, high power.
| Parameters | Min | Typical | Max | Units | Note |
|---|---|---|---|---|---|
| Frequency | 470 | ~ | 700 | MHz | |
| Gain | 48 | 50 | dB | Small signal gain | |
| Flatness in band | ±3 | ||||
| Input VSWR | 2.5 | 2.8 | |||
| Output VSWR | 1.3 | 1.8 | |||
| Rated output power | 47 | dBm | |||
| Efficiency | 19 | 20 | % | ||
| Harmonic Rejection | 8 | 12 | dBC | ||
| Spurious suppression | 75 | dBC |
| Input connector | SMA-K |
| Output port | N -K |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +50±2V |
| Working current | 5.5A |
| Module temperature during operation | -40~+65℃ Design assurance |
| Other | For long-term work, it is recommended to keep the temperature below 40 ℃ |

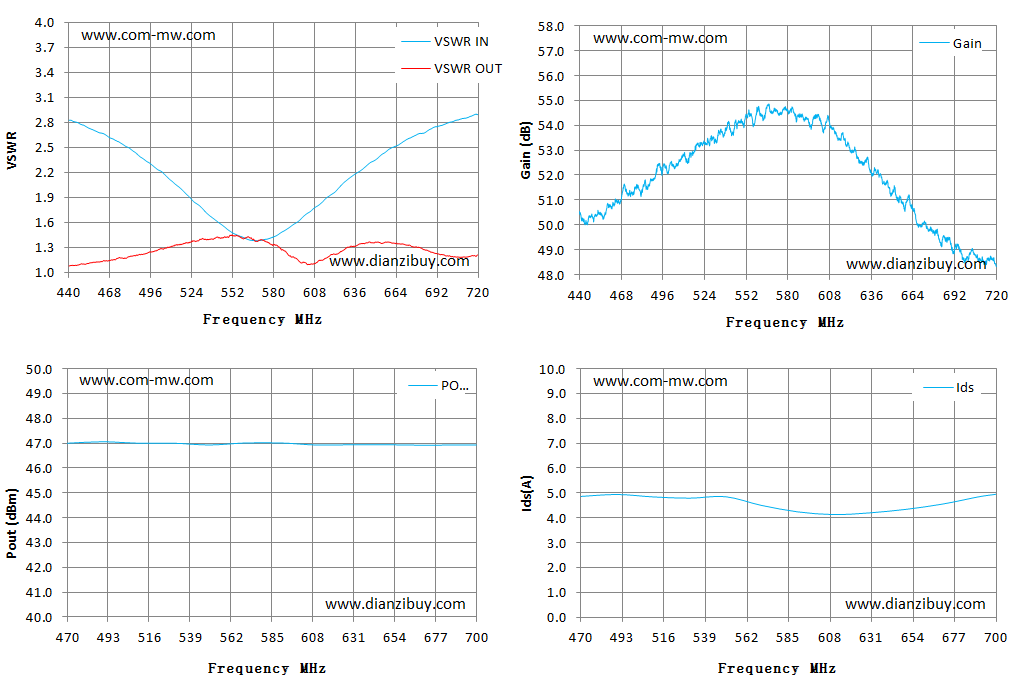

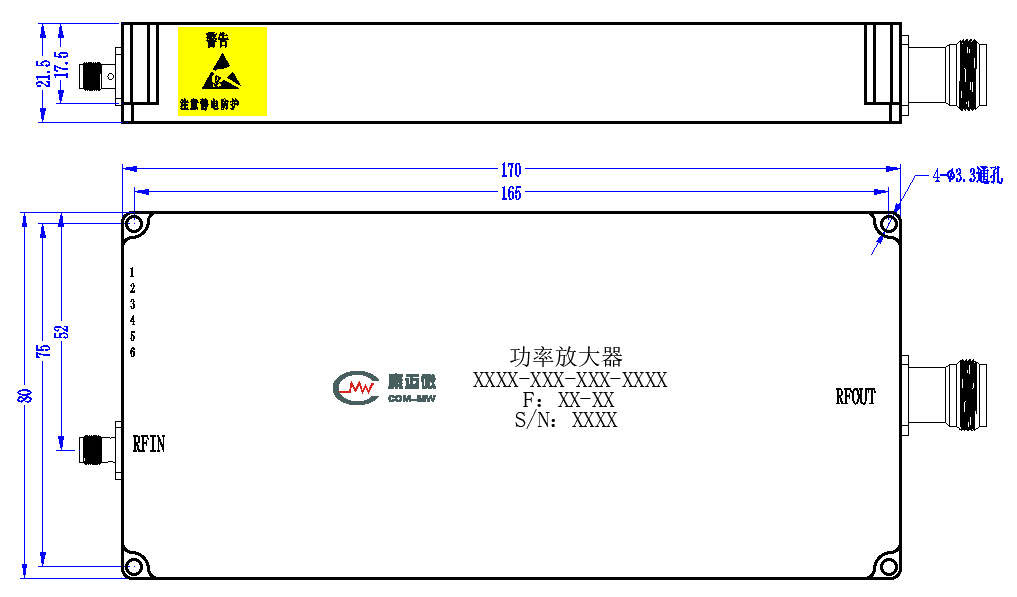

| Frequency (MHz) | 470 | 530 | 590 | 650 | 700 |
|---|---|---|---|---|---|
| VSWR（IN） | 2.6 | 1.79 | 1.53 | 2.36 | 2.8 |
| VSWR（OUT） | 1.15 | 1.4 | 1.22 | 1.37 | 1.21 |
| Pout（SAT）（dBm） | 47 | 47 | 47.01 | 46.94 | 46.93 |
| Psat（W） | 50.12 | 50.12 | 50.23 | 49.43 | 49.32 |
| Gain（dB） | 51.65 | 53.51 | 54.34 | 51.27 | 48.72 |
| Ids（A） | 4.86 | 4.79 | 4.24 | 4.34 | 4.95 |
| ŋ(%) | 20.6 | 20.93 | 20.7 | 22.77 | 19.92 |
| 2nd harmonic rejection (dBc) | 8.4 | 12.34 | 27.95 | 45.6 | 51.8 |
| 3rd harmonic rejection (dBc) | 63.1 | 76.9 | 73.3 | 76 | 76.4 |
| Spurious suppression | 82 | 84 | 81.6 | 86 | 83.5 |
| No. | definition | Note |
|---|---|---|
| 1 | +50V | Suggest using multi-core copper wire with an area of 1-1.5 square millimeters |
| 2 | GND | |
| 3 | EN | GND: OFF, Suspend in midair: ON (internal default is "ON") |
| 4 | FWD | Positive direction detection |
| 5 | RFL | Reflection detection |
| 6 | PA-T | Vout=500mV+10mVX℃ |
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Linear power amplifiers are strictly prohibited from being used beyond frequency and rated power;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
