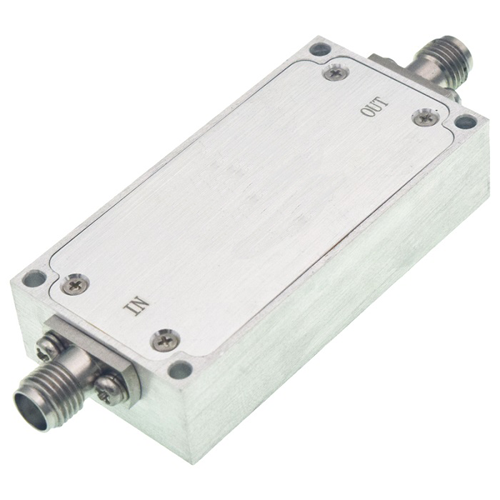

400~8500MHz, Gain30~45dB Negative slope, P-1dB20dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, gain negative slope.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 400 | ~ | 8500 | MHz |
| Gain | 30 | ~ | 45 | dB Negative slope |
| Gain flatness | 5dBpk-pk | dB | ||
| VSWR | 1.6 | 2.2 | ||
| P-1dB | 20 | dBm |

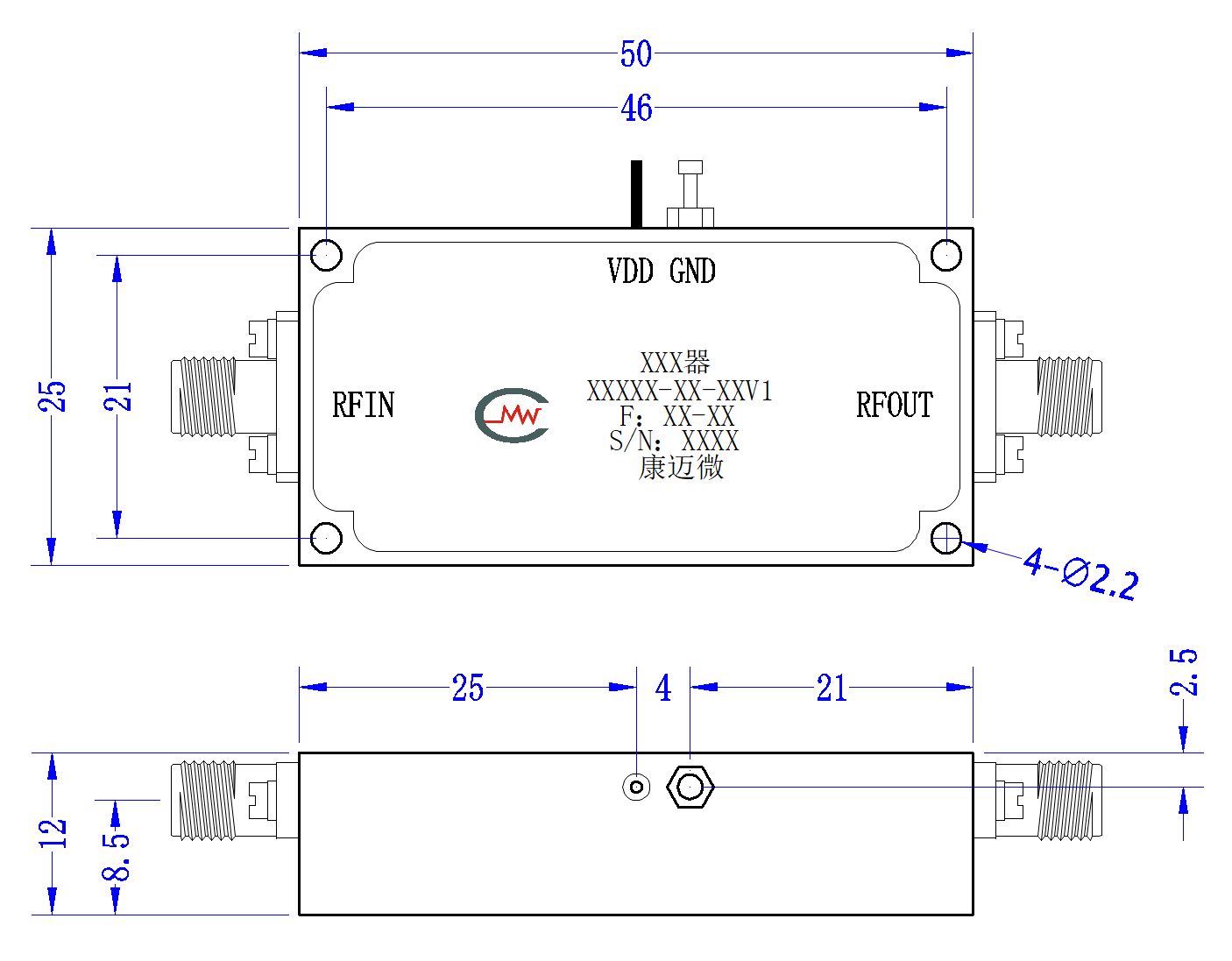

| Connector | SMA-K detachable, Pin 0.38mm |
|---|---|
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 400mA |
| Other | Maximum input undamaged power: 10dBm |

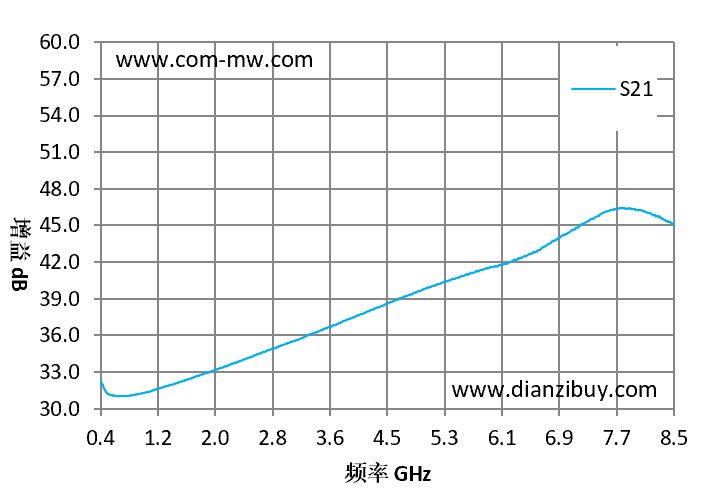

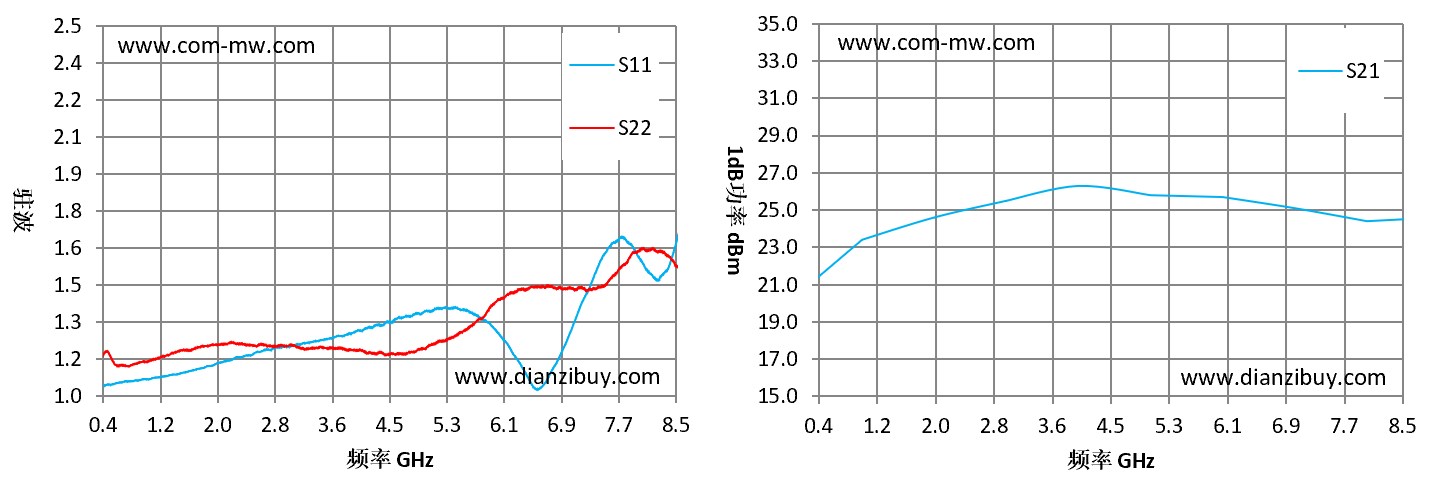

| Frequency (G) | S11 VSWR | S22 VSWR | S21 Gain | S21 P-1dB |
|---|---|---|---|---|
| 1 | 1.07 | 1.14 | 31.24 | 23.4 |
| 2 | 1.13 | 1.21 | 33.07 | 24.6 |
| 2 | 1.13 | 1.21 | 33.07 | 24.6 |
| 3 | 1.2 | 1.2 | 35.22 | 25.5 |
| 3 | 1.2 | 1.2 | 35.22 | 25.5 |
| 4 | 1.26 | 1.18 | 37.48 | 26.3 |
| 4 | 1.26 | 1.18 | 37.48 | 26.3 |
| 5 | 1.34 | 1.2 | 39.81 | 25.8 |
| 6 | 1.25 | 1.39 | 41.6 | 25.7 |
| 6 | 1.25 | 1.39 | 41.6 | 25.7 |
| 7 | 1.25 | 1.44 | 44.31 | 25.1 |
| 7 | 1.25 | 1.44 | 44.31 | 25.1 |
| 8 | 1.55 | 1.59 | 46.26 | 24.4 |
/
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
