400~8000MHz, Gain30dB, Noise figure2.2dB, P-1dB24dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, low noise.
| Parameters | Min | Typical | Max | Units | Note |
|---|---|---|---|---|---|
| Frequency | 400 | ~ | 8000 | MHz | |
| Gain | 30 | dB | |||
| Gain flatness | 3 | dB | |||
| Noise figure | 2.2 | 3 | dB | ||
| VSWR | 1.8 | 2.2 | |||
| P-1dB | 22 | 24 | dBm | ||
| Signal leakage | 50 | dB | |||
| Spurious suppression | 70 | dBC | Room temperature test | ||
| Harmonic Rejection | 18 | dBC | Room temperature test | ||
| Reverse isolation | 68 | dBC | |||
| OIP3 | 30 | dBm |

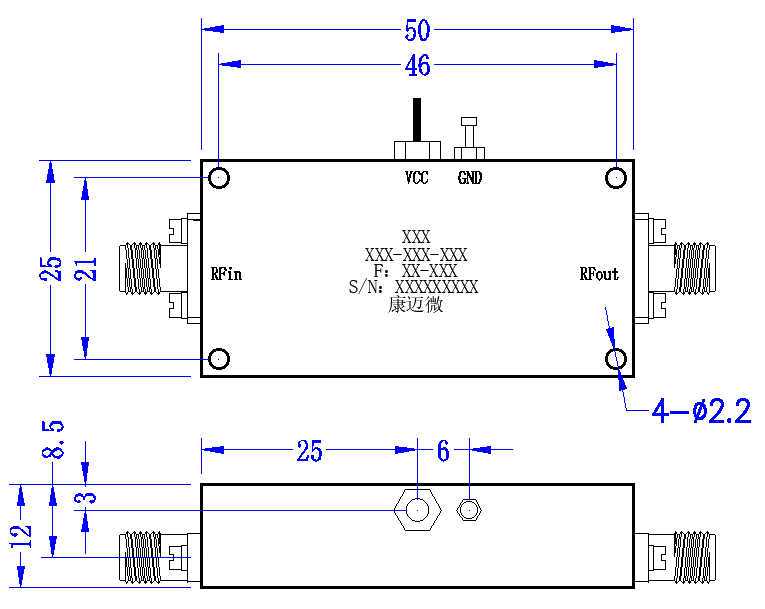

| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Other | Maximum input undamaged power: 10dBm |

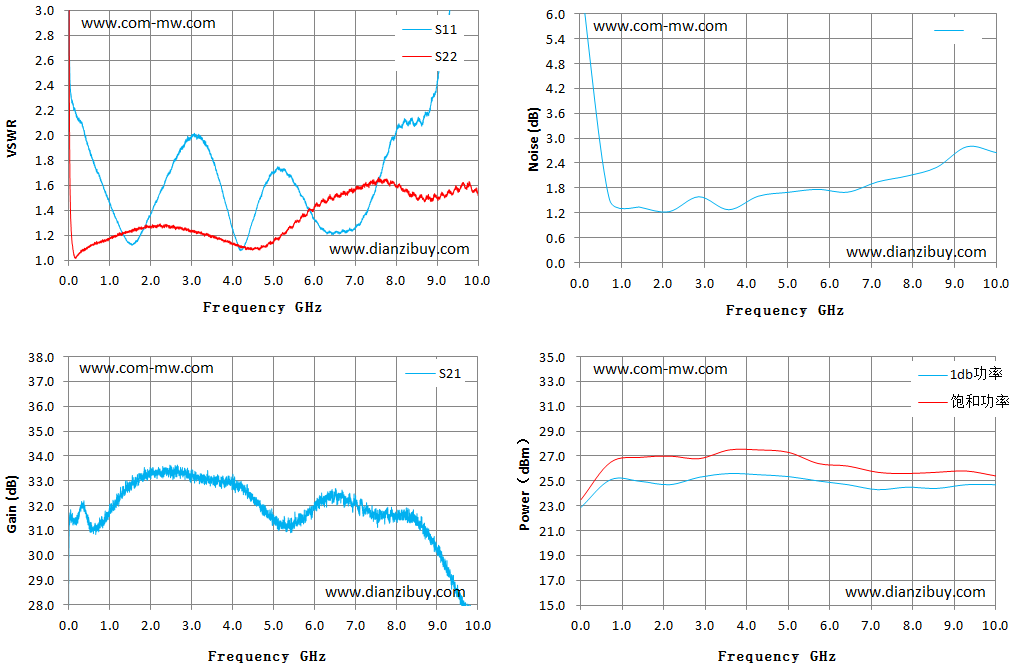

| F（GHz） | S11 SWR | S22 SWR | Gain（dB） | NF（dB） | P-1dB OUT（dBm） | P sat（dBm） |
|---|---|---|---|---|---|---|
| 0.01 | 5.21 | 5.92 | 27.01 | 6.97 | 22.88 | 23.5 |
| 0.72 | 1.71 | 1.14 | 31.24 | 1.52 | 25.1 | 26.5 |
| 1.44 | 1.15 | 1.24 | 32.66 | 1.34 | 24.97 | 26.9 |
| 2.15 | 1.47 | 1.28 | 33.28 | 1.23 | 24.7 | 27 |
| 2.86 | 1.96 | 1.26 | 33.27 | 1.59 | 25.3 | 26.8 |
| 3.58 | 1.76 | 1.19 | 33.08 | 1.28 | 25.6 | 27.5 |
| 4.29 | 1.12 | 1.11 | 32.71 | 1.6 | 25.5 | 27.5 |
| 5.01 | 1.71 | 1.16 | 31.53 | 1.7 | 25.35 | 27.3 |
| 5.72 | 1.52 | 1.37 | 31.49 | 1.77 | 25 | 26.4 |
| 6.43 | 1.22 | 1.5 | 32.46 | 1.7 | 24.7 | 26.2 |
| 7.15 | 1.31 | 1.57 | 32.27 | 1.95 | 24.3 | 25.7 |
| 7.86 | 1.94 | 1.62 | 31.62 | 2.09 | 24.5 | 25.6 |
| 8.57 | 2.14 | 1.52 | 31.17 | 2.3 | 24.4 | 25.7 |
| 9.29 | 2.95 | 1.55 | 29.41 | 2.8 | 24.7 | 25.8 |
| 10 | 5.19 | 1.53 | 27.37 | 2.65 | 24.7 | 25.4 |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
