Main specifications

Parameters	Min	Typical	Max	Units
Frequency	4.8	~	9.2	GHz
Gain	46			dB(正斜率)

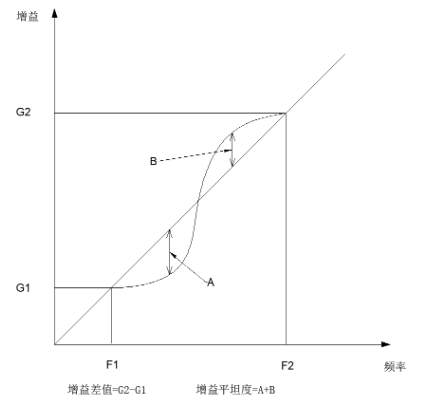

Gain difference	5			dB
Gain flatness			5	dB
Noise figure			2.5	dB
VSWR			2.2
P-1dB	24			dBm
Psat	25			dBm
Max input power			10	dBm
Spur reduction	55			dBc
Harmonic Rejection		20		dBc
OIP3		35		dBm
反相隔离		60		dBc

Other parameters

Connector	SMA-F
Connector material	Stainless steel
Impedance	50Ω
Surface	Conductive oxidation
Working voltage	+12V
Working current	400mA
Operation Temp.	-30~+60℃ Design assurance
Quality Grade	Industrial grade

Typical test data

Frequency	S11	S22	GAIN	P-1	PSAT	NF
GHz	VSWR	VSWR	dB	dBm	dBm	dB
4	1.99	1.28	47.36	28.5	29.7	1.42
4.43	2	1.29	47.63	28.5	29.6	1.03
4.86	1.97	1.27	48.09	28.6	29.7	1.39
5.29	1.92	1.24	48.8	28.1	29.5	1.12
5.71	1.81	1.22	49.6	28.1	29.4	1.47
6.14	1.7	1.22	50.26	28	29.4	1.36
6.57	1.59	1.2	50.88	28.2	29.4	1.44
7	1.53	1.19	51.42	28.1	29.5	1.44
7.43	1.49	1.16	52.05	28.1	29.5	1.3
7.86	1.47	1.18	52.54	28.2	29.9	1.42
8.29	1.51	1.21	52.91	28.3	29.4	1.32
8.71	1.56	1.27	53.1	28.2	29.2	1.49
9.14	1.6	1.33	53.17	28.2	29.2	1.43
9.57	1.64	1.37	53.27	28.3	29.6	1.64
10	1.68	1.14	53.21	27.9	29.6	1.55

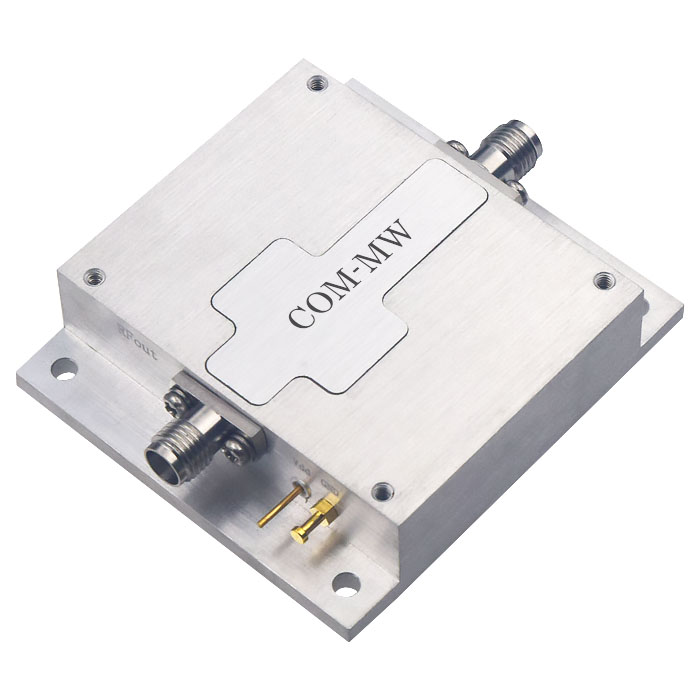

Reference picture

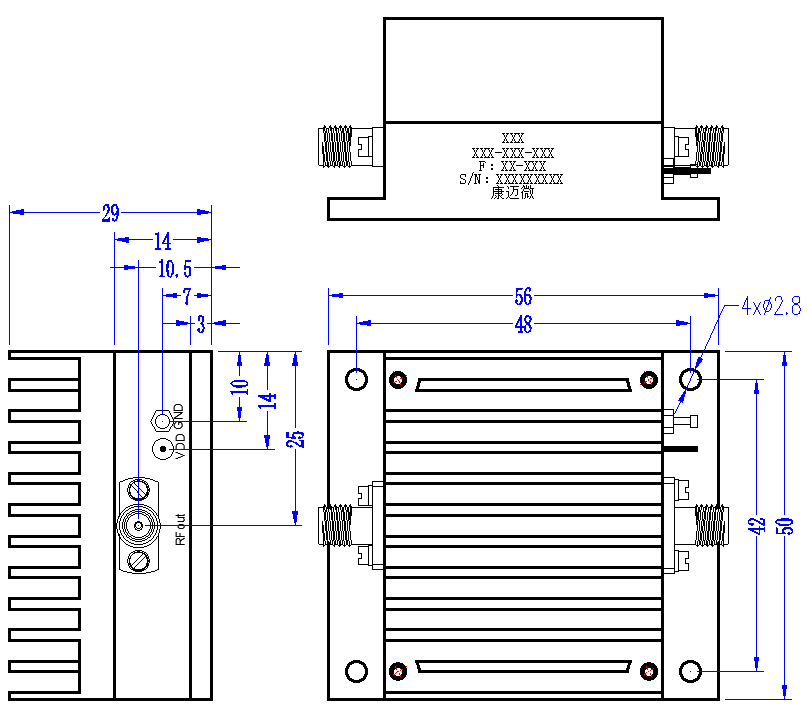

Configuration

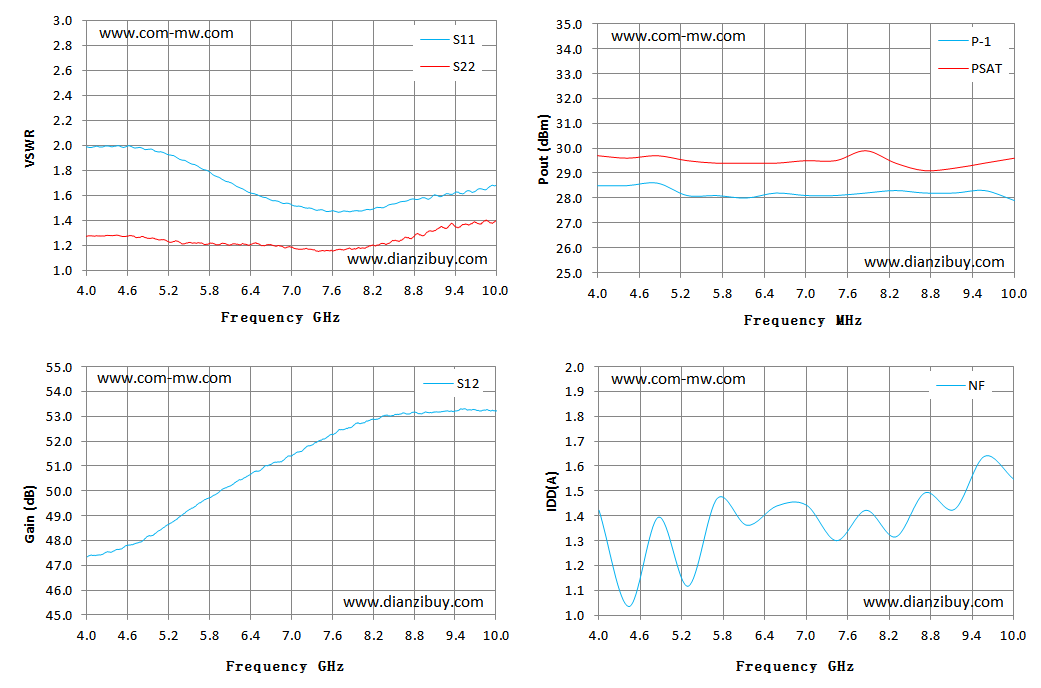

Typical test curve

Note

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;

Working or storage temperature less than 125 ℃;

Clean the surface of the product, do not soak the product in cleaning solution for cleaning.

Power amplifier DPA8-4.8-9.2G-3664
