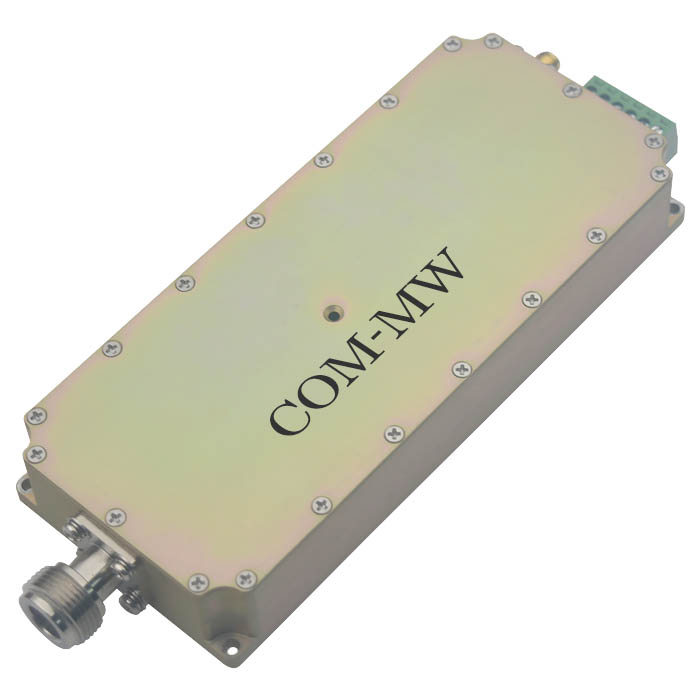

300~1000MHz, Gain42dB, Output power50W, Efficiency50%, SMA, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Narrowband, high power.
| Parameters | Min | Typical | Max | Units | Note |
|---|---|---|---|---|---|
| Frequency | 300 | ~ | 1000 | MHz | |
| Gain | 42 | dB | Small signal gain | ||
| Flatness in band | ±3 | ||||
| Input VSWR | 2.2 | 2.5 | |||
| Output power | 50 | 60 | W | CW signal | |
| Efficiency | 50 | % | |||
| Harmonic Rejection | 11 | 15 | dBc | ||
| Spurious suppression | 45 | 50 | dBm | ||
| ACP | 70 | dBc |
| Input connector | SMA-K |
| Output port | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +28±4V |
| Working current | 4.5A |
| Operation Temp. | -40~+65℃ Design assurance |
| Other | For long-term work, it is recommended to keep the temperature below 40 ℃ |

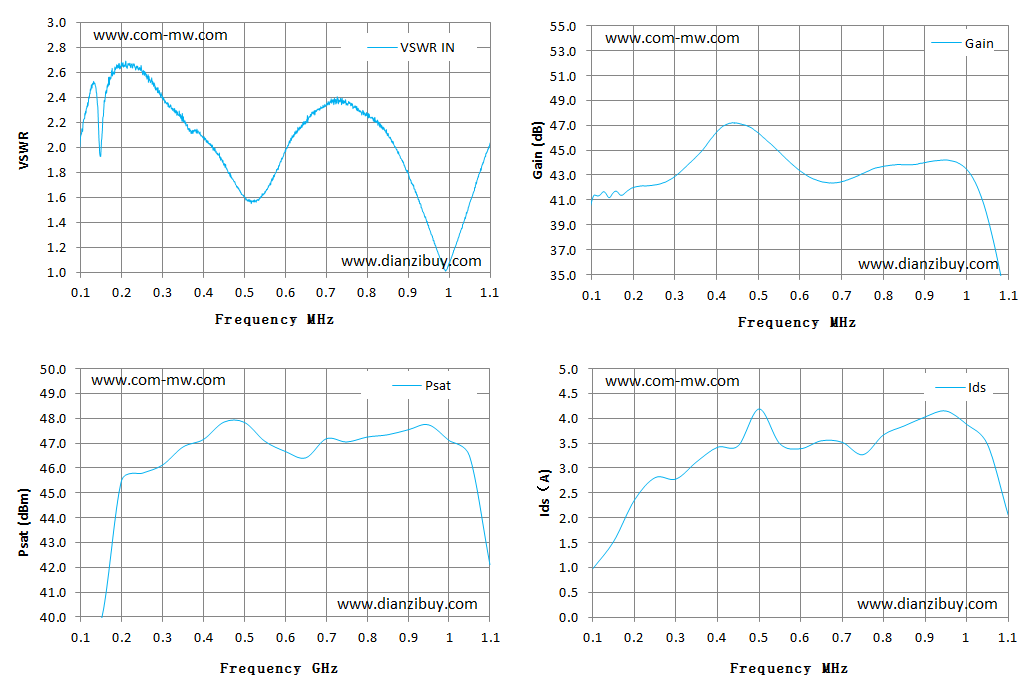

| 工作频率（GHz） | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1 |
|---|---|---|---|---|---|---|---|---|
| VSWR | 2.40 | 2.10 | 1.60 | 2.00 | 2.30 | 2.30 | 1.80 | 1.10 |
| Pin（dBm) | 5.97 | 3.51 | 3.45 | 5.77 | 7.19 | 4.16 | 3.46 | 4.61 |
| Pout（SAT）（dBm） | 46.12 | 47.15 | 47.84 | 46.67 | 47.18 | 47.25 | 47.54 | 47.11 |
| Pout（SAT）（W） | 40.92 | 51.88 | 60.81 | 46.45 | 52.23 | 53.08 | 56.75 | 51.40 |
| Ids（A） | 2.78 | 3.42 | 4.19 | 3.39 | 3.52 | 3.67 | 4.03 | 3.88 |
| Gain（dB） | 42.90 | 46.50 | 46.40 | 43.40 | 42.50 | 43.70 | 44.00 | 46.50 |
| ŋ（%） | 52.57 | 54.17 | 51.83 | 48.93 | 53.00 | 51.66 | 50.29 | 47.31 |
| 2nd harmonic rejection (dBc) | 12.20 | 17.10 | 22.14 | 18.20 | 47.10 | 47.70 | 31.60 | 26.00 |
| 3rd harmonic rejection (dBc) | 15.50 | 11.70 | 36.50 | 30.40 | 27.30 | 26.00 | 34.90 | 28.40 |
| 4th harmonic rejection (dBc) | 20.40 | 39.20 | 27.60 | 27.90 | 44.30 | 42.70 | 48.30 | 36.00 |
| Spurious suppression | 66.80 | 67.00 | 66.00 | 67.40 | 68.00 | 68.00 | 38.50 | 66.60 |
| ACP（dBc） | 75.50 | 72.10 | 72.60 | 71.70 | 71.70 | 71.40 | 71.60 | 70.80 |

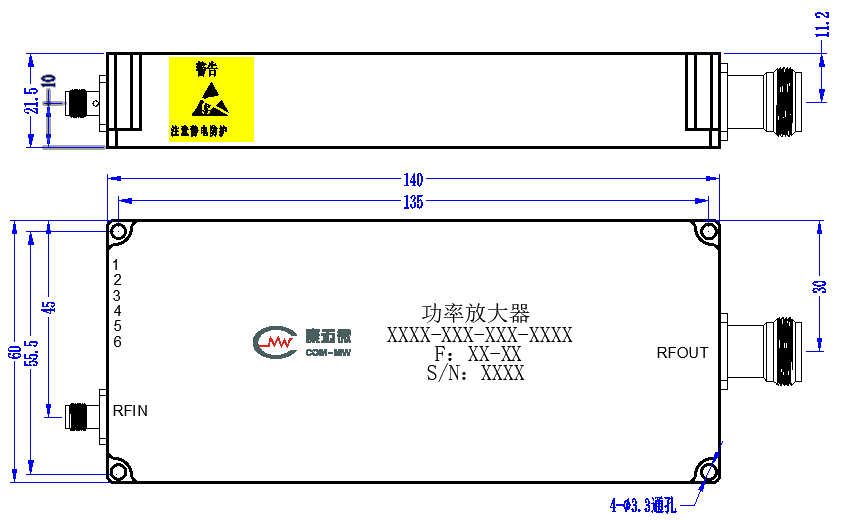

| No. | definition | Note |
|---|---|---|
| Pin1 | +28V | 50W及以下可以只接1路供电，供电线建议采用1～1.5mm2多芯铜线 |
| Pin 2 | +28V | 100W及以上必须接2路供电 |
| Pin 3 | GND | |
| Pin 4 | GND | |
| Pin 5 | EN | 0=关；5V=开；不连接默认开 |
| Pin 6 | ALARM | 1=有告警；0=无告警 |
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
具有输出开关控制接口
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
