30~3000MHz, Gain30dB, Psat30dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high reliability.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 3000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±1.2 | dB | ||
| Input VSWR | 1.8 | |||
| Output VSWR | 2.5 | 30~500MHz | ||
| Output VSWR | 1.9 | 500~3000MHz | ||
| P-1dB | 29 | dBm | ||
| Psat | 30 | dBm | ||
| NF | 4.4 | 5 | dB | |
| Harmonic Rejection | 15 | dBc | ||
| Spurious suppression | 75 | dBc | ||
| OIP3 | 30 | dBm | ||
| Maximum input RF power | 10 | dBm |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 600mA |
| Operation Temp. | -45~+80℃ Design assurance |

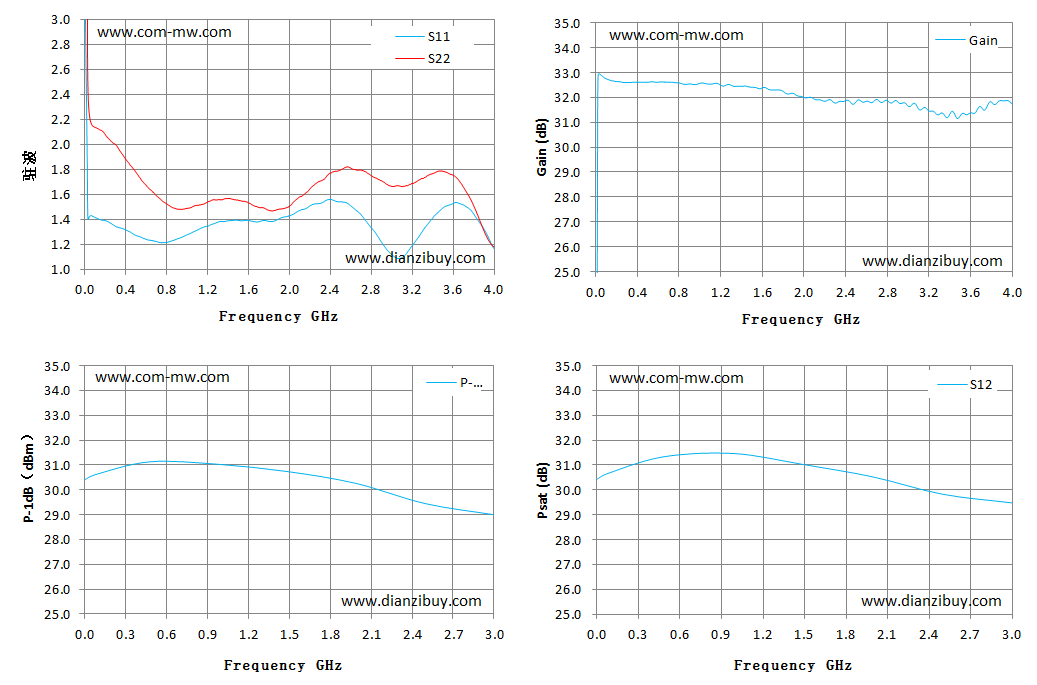

| Frequency(MHz) | 30 | 100 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 |
|---|---|---|---|---|---|---|---|---|
| S11 VSWR | 1.4 | 1.42 | 1.27 | 1.28 | 1.4 | 1.43 | 1.55 | 1.12 |
| S22 VSWR | 2.4 | 2.14 | 1.78 | 1.49 | 1.56 | 1.51 | 1.8 | 1.57 |
| Gain （dB） | 32.95 | 31.75 | 32.61 | 32.56 | 32.41 | 32 | 31.82 | 31.65 |
| P-1dB Out （dBm） | 30.4 | 30.6 | 31.13 | 31.03 | 30.74 | 30.26 | 29.45 | 29 |
| POut sat （dBm） | 30.43 | 30.65 | 31.33 | 31.47 | 31.03 | 30.53 | 29.83 | 29.48 |
| harmonic rejection (2nd) | 23.69 | 22.98 | 21.11 | 22.48 | 23.3 | 18.27 | 18.97 | 19.9 |
| harmonic rejection (3rd) | 15.55 | 21.86 | 20.77 | 17.22 | 18.82 | 18.96 | 22.35 | 31.75 |
| Spurious suppression | 80 | 81.3 | 81.2 | 80.3 | 80.5 | 80.5 | 80.5 | 80.6 |
| OIP3（dBm） | 44 | 40.5 | 38.6 | 36.8 | 33 | 32 | 30.6 | 30 |
