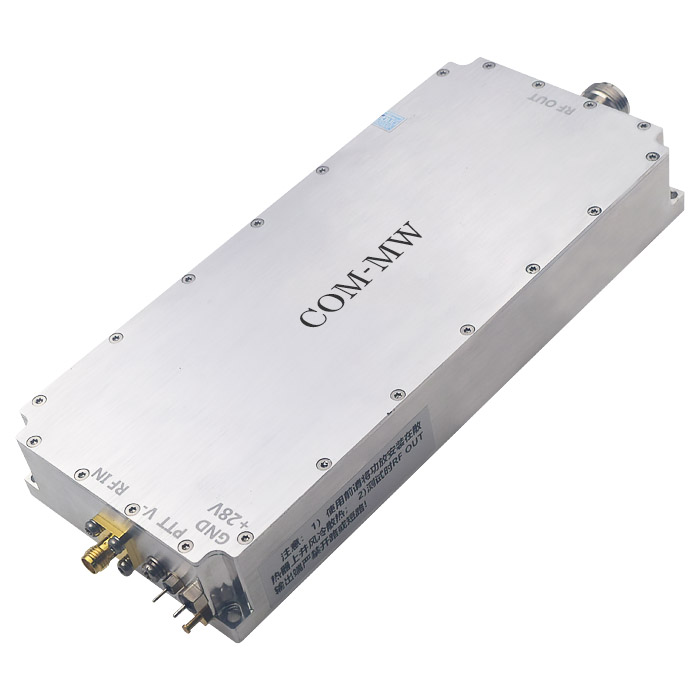

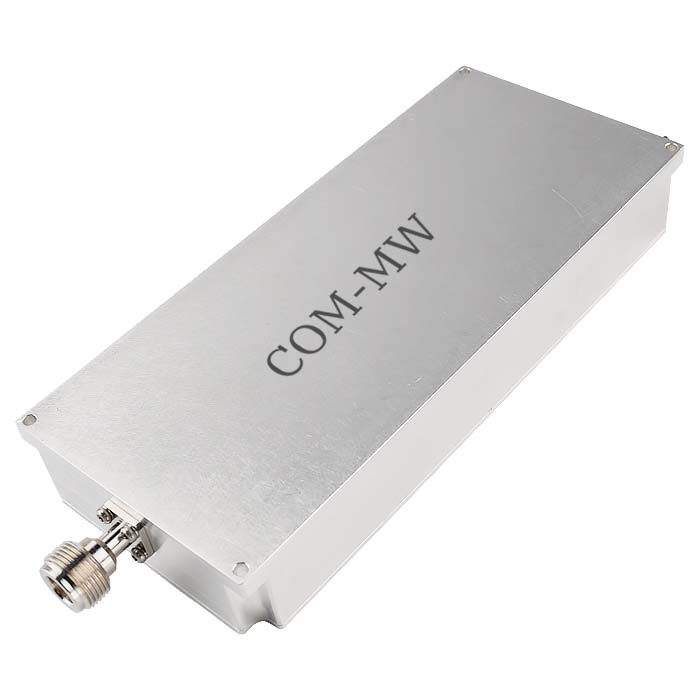

30~1000MHz, Gain48dB, Psat50dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 1000 | MHz |
| Gain | 48 | dB | ||
| Gain flatness | 3 | 4 | dB | |
| VSWR | 1.7 | |||
| Psat | 50 | dBm | ||
| Max input power | 6 | dBm | ||
| Power | 3±1 | dBm | ||
| Spur reduction | 65 | dBc | ||
| Harmonic Rejection | 10 | dBc |
| Connector | In: SMA-K, Out: N-K |
| Power amplifier PTT switch port | The power amplifier is turned off by default; 5V ON |
| Temperature protection | 80℃ |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +32V |
| Working current | 9-12A, Working current reference 16A |
| Operation Temp. | -25~+55℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Power amplifier testing or use requires the installation of a heat sink |

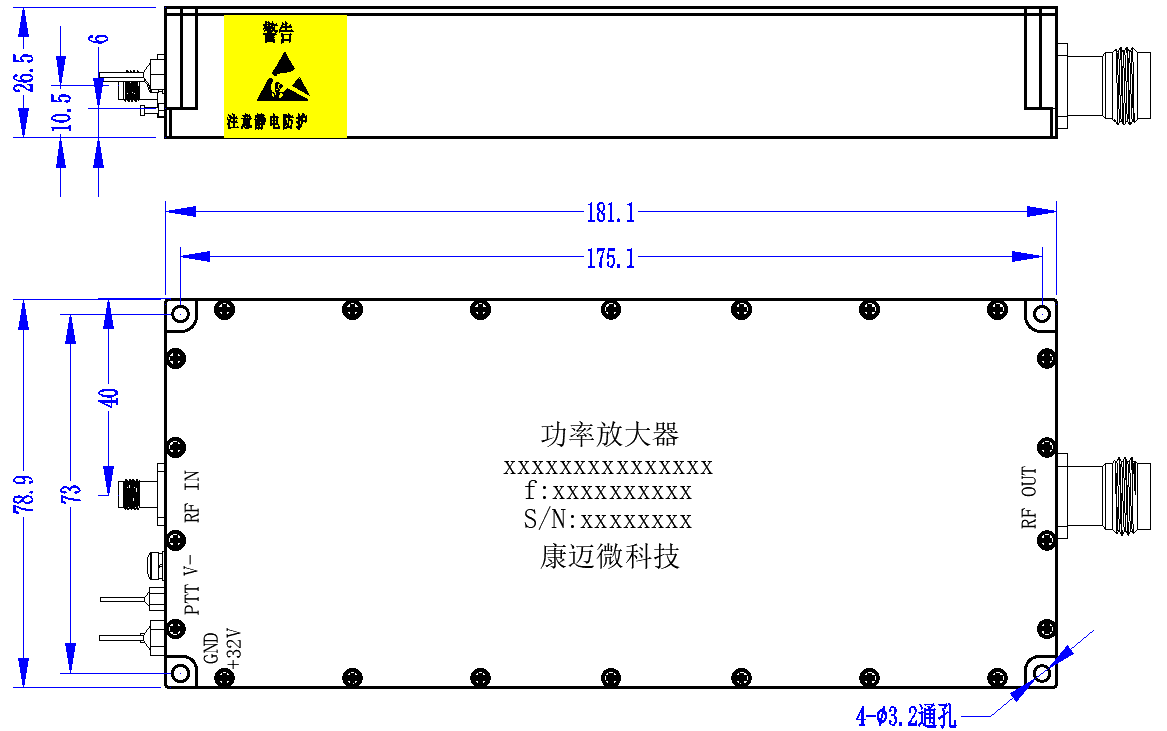

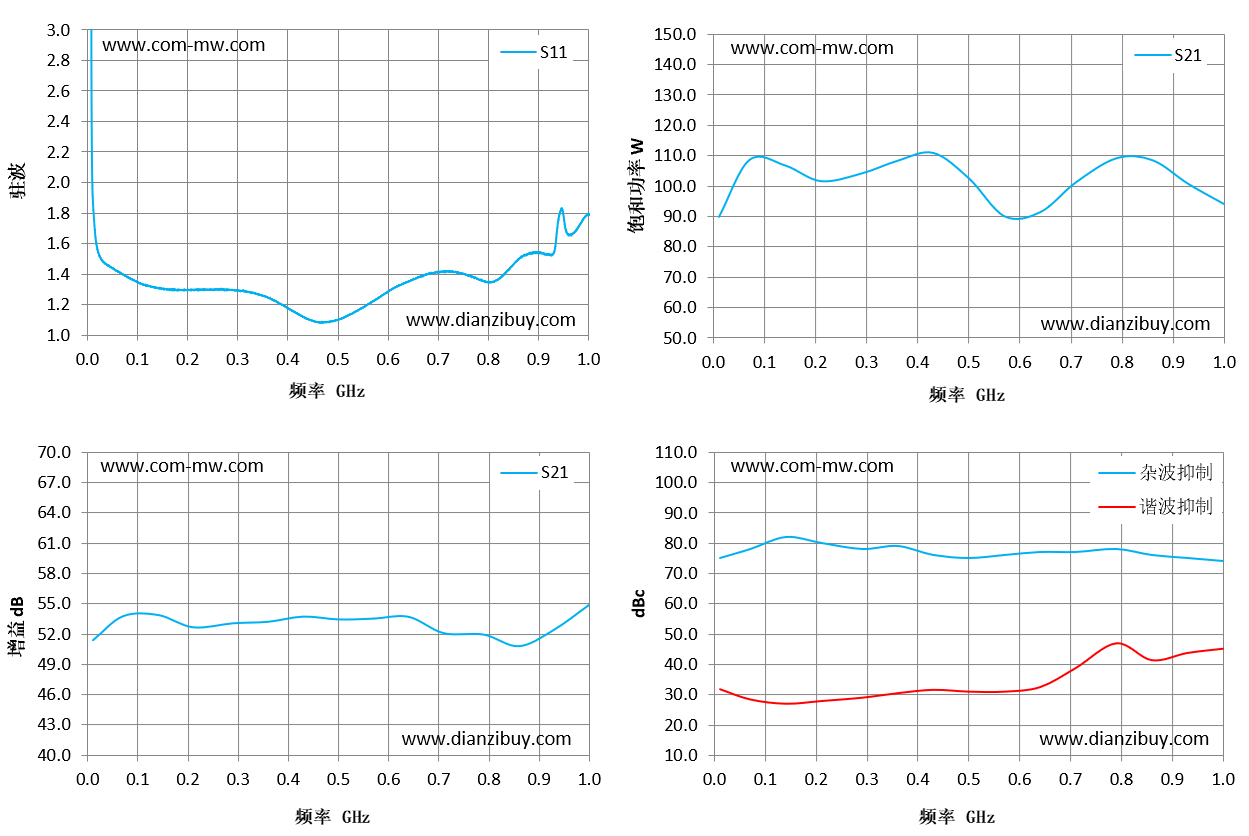

| Frequency(GHz) | S11 VSWR | S21 gain | S21 Psat W | Spurious suppression | Harmonic Rejection |
|---|---|---|---|---|---|
| 0.02 | 1.4 | 53.8 | 108.58 | 78 | 28.3 |
| 0.14 | 1.31 | 53.92 | 106.73 | 82 | 26.9 |
| 0.21 | 1.3 | 52.7 | 101.63 | 80 | 27.8 |
| 0.29 | 1.3 | 53.1 | 104.16 | 78 | 28.9 |
| 0.36 | 1.25 | 53.25 | 108.27 | 79 | 30.4 |
| 0.43 | 1.12 | 53.76 | 110.84 | 76 | 31.5 |
| 0.5 | 1.1 | 53.48 | 102.54 | 75 | 30.9 |
| 0.57 | 1.22 | 53.56 | 90.16 | 76 | 30.9 |
| 0.64 | 1.35 | 53.74 | 91.54 | 77 | 32.4 |
| 0.71 | 1.42 | 52.12 | 101.28 | 77 | 38.7 |
| 0.79 | 1.35 | 51.98 | 109.14 | 78 | 46.9 |
| 0.86 | 1.5 | 50.83 | 108.45 | 76 | 41.3 |
| 0.93 | 1.54 | 52.45 | 100.74 | 75 | 43.7 |
| 1 | 1.79 | 54.91 | 94.19 | 74 | 45.1 |
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
