3~4GHz, Gain 43dB, Output power 50W, Efficiency 40%, SMA, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
New generation, small-sized RF power amplifier module, realizing RF signal amplification in wireless transmission field
| Parameters | Min | Typical | Max | Units | Note |
| Frequency | 3 | ~ | 4 | GHz | |
| Gain | 43 | dB | |||
| Flatness in band | ±1 | dB | |||
| Input VSWR | 1.5 | 2.5 | |||
| Output power | 50 | W | CW | ||
| Efficiency | 40 | % | |||
| Harmonic Rejection | 20 | dBc | |||
| ACP | 60 | dBc | |||
| Input level | 8 | dBm |
| Input connector | SMA-K |
| Output port | N -K |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +28±4V |
| Working current | 6.5A @ rated power output |
| Operation Temp. | -40~+65℃ Design assurance |

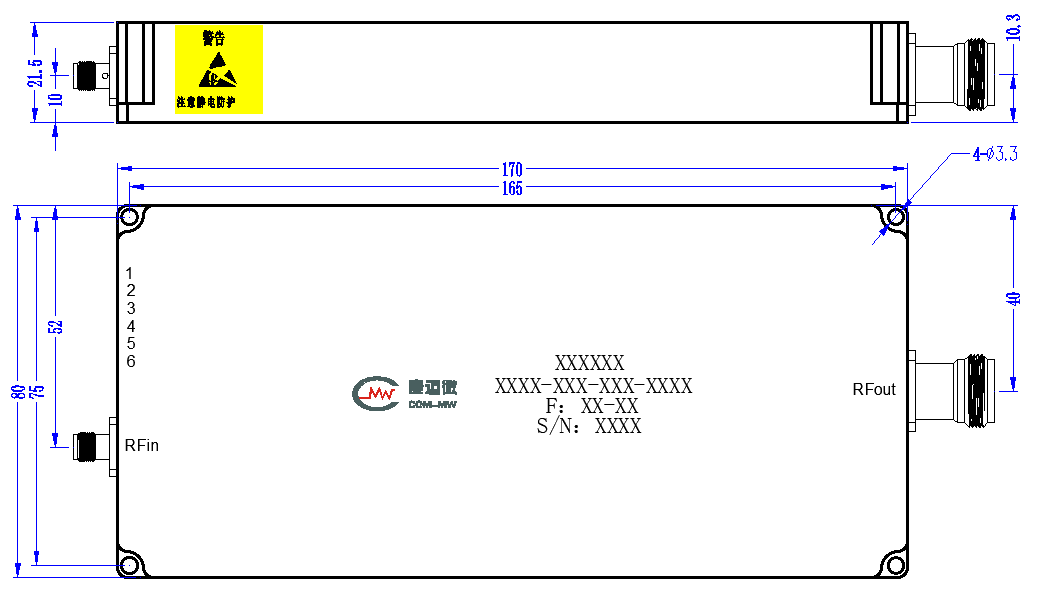

| No. | definition | Illustrate |
| 1,2 | +28V | V+, Two power supplies are required, and it is recommended to use 1-1.5mm2 power lines |
| 3,4 | GND | V-, The power supply ground must have two power sources, and it is recommended to use 1-1.5mm power supply lines |
| 5 | EN | 0(OFF)：0V(GND)； 1(ON)：5V |
| 6 | NC | Not used |
Power on sequence: GND →+28V → EN → RFin (first add low level, then gradually increase signal amplitude until output reaches rated output power).
The power-off sequence is opposite to the power on sequence
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please confirm that the input and output of the product are securely connected before powering on;
When the product is working, it cannot be unloaded;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
/
Connect to the antenna for operation, it is recommended to use a series isolator;
