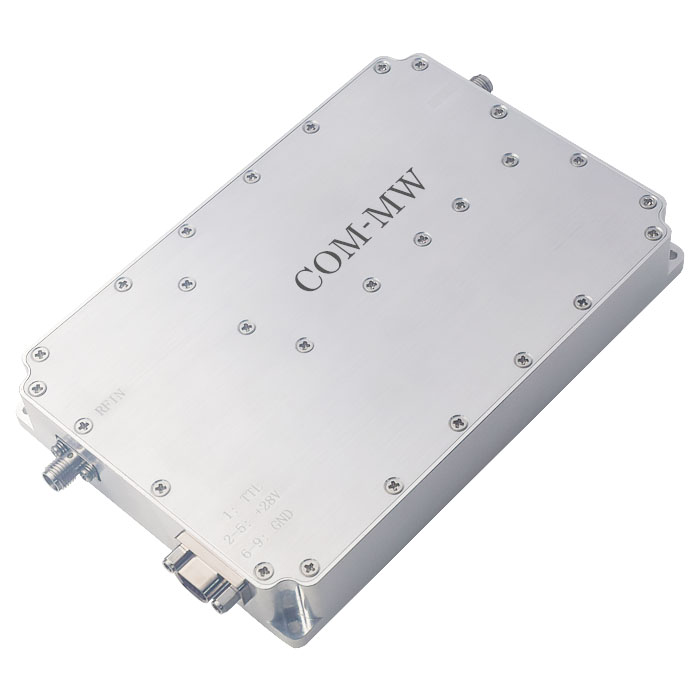

20~1000MHz, Gain45dB, Psat40dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 20 | ~ | 1000 | MHz |
| Gain | 45 | dB | ||
| Gain flatness | ±3 | dB | ||
| Input VSWR | 2.5 | |||
| Psat | 40 | dBm | ||
| Spur reduction | 60 | dBc | ||
| Harmonic Rejection | 15 | dBc | ||
| Max input power | 10 | dBm |
| Connector | SMA-K |
|---|---|
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +28V |
| Working current | 2000mA |
| Operation Temp. | -40~+70℃ Design assurance |

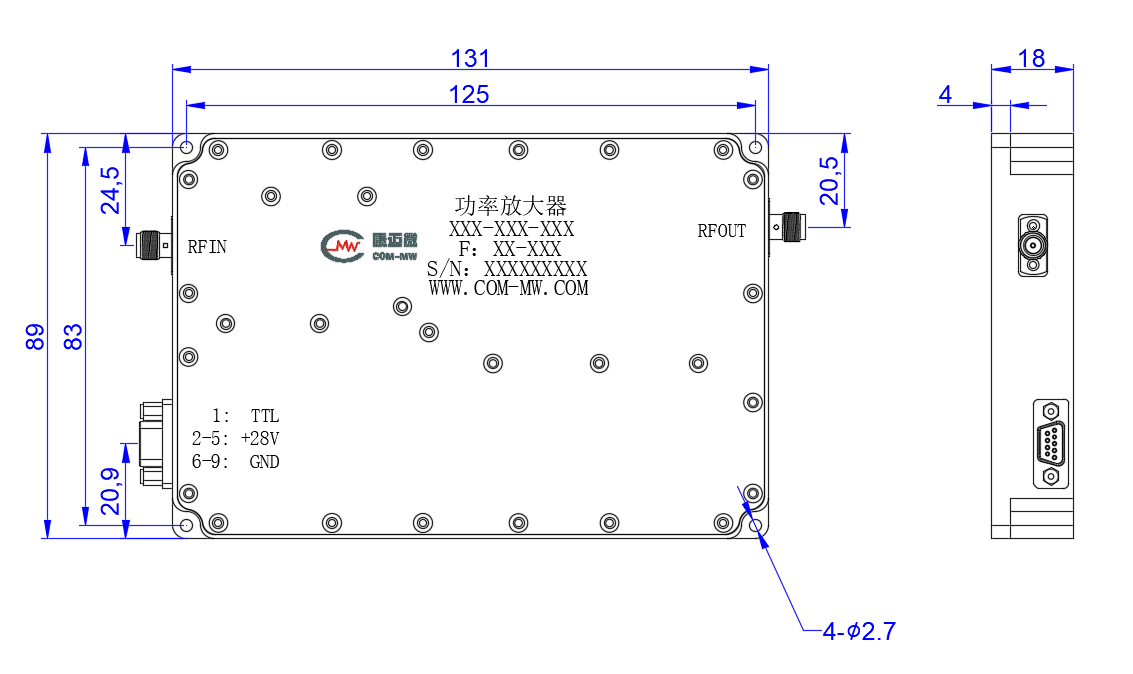

| No. | definition | Note |
|---|---|---|
| 1 | TTL level, enable | Low level PA off, high level PA on |
| 2,3,4,5 | +28V | |
| 6,7,8,9 | GND |

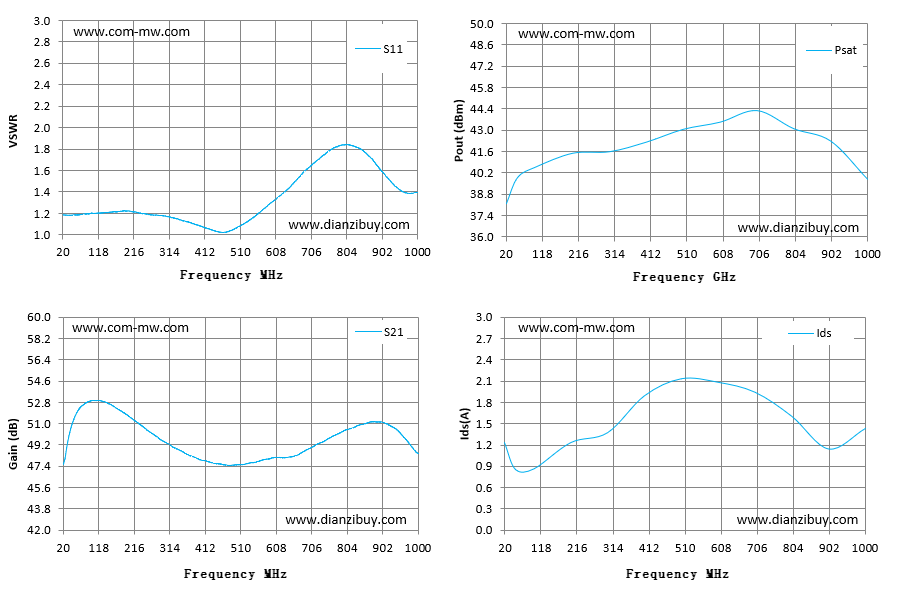

| Frequency MHz | S11 VSWR | S21 gain | S21 输出功率 | Ids 饱和电流 dB |
|---|---|---|---|---|
| 20 | 1.19 | 47.56 | 38.2 | 1.23 |
| 50 | 1.18 | 51.48 | 39.9 | 0.85 |
| 100 | 1.20 | 52.95 | 40.6 | 0.86 |
| 200 | 1.21 | 51.63 | 41.5 | 1.23 |
| 300 | 1.18 | 49.46 | 41.6 | 1.37 |
| 400 | 1.08 | 47.91 | 42.23 | 1.89 |
| 500 | 1.06 | 47.51 | 43.07 | 2.13 |
| 600 | 1.31 | 48.13 | 43.54 | 2.08 |
| 700 | 1.63 | 48.9 | 44.3 | 1.94 |
| 800 | 1.84 | 50.48 | 43.11 | 1.6 |
| 900 | 1.60 | 51.12 | 42.3 | 1.14 |
| 1000 | 1.40 | 48.45 | 39.8 | 1.43 |
