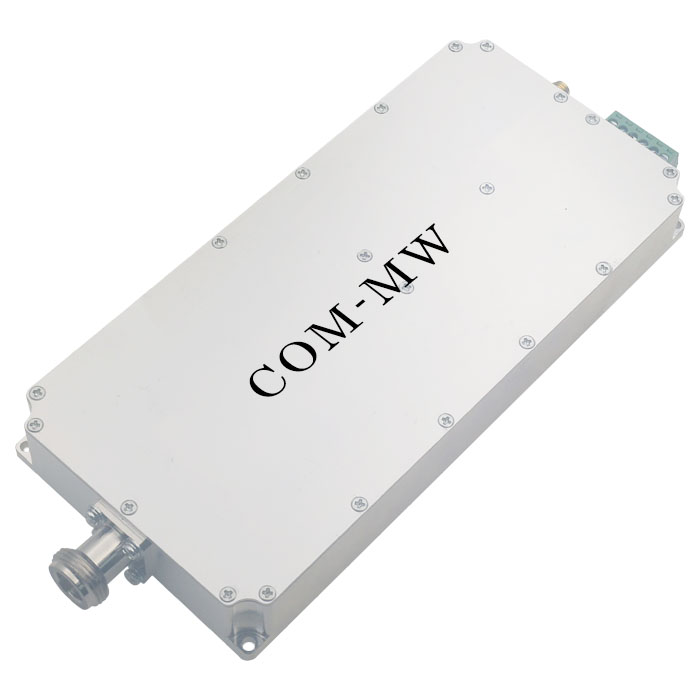

2~6GHz, Gain48dB, Output power30W, Output portN-F
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
宽带功率放大器
| Parameters | Min | Typical | Max | Units | Note |
|---|---|---|---|---|---|
| Frequency | 2 | ~ | 6 | GHz | |
| Gain | 48 | dB | Small signal gain | ||
| Flatness in band | ±6 | dB | |||
| Input VSWR | 2 | 2.4 | |||
| Output power | 30 | W | CW | ||
| Efficiency | 20 | % | |||
| Harmonic Rejection | 10 | dBc | |||
| Spur reduction | 65 | dBC | F0±300k | ||
| ACP | 55 | dBC |
| Input connector | SMA-F |
| Output port | N -F |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +28±4V |
| Working current | 8A |
| Working temperature | -40~+65℃ Design assurance |

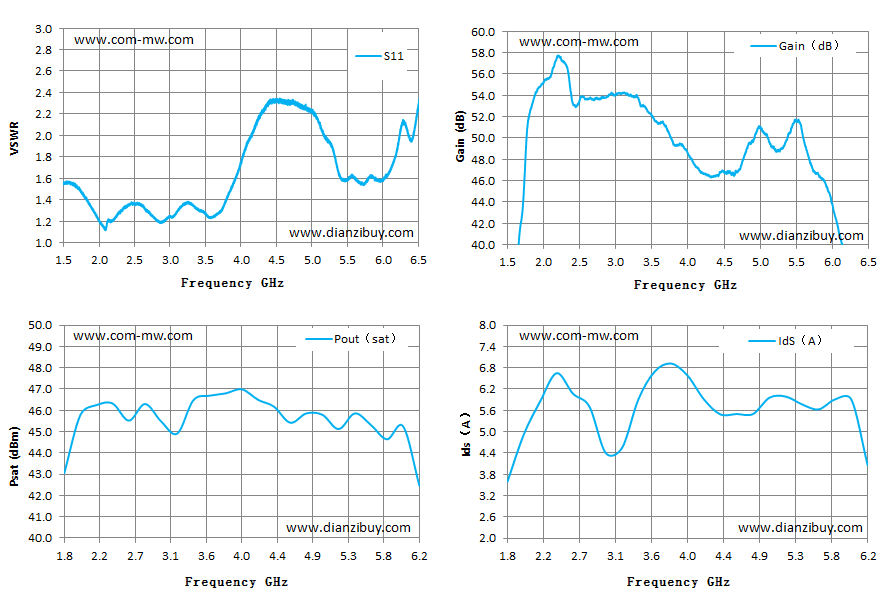

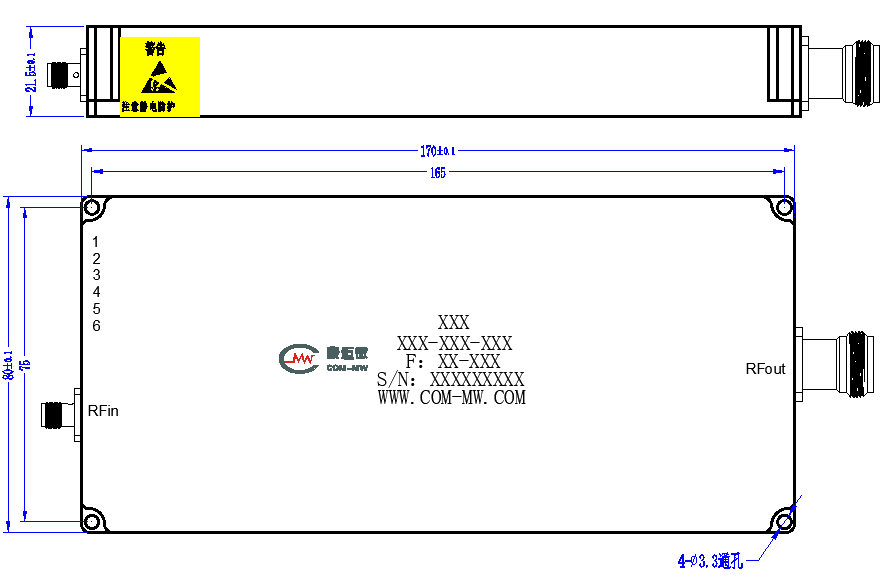

| F（GHz） | 2 | 2.6 | 3.2 | 3.8 | 4.4 | 5 | 5.6 | 6 |
|---|---|---|---|---|---|---|---|---|
| Pout（SAT）（dBm） | 45.79 | 45.52 | 44.91 | 46.80 | 46.17 | 45.79 | 45.31 | 45.24 |
| Pout（SAT）（W） | 37.93 | 35.64 | 30.97 | 47.86 | 41.39 | 37.93 | 33.96 | 33.41 |
| Ids（A） | 4.93 | 6.07 | 4.55 | 6.92 | 5.49 | 5.96 | 5.63 | 5.91 |
| Gain（dB） | 55.13 | 53.64 | 54.00 | 49.45 | 46.48 | 50.98 | 49.85 | 43.65 |
| ŋ（%） | 27.47 | 20.97 | 24.31 | 24.70 | 26.93 | 22.72 | 21.54 | 20.19 |
| 2nd harmonic rejection (dBc) | 16.10 | 25.40 | 23.20 | 29.50 | 38.60 | 53.70 | 49.90 | 54.20 |
| 3rd harmonic rejection (dBc) | 43.00 | 47.80 | 54.50 | 45.60 | 78.00 | 65.60 | 59.00 | 49.30 |
| 4th harmonic rejection (dBc) | 40.00 | 54.30 | 82.00 | 80.60 | 67.40 | 74.00 | 79.00 | 79.00 |
| 杂散抑制（dBC） | 73.80 | 75.20 | 72.10 | 73.20 | 72.10 | 74.20 | 75.10 | 74.60 |
| ACP（dBc） | 63.00 | 63.20 | 60.90 | 58.00 | 57.60 | 60.10 | 55.00 | 54.10 |
| No. | Name | Note |
|---|---|---|
| 1 | 28V | Suggest using multi-core copper wire with an area of 1-1.5 square millimeters |
| 2 | 28V | 50W以上放大器使用两根线 |
| 3 | GND | |
| 4 | GND | |
| 5 | EN | 0=关；5V=开；不连接默认关 |
| 6 | LOCK | 高电平输出，配合EN使用 |
