↓ Datasheet ↓ S-Parameters 939 KB

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	2	~	6	GHz
Gain	40			dB
Gain flatness		±2		dB
Input VSWR			2
P-1dB		37		dBm
Psat		43		dBm

Product Application

Connector	SMA-K
Impedance	50Ω
Surface	Black baking paint
Operation Temp.	-10~+40℃ Design assurance
Application
Characteristic	Adapter power supply

上电顺序

1、连接适配器；

2、打开电源开关；

3、打开EN开关；

Note: The sequence is reversed when turning off the power

请严格按照上电顺序控制电源，否则有烧毁风险

Port Definition

Port identification	definition	Illustrate
RFin	RF input Port	SMA-K
RFout	RF Output Port	SMA-K，使用时，不能悬空
DC	DC power input	+28V直流电源，插孔5.52.1，兼容5.52.5
GND	GND
ON/OFF	Power switch
EN	Enable control switch

Parts list

1	Standard configuration	Equipped with a power adapter

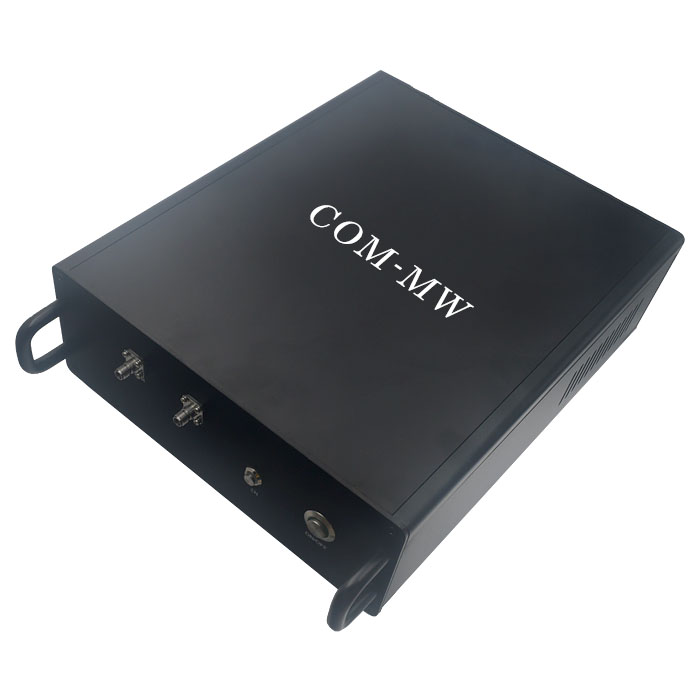

Reference picture

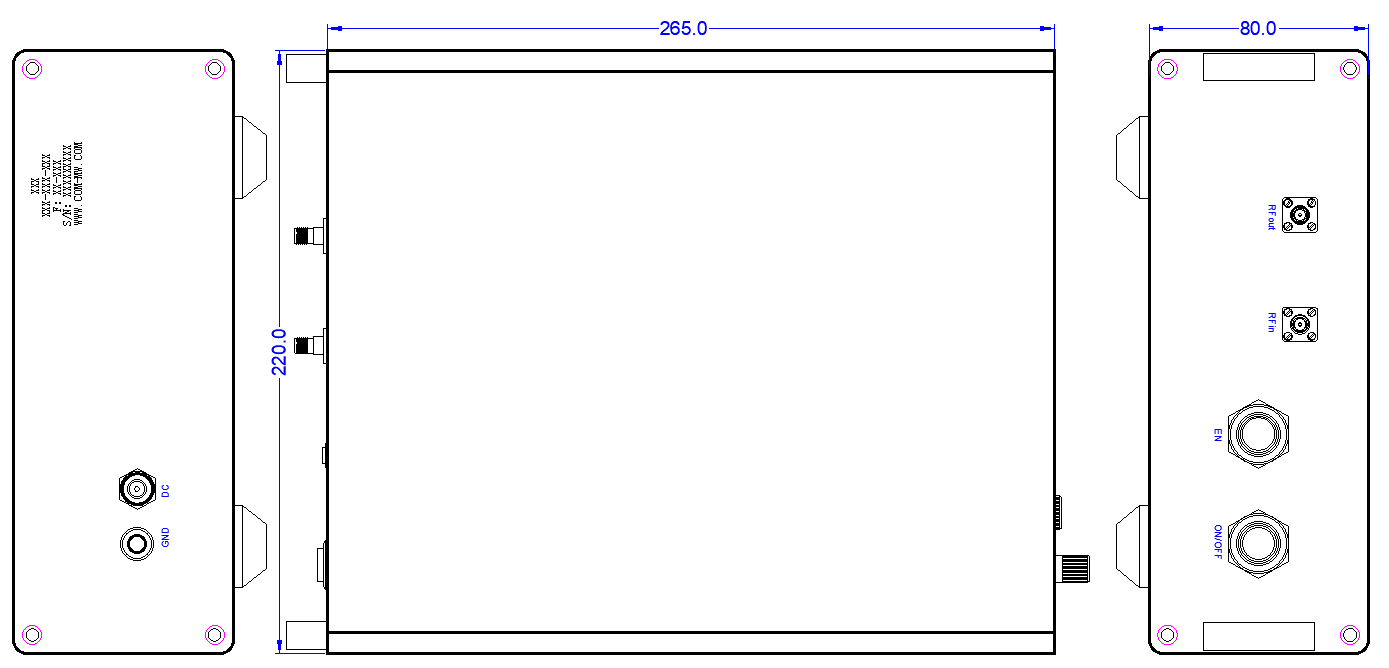

Configuration(mm)

Note

1、使用时射频输出端口不能悬空；

2、长时间使用时请注意工作温度，必要时需要增加外部散热措施；

Power amplifier DPA8-2-6G-17032
