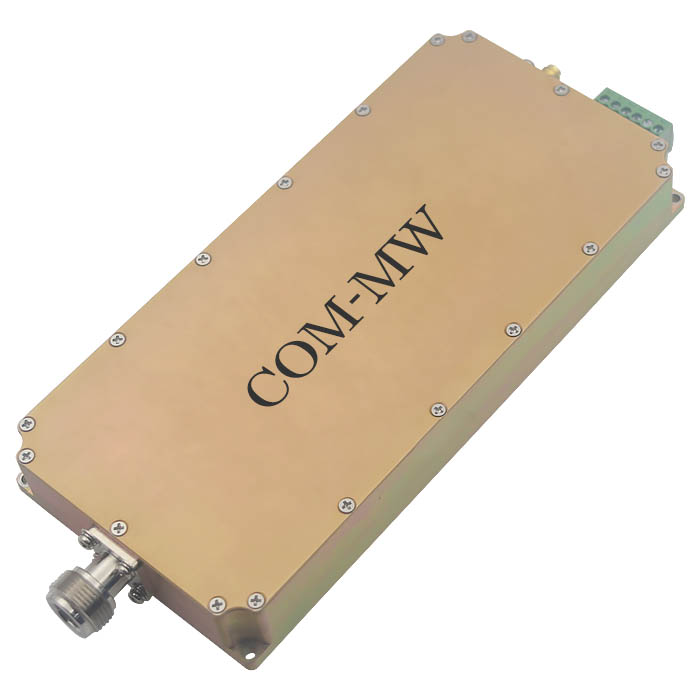

2.4~2.5GHz, Gain45dB, Output power49dBm, Output portN-F
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units | Note |
|---|---|---|---|---|---|
| Frequency | 2.4 | ~ | 2.5 | GHz | |
| Gain | 45 | dB | Saturated gain | ||
| Flatness in band | ±5 | dB | |||
| Output power | 49 | dBm | CW signal | ||
| Efficiency | 30 | % | |||
| Harmonic Rejection | 25 | dBc | |||
| Spurious suppression | 40 | dBc | F0±400kHz | ||
| ACP | 60 | dBc |

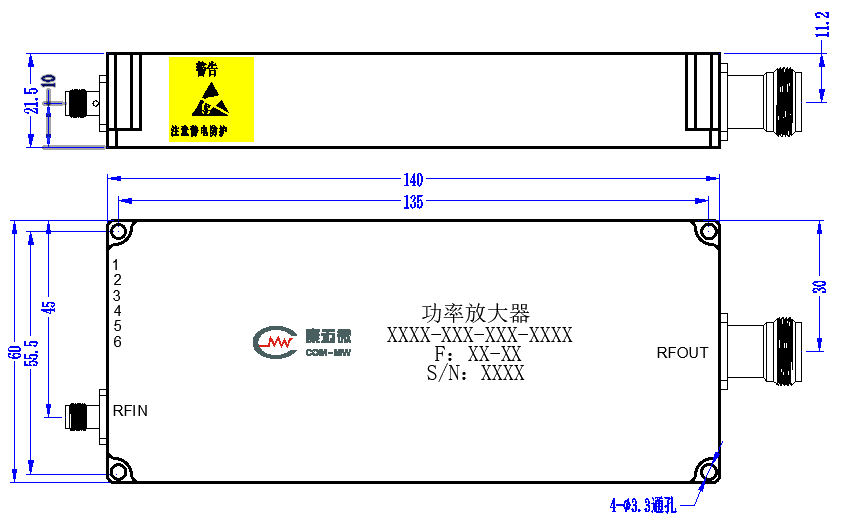

| Input connector | SMA-F |
| Output port | N -F |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +28±4V |
| Working current | 15A |
| Operation Temp. | -40~+65℃ Design assurance |
| Other | 适用于满功率状态工作，增益非线性 |
| No. | definition | Note |
|---|---|---|
| 1,2 | +28V | |
| 3,4 | GND | |
| 5 | EN | |
| 6 | NC |

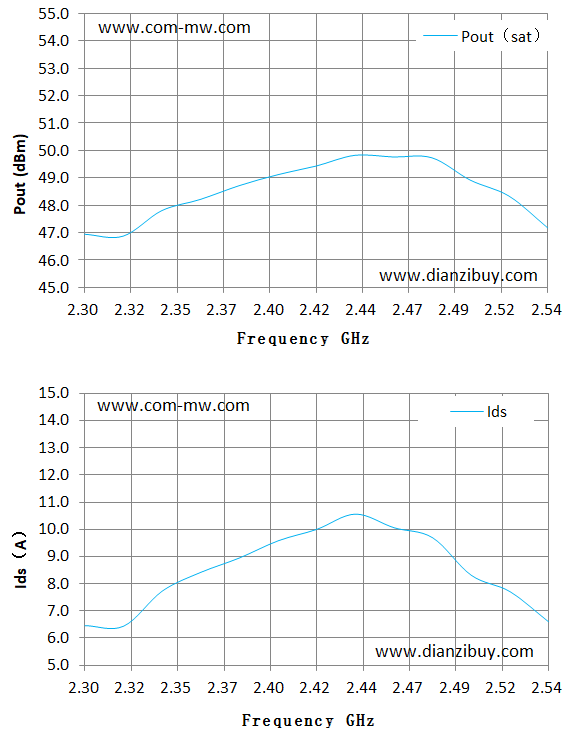

| F（GHz） | 2.38 | 2.4 | 2.42 | 2.44 | 2.46 | 2.48 | 2.5 | 2.52 |
|---|---|---|---|---|---|---|---|---|
| Pin（dBm) | 2.39 | 3.43 | 3.40 | 2.47 | -2.44 | -5.42 | -5.52 | -0.65 |
| Pout（SAT）（dBm） | 48.71 | 49.11 | 49.43 | 49.82 | 49.76 | 49.73 | 48.91 | 48.33 |
| Pout（SAT）（W） | 74.30 | 81.47 | 87.70 | 95.94 | 94.62 | 93.97 | 77.80 | 68.07 |
| Ids（A） | 8.95 | 9.58 | 10.00 | 10.56 | 10.06 | 9.69 | 8.31 | 7.71 |
| Gain(Sat)(dB) | 46.32 | 45.68 | 46.03 | 47.35 | 52.20 | 55.15 | 54.43 | 48.98 |
| ŋ(%) | 29.64 | 30.37 | 31.32 | 32.44 | 33.59 | 34.63 | 33.43 | 31.53 |
| 2次谐波抑制（dBC） | 32.20 | 32.00 | 31.70 | 32.00 | 29.90 | 35.00 | 39.30 | 44.80 |
| 3次谐波抑制（dBC） | 26.00 | 26.30 | 26.70 | 27.60 | 28.40 | 33.80 | 35.10 | 36.60 |
| 4th harmonic rejection (dBc) | 50.90 | 52.00 | 50.40 | 52.70 | 45.70 | 52.60 | 55.10 | 59.30 |
| 杂波抑制（dBC） | 58.80 | 60.00 | 57.80 | 58.00 | 52.40 | 50.20 | 53.00 | 56.50 |
| ACP（dBc） | 63.60 | 63.30 | 64.80 | 64.20 | 63.70 | 63.60 | 64.60 | 63.80 |
