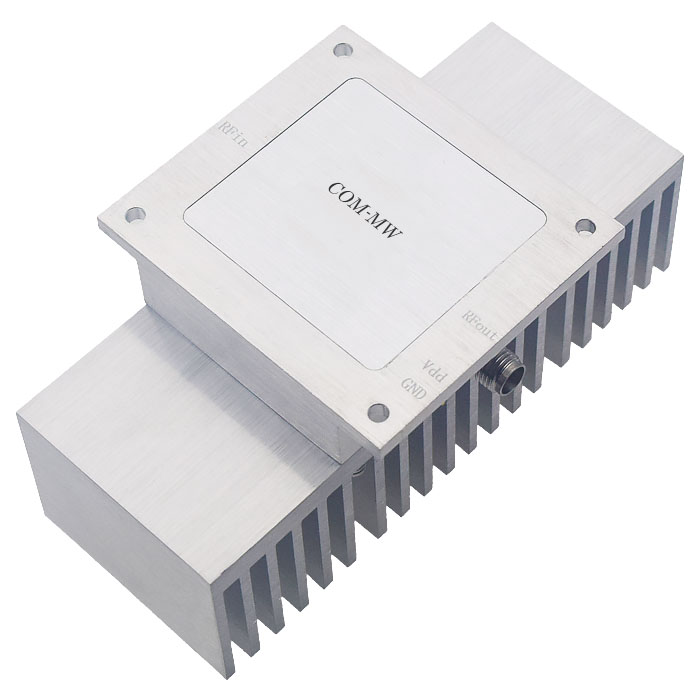

2~18GHz, Gain 35dB, P-1dB 35dBm, Psat 37dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

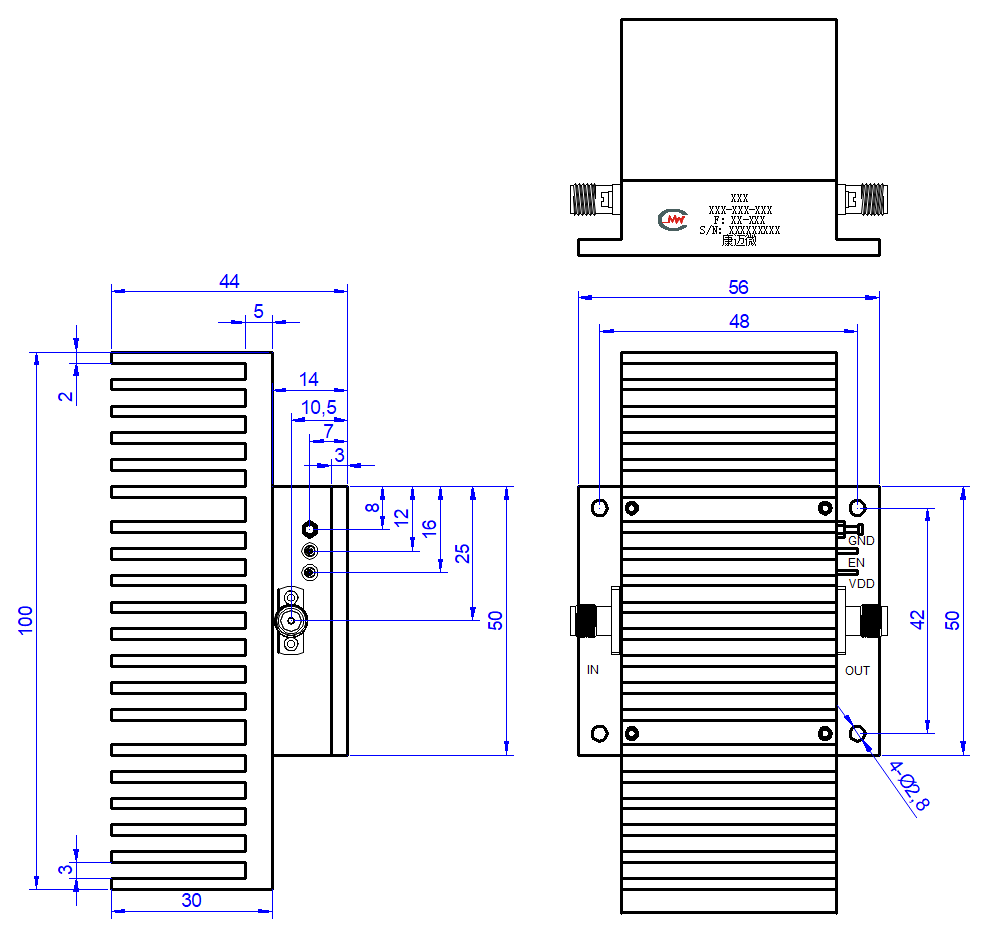

| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 18 | GHz |
| Gain | 35 | dB | ||
| Gain flatness | ±3 | dB | ||
| Input VSWR | 2.5 | |||
| P-1dB | 35 | dBm | ||
| Psat | 37 | dBm | ||
| Spur reduction | 60 | dBc | ||
| Max input power | 10 | dBm |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Working voltage | +28V |
| Working current | 2000mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | IP3≥42dBm Design assurance |
| No. | Name | definition |
| 1 | VDD | +28V power supply |
| 2 | EN | Power amplifier enable, high level (3.3V~5V) power amplifier on, low level (0V/GND) power amplifier off |
| 3 | GND | Ground |

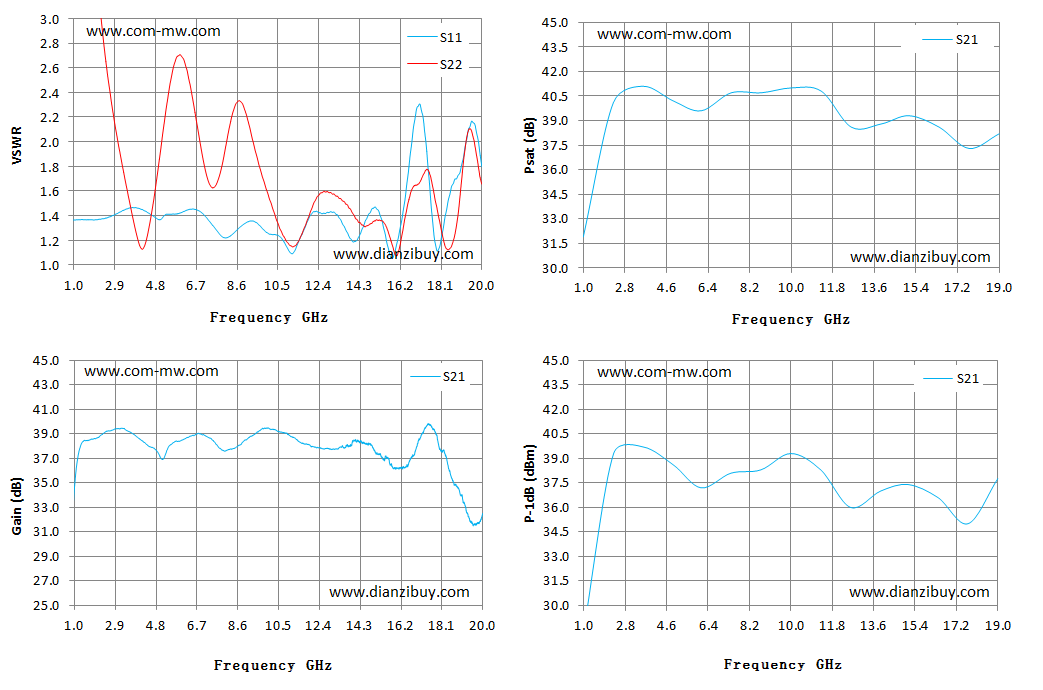

| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain | S21 Psat dBm | S21 P-1dB |
| 1 | 1.36 | 8.52 | 34.57 | 31.9 | 28.5 |
| 2.3 | 1.38 | 2.94 | 38.94 | 40.1 | 39.3 |
| 3.6 | 1.46 | 1.5 | 39.12 | 41.1 | 39.7 |
| 4.9 | 1.37 | 1.97 | 36.93 | 40.2 | 38.6 |
| 6.1 | 1.44 | 2.67 | 38.84 | 39.6 | 37.2 |
| 7.4 | 1.33 | 1.63 | 38.52 | 40.7 | 38.1 |
| 8.7 | 1.3 | 2.33 | 38.08 | 40.7 | 38.3 |
| 10 | 1.26 | 1.59 | 39.48 | 41 | 39.3 |
| 11.3 | 1.12 | 1.15 | 38.58 | 40.8 | 38.3 |
| 12.6 | 1.42 | 1.59 | 37.78 | 38.6 | 36 |
| 13.9 | 1.21 | 1.44 | 38.04 | 38.8 | 37 |
| 15.1 | 1.45 | 1.36 | 37.36 | 39.3 | 37.4 |
| 16.4 | 1.51 | 1.36 | 36.25 | 38.6 | 36.6 |
| 17.7 | 1.36 | 1.64 | 39.36 | 37.3 | 35 |
| 19 | 1.76 | 1.59 | 33.96 | 38.2 | 37.77 |
