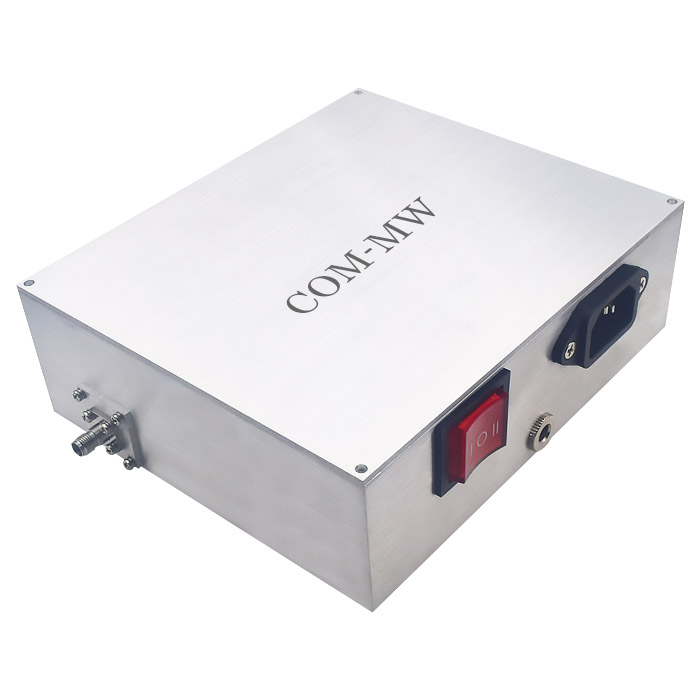

18~40GHz, Gain30dB, Psat30dBm, 2.92, Support 220V AC power supply
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, multiple power supply modes.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | 4 | dB | ||
| VSWR | 2.5 | |||
| Psat | 30 | dBm |
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +15V or 220V |
| Working current | 1000mA@15V |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Support 220V AC power supply |
1. The power switch is set to neutral by default and can only control 220V power supply. 2. DC power supply has no switch, plug and play, and the DC power supply interface is DC5.5mm (outer diameter) * 2.5mm (inner diameter). 3. Matching+ 15v@2a ac adapter
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
