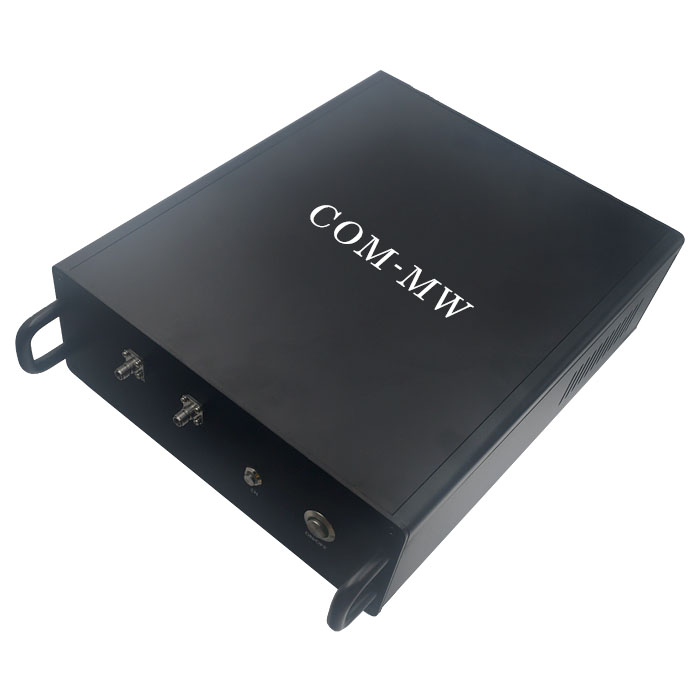

Frequency18~38GHz, Gain30, Pout（SAT）35dBm, Adapter power supply
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 18 | ~ | 38 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | ±3 | dB | ||
| Input VSWR | 2.5 | |||
| Pout（SAT） | 35 | dBm | ||
| Max input power | 0 | dBm | ||
| phase noise degradation | 3 | dB |
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Operation Temp. | -20~+40℃ Design assurance |
| Characteristic | Adapter power supply |
1、打开“ON/OFF”电源；
2、打开“”EN”开关。

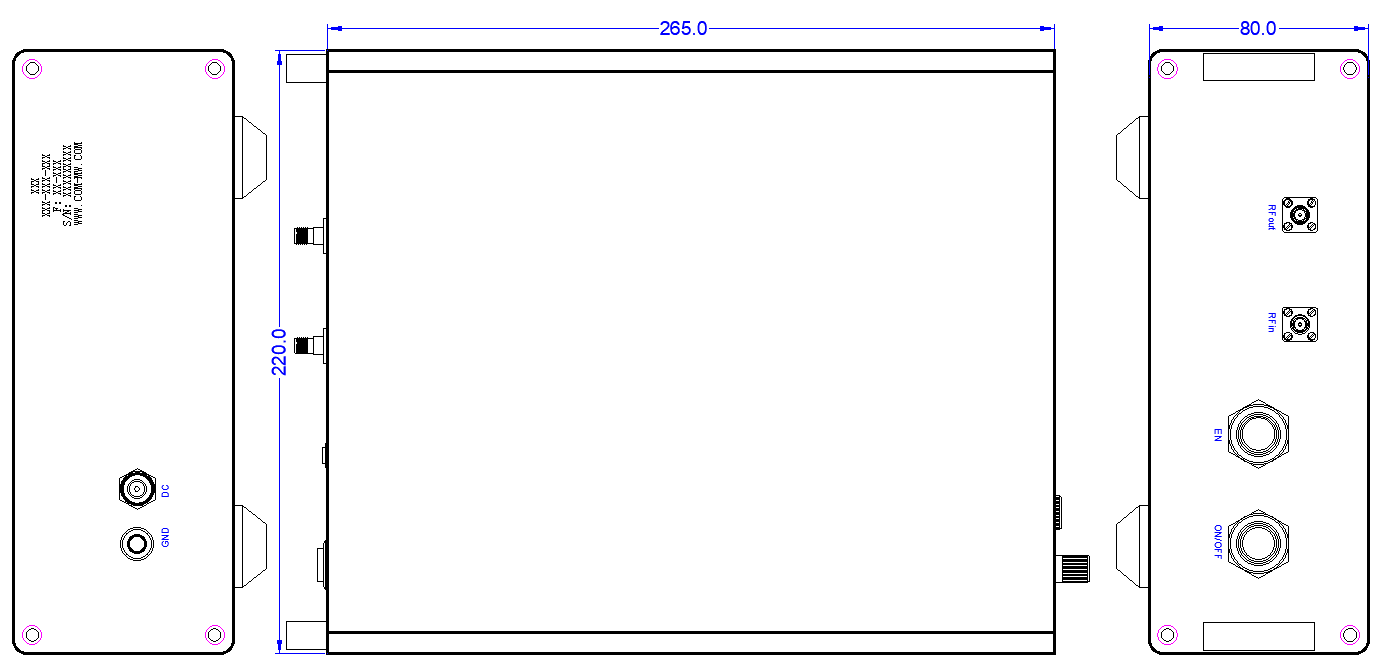

| Port identification | definition | Illustrate |
|---|---|---|
| DC | DC power input | +18V@3A适配器供电，插孔5.5*2.1，兼容5.5*2.5 |
| GND | GND | |
| ON/OFF | Power switch | |
| EN | Enable control switch | After activation, the light will be on, and the internal module will enter a static working mode. |
| 1 | Standard configuration | Equipped with a power adapter |
|---|
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | Please strictly follow the power-on sequence when applying power, and reverse the operation when turning off the power. |
