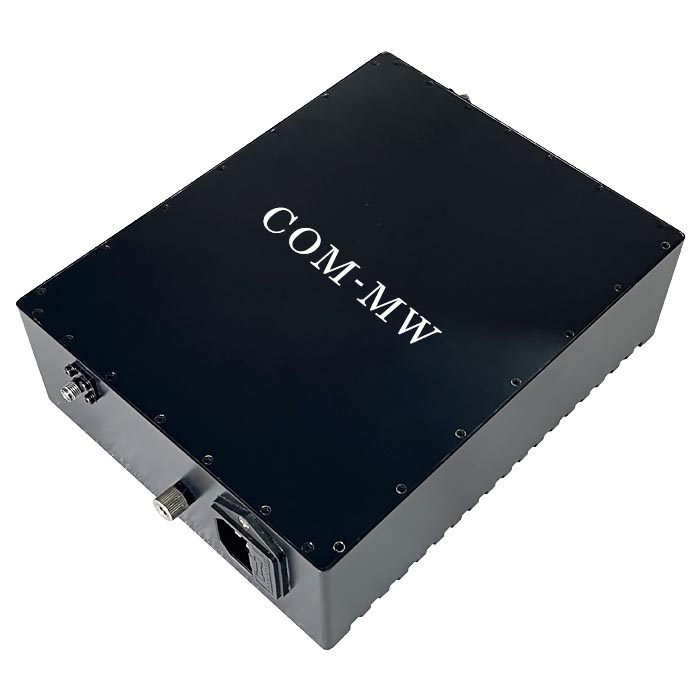

100~3000MHz, Gain40dB, Psat37dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 100 | ~ | 3000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | 3 | dB | ||
| Input VSWR | 1.5 | |||
| Psat | 37 | dBm | ||
| Spur reduction | 60 | dBc | ||
| Harmonic Rejection | 15 | dBc |
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| color | Grey black, follow P517 (grey black) S05. II Y requirements |
| Working voltage | +220V |
| Relative humidity | 95% Design assurance |
| Operation Temp. | -15~+45℃ Design assurance |
| Storage Temp. | -25~+75℃ Design assurance |
| No. | Content | Note |
|---|---|---|
| 1 | Equipped with temperature detection and over temperature protection functions | |
| 2 | Equipped with input over power protection function | |
| 3 | Equipped with output port VSWR protection function | |
| 4 | With waterproof function | |
| 5 | Has signal bypass function, which means the signal is directly connected when turned off |
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
