2~6GHz, 增益（sat）44dB, Output power48dBm, Output portN-F
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

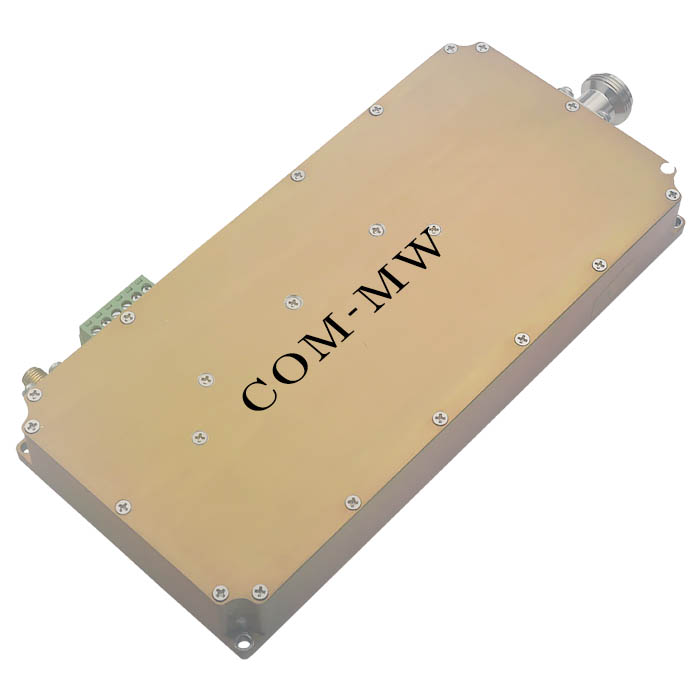

Broadband, high gain, power amplifier
| Parameters | Min | Typical | Max | Units | Note |
|---|---|---|---|---|---|
| Frequency | 2 | ~ | 6 | GHz | |
| 增益（sat） | 44 | dB | |||
| Flatness in band | ±5 | dB | |||
| Input VSWR | 2.5 | ||||
| Output power | 48 | dBm | CW | ||
| Efficiency | 20 | % | |||
| Harmonic Rejection | 9 | dBc | |||
| Spur reduction | 44 | 70 | dBC | F0±300k | |
| ACP | 54 | dBC |
| Input connector | SMA-F |
| Output port | N -F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +28±4V |
| Working current | 15A |
| Working temperature | -40~+65℃ Design assurance |
注意：EN地和电源地需连接良好

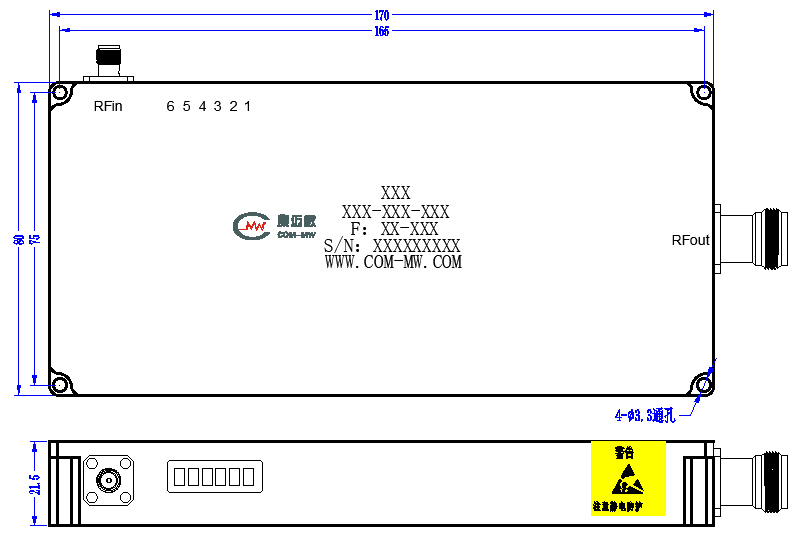

| No. | definition | Note |
|---|---|---|
| 1,2 | +28V | V+，建议采用1-1.5mm2的多芯铜线 |
| 3,4 | GND | V-，建议采用1-1.5mm2的多芯铜线 |
| 5 | EN | “使能"控制.0(OFF）：0V（接地）；1（ON）：5V |
| 6 | NC |

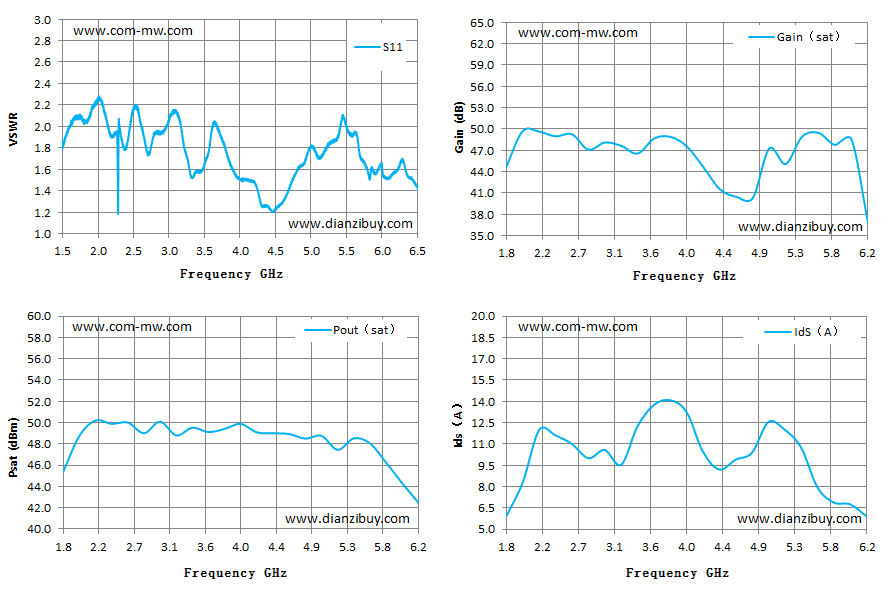

| F（GHz） | 2 | 2.6 | 3.2 | 3.8 | 4.4 | 5 | 5.6 | 6 |
|---|---|---|---|---|---|---|---|---|
| Pout（SAT）（dBm） | 48.78 | 50.01 | 48.80 | 49.42 | 49.01 | 48.76 | 48.06 | 44.30 |
| Pout（SAT）（W） | 75.50 | 100.23 | 75.85 | 87.49 | 79.61 | 75.16 | 63.97 | 26.91 |
| Ids（A） | 8.33 | 11.00 | 9.54 | 14.09 | 9.20 | 12.55 | 7.93 | 6.75 |
| Gain（dB） | 49.68 | 49.25 | 47.62 | 48.88 | 41.52 | 47.25 | 49.44 | 48.53 |
| ŋ（%） | 32.37 | 32.54 | 28.39 | 22.17 | 30.90 | 21.38 | 28.81 | 14.24 |
| 2nd harmonic rejection (dBc) | 19.40 | 13.60 | 34.30 | 35.60 | 38.00 | 40.60 | 33.50 | 29.60 |
| 3rd harmonic rejection (dBc) | 16.90 | 31.70 | 38.50 | 25.80 | 59.00 | 56.50 | 53.00 | 39.80 |
| Stray (dBc) | 75.00 | 75.00 | 78.00 | 76.00 | 70.00 | 70.00 | 73.00 | 69.00 |
| ACP（dBc） | 63.50 | 63.20 | 61.30 | 58.40 | 57.60 | 60.60 | 55.40 | 54.00 |
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
