Downloads

↓ Datasheet ↓ 3D Model 1 MB

Main specifications

Parameters	Min	Typical	Max	Units	Note
Frequency	2.0	~	2.4	GHz
Gain	45	47		dB	Small signal gain
Flatness in band		±1.5		dB
Input VSWR		1.6	2.1
Output power		17	29	W	CW
Efficiency	13	18		%
Harmonic Rejection	70	72		dBc
Spurious suppression	52	55		dBc	@F0±200K
ACP		68		dBc

Other parameters

Input connector	SMA-K
Output port	N -K
加电接口形式	M12-7反装座
Connector material	Stainless steel
Impedance	50Ω
Surface	Color conductive oxidation
Working voltage	+28±4V
Working current	5A
Module temperature during operation	-20~+40℃ Design assurance
Other	When working for a long time, the temperature of the casing is below 40 ℃.

Typical test data

Frequency GHz	2	2.1	2.2	2.3	2.4
VSWR（IN）	1.82	1.27	1.3	1.41	1.19
Psat（dBm）	43.61	44.34	42.9	42.41	42.15
Psat（W）	22.96	27.16	19.49	17.42	16.41
Gain（dB）	48.17	49.37	48.43	48.72	47.59
Ids（A）	4.7	4.26	4.32	4.71	4.28
ŋ(%)	17.45	22.77	16.12	13.21	11.85
2nd harmonic rejection (dBc)	71	73	77	81.9	80
3rd harmonic rejection (dBc)	80	76.5	80.89	74.6	67.2
Spurious suppression	52	64	61.9	56.8	54.7
ACP（dBc）	73.6	74.2	73	72.6	71.6

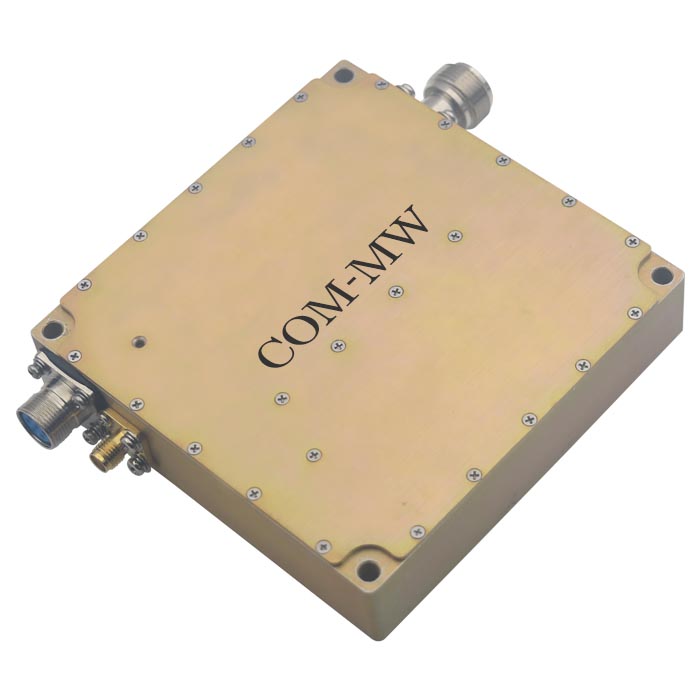

Reference picture

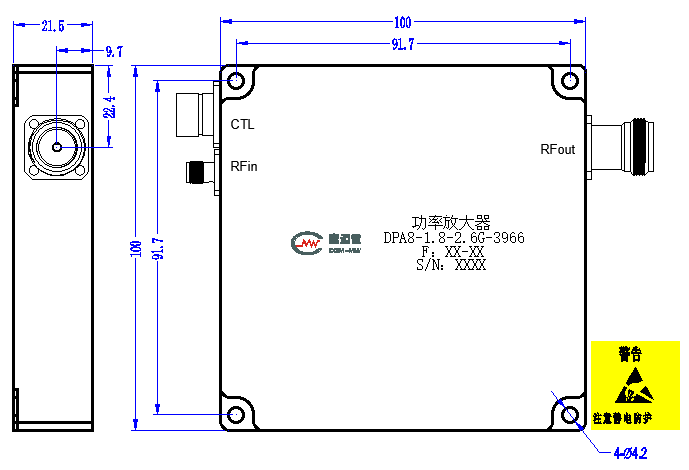

Configuration

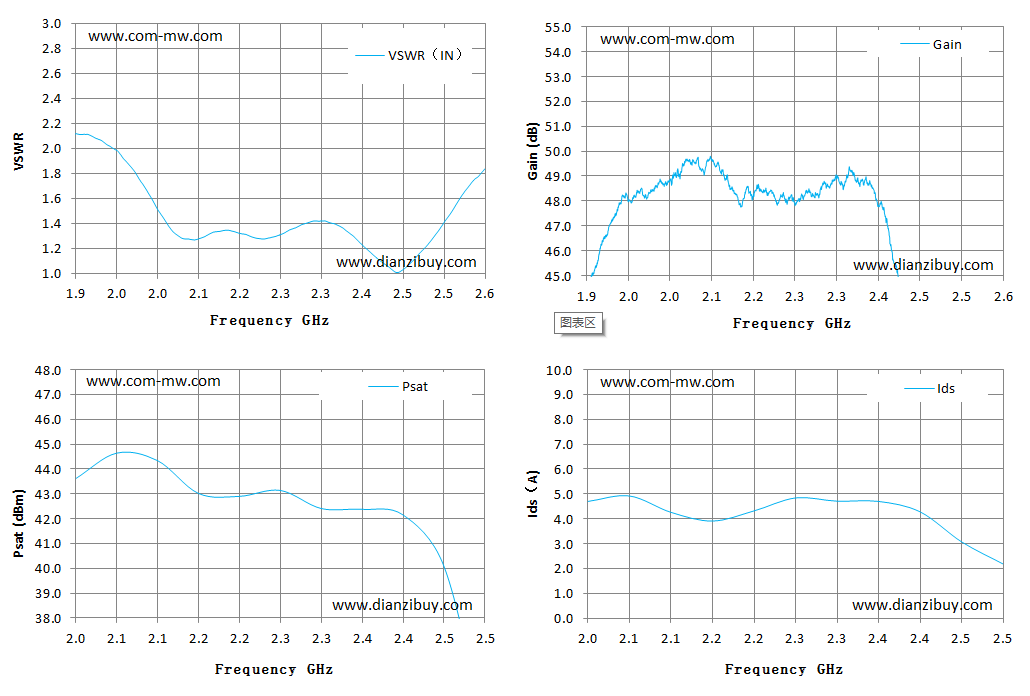

Typical test curve

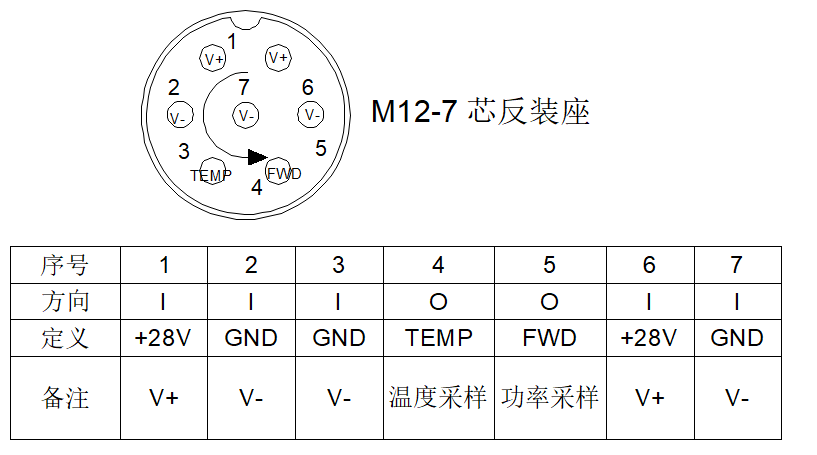

Port Definition

Notes:

Pay attention to the wiring position of the connector;

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;

Equipped with overheating, open circuit and short circuit protection;

Clean the surface of the product, do not soak the product in a cleaning solution

Power amplifier DPA8-1.8-2.6G-3966
