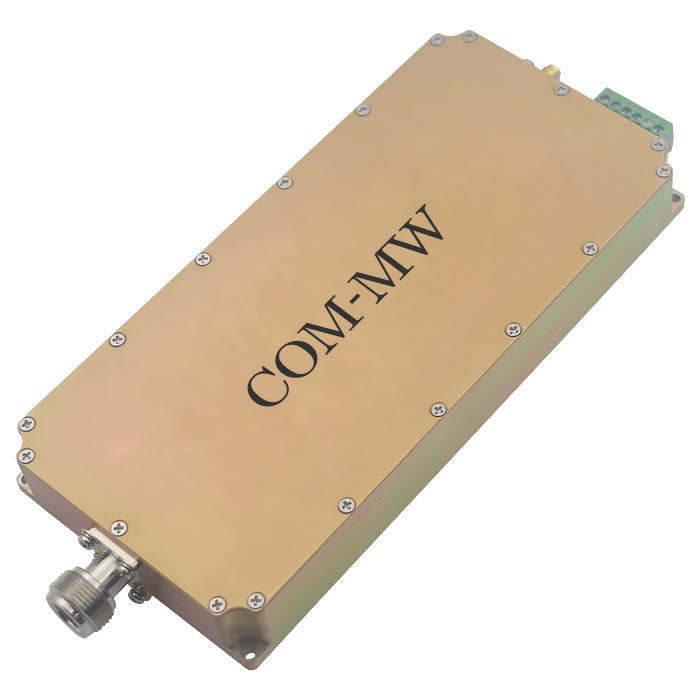

1~2.4GHz, Gain31dB, Output power45dBm, Output portN
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

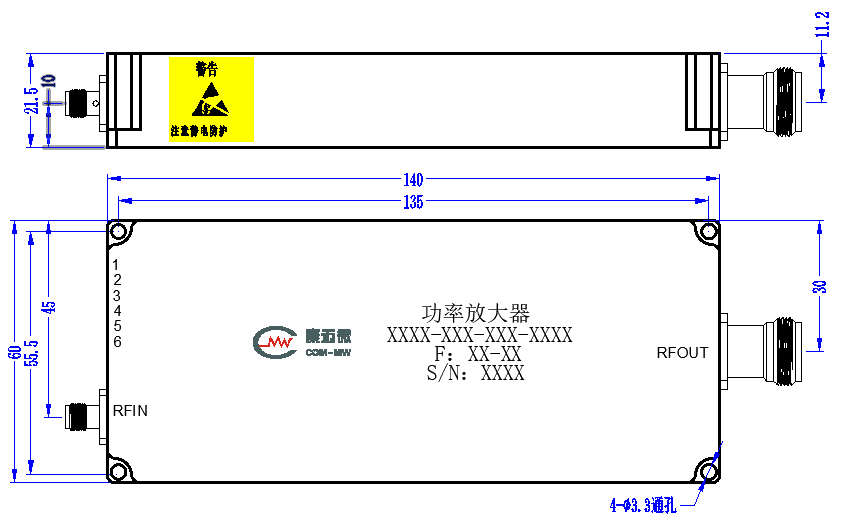

| Parameters | Min | Typical | Max | Units | Note |
|---|---|---|---|---|---|
| Frequency | 1 | ~ | 2.4 | GHz | |
| Gain | 31 | dB | Saturated gain | ||
| Flatness in band | ±5 | dB | |||
| Output power | 45 | dBm | CW | ||
| Efficiency | 30 | % | |||
| Harmonic Rejection | 18 | dBc | |||
| Spurious suppression | 60 | dBc | F0±300kHz | ||
| ACP（dBc） | 60 | dBc |
| Input connector | SMA-F |
| Output port | N -F |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +28V±4V |
| Working current | 7A |
| Operation Temp. | -40~+60℃ Design assurance |
| Other | For long-term work, it is recommended to keep the temperature below 40 ℃ |
| No. | definition | Note |
|---|---|---|
| 1，2 | +28V | 供电线用1-1.5mm² |
| 3，4 | GND | 供电线用1-1.5mm² |
| 5 | EN | 0（OFF）：0V（接地）；1（ON）：3.3~5V；不建议悬空使用 |
| 6 | NC | 使用时悬空 |

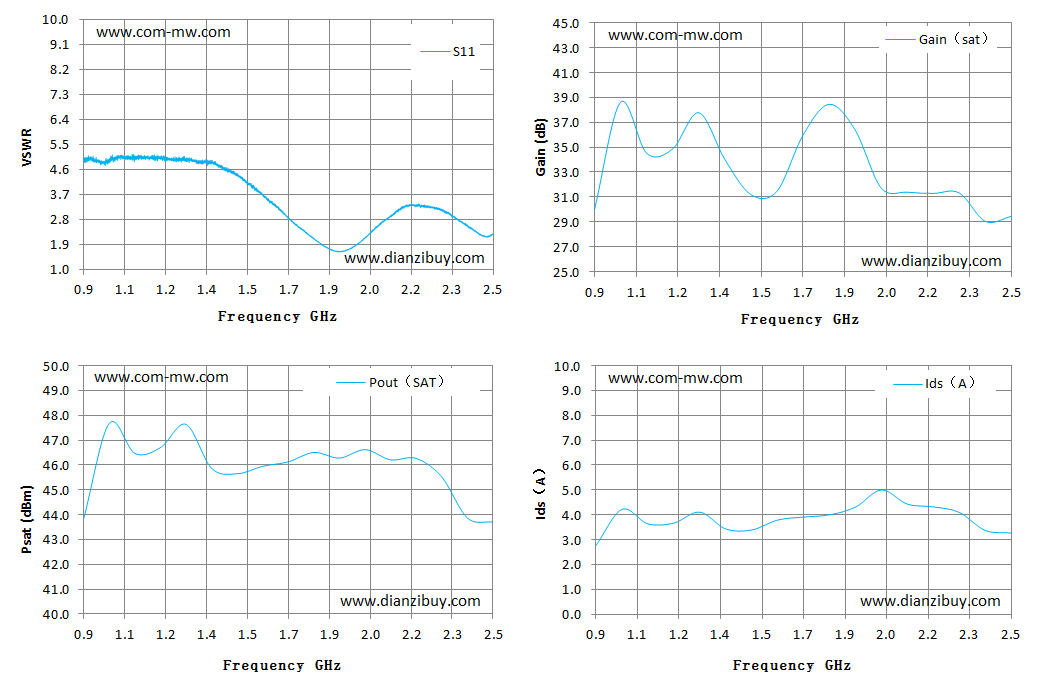

| F（GHz） | 1 | 1.2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 |
|---|---|---|---|---|---|---|---|---|
| Pin（dBm) | 3.27 | 4.13 | 1.44 | 3.09 | 5.16 | 7.79 | 5.78 | 5.83 |
| Pout（SAT）（dBm） | 46.95 | 45.06 | 45.85 | 43.75 | 45.38 | 45.52 | 44.64 | 42.26 |
| Pout（SAT）（W） | 49.54 | 32.06 | 38.45 | 23.71 | 34.51 | 35.64 | 29.10 | 16.82 |
| Ids（A） | 3.87 | 2.92 | 3.34 | 2.67 | 3.30 | 4.11 | 3.37 | 2.54 |
| Gain（SAT）（dB） | 43.68 | 40.93 | 44.41 | 40.66 | 40.22 | 37.73 | 38.86 | 36.43 |
| ŋ（%） | 45.72 | 39.21 | 41.12 | 31.71 | 37.35 | 30.97 | 30.84 | 23.65 |
| 2次谐波抑制（dBC） | 17.90 | 9.80 | 20.00 | 35.50 | 37.00 | 40.00 | 38.10 | 47.40 |
| 3次谐波抑制（dBC） | 20.50 | 23.00 | 20.00 | 41.00 | 46.20 | 41.90 | 41.10 | 28.60 |
| 4th harmonic rejection (dBc) | 28.90 | 41.30 | 46.20 | 46.70 | 41.50 | 44.40 | 53.80 | 45.40 |
| 杂波抑制（dBC） | 55.40 | 58.20 | 56.40 | 53.30 | 54.30 | 53.40 | 55.40 | 56.70 |
| ACP（dBc） | 68.70 | 68.90 | 66.40 | 65.00 | 65.10 | 63.40 | 62.90 | 62.60 |
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Equipped with output on/off control interface and built-in protection function;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
