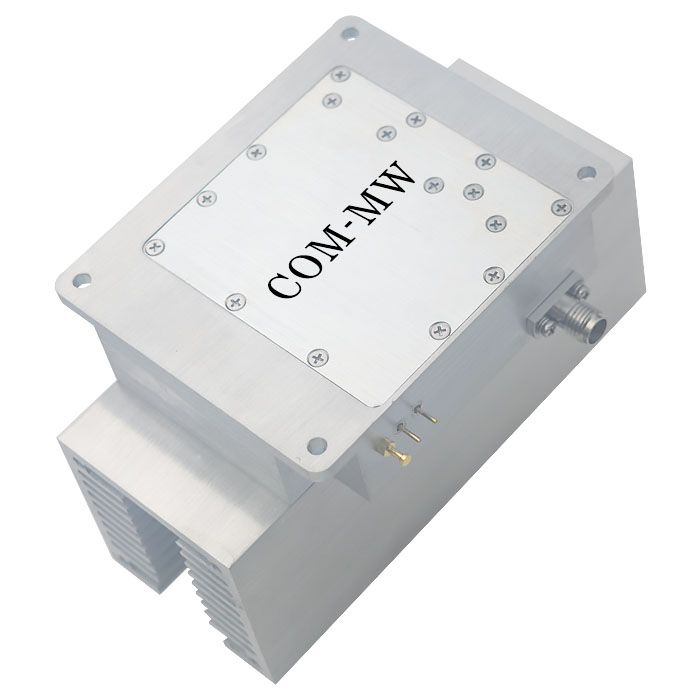

1000~14000MHz, Gain35dB, Psat39dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

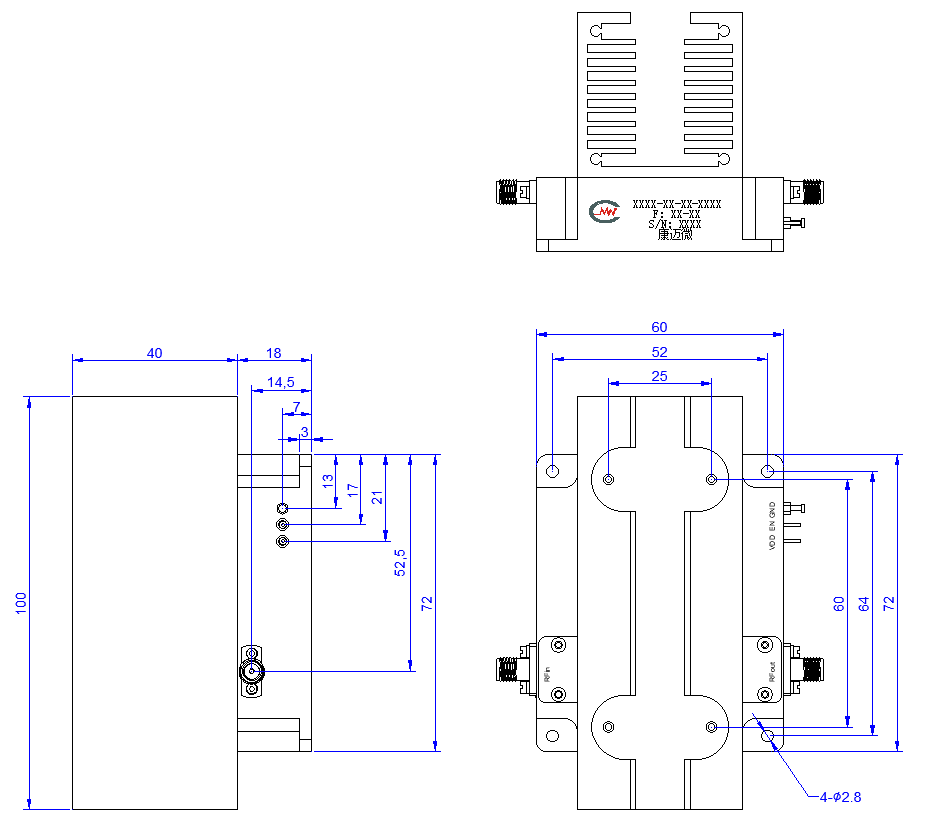

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1000 | ~ | 14000 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | ±2 | dB | ||
| Input VSWR | 2 | |||
| Psat | 39 | 40 | dBm |
| Connector | SMA-F or K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +28V |
| Working current | 2500mA |
| Operation Temp. | -40~+60℃ Design assurance |
| No. | definition | Note |
|---|---|---|
| 1 | VDD | +28V供电 |
| 2 | EN | Enable power amplifier, release high-level power, turn off low-level power amplifier |
| 3 | GND | Ground |
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
