Product features

Broadband, detachable heat sink.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	600	~	18000	MHz
Gain	38	40		dB@line
Gain flatness		±3		dB
VSWR			2.5
Psat	30			dBm
Harmonic Rejection		13		dBc@Posat
Spurious suppression		65		dBc
Max input power			10	dBm

Other parameters

Connector	SMA-K
Connector material	Stainless steel
Impedance	50Ω
Surface	Conductive oxidation
Working voltage	+15V
Working current	1000mA
Operation Temp.	-40~+70℃

Typical test data

Fequency（GHz）	0.6	2.94	5.79	8.63	11.47	14.31	17.16	20
VSWR in	2.02	1.67	1.49	1.60	1.47	1.93	1.85	1.92
VSWR out	1.31	1.32	1.39	1.31	1.19	1.38	1.65	1.57
GAIN（dB）Line	44.24	41.81	40.49	40.69	40.40	40.40	40.72	39.30
P-dBout（dBm）	32.18	33.12	34.18	34.17	32.80	32.18	32.52	31.74
Ids-1dB（A)	0.76	0.79	0.81	0.79	0.80	0.78	0.82	0.82
Pout（sat）（dBm）	32.73	33.40	34.14	34.32	33.44	33.01	32.85	31.97
Ids（A）	0.77	0.79	0.81	0.79	0.85	0.85	0.86	0.87
Pin（sat）（dBm）	-9.72	-7.46	-7.89	-7.86	-6.67	-6.60	-7.84	-7.74
Gain（sat）（dB）	42.45	40.86	42.03	42.18	40.11	39.61	40.69	39.71
2nd harmonic rejection (dBc)	25.69	18.40	15.56	13.59	17.30	18.20	22.66	25.00
Stray (dBc)	65.8	65.5	65.2	65.1	66.1	66.8	66.5	67.3

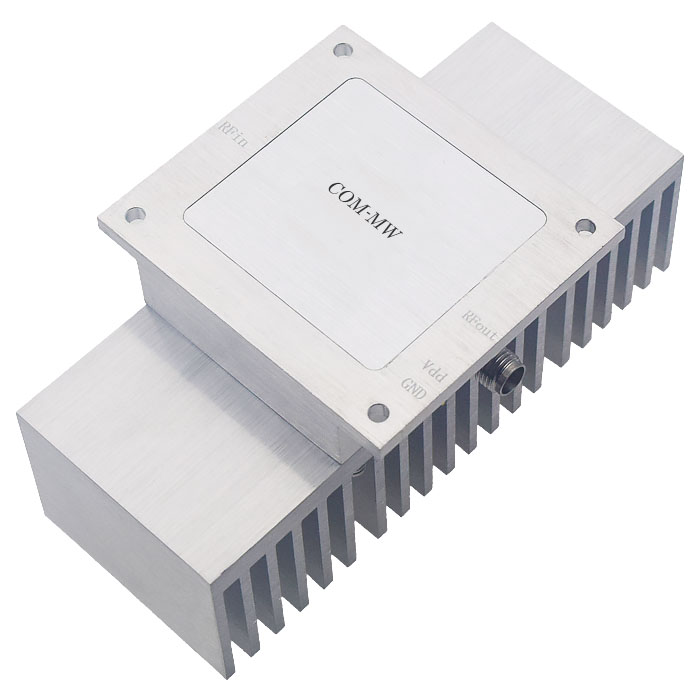

Reference picture

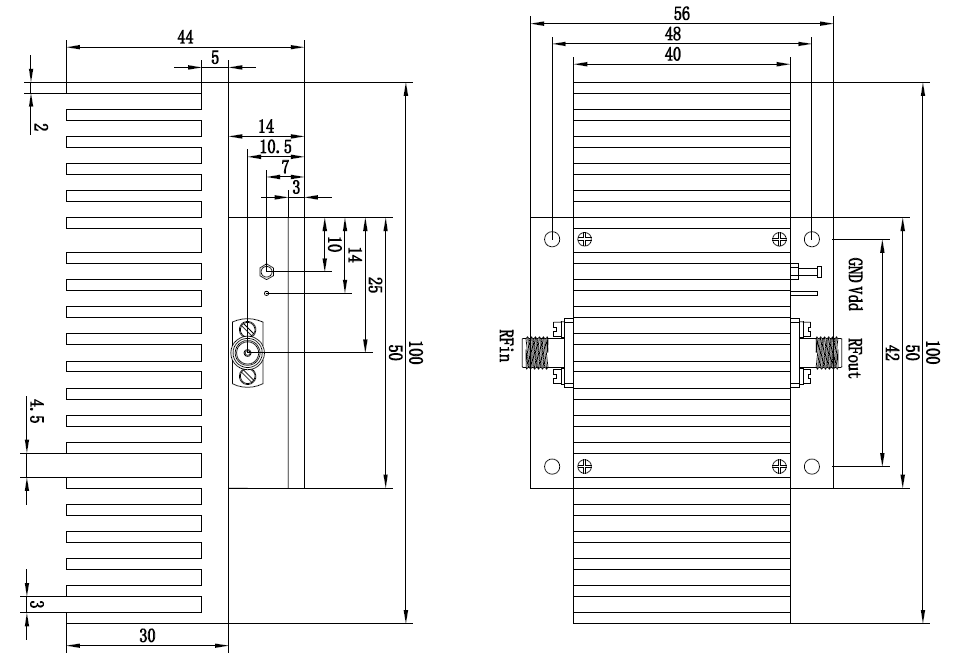

Configuration

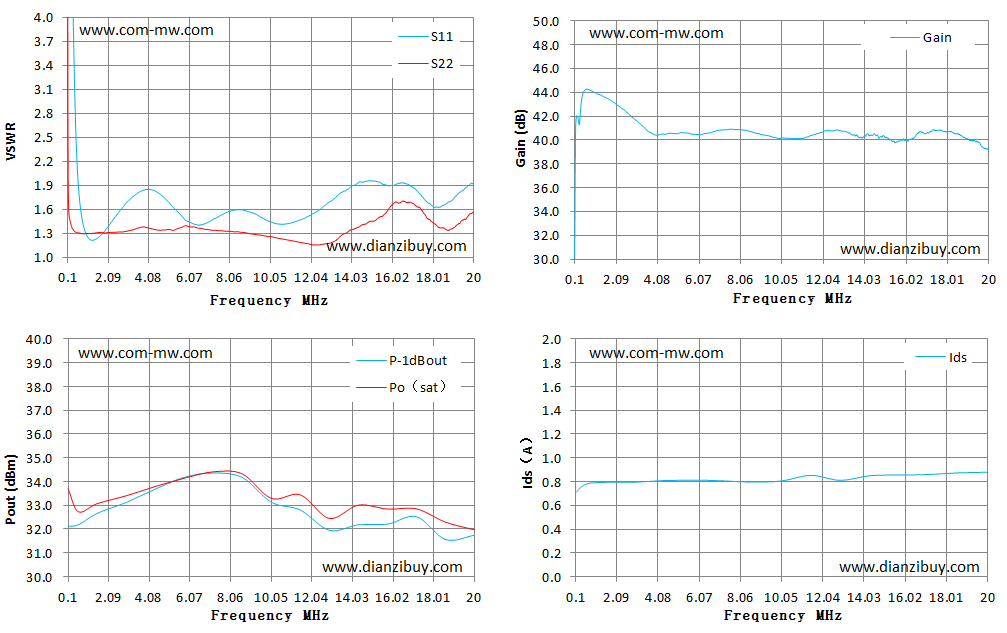

Typical test curve

Note

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;

长期工作时，请增加外部辅助散热措施

产品输出端不能空载。

Clean the surface of the product, do not soak the product in cleaning solution for cleaning.

Power amplifier DPA8-0.6-18G-4010
