Supports 220V AC and DC power supply
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 500 | ~ | 10000 | MHz |
| Gain | 35 | 40 | dB | |
| Gain flatness | ±3 | dB | ||
| VSWR | 2 | |||
| P-1dB | 30 | dBm |
| Connector | N-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Operation Temp. | -20~+60℃ Design assurance |
| Characteristic | Supports 220V AC and DC power supply |

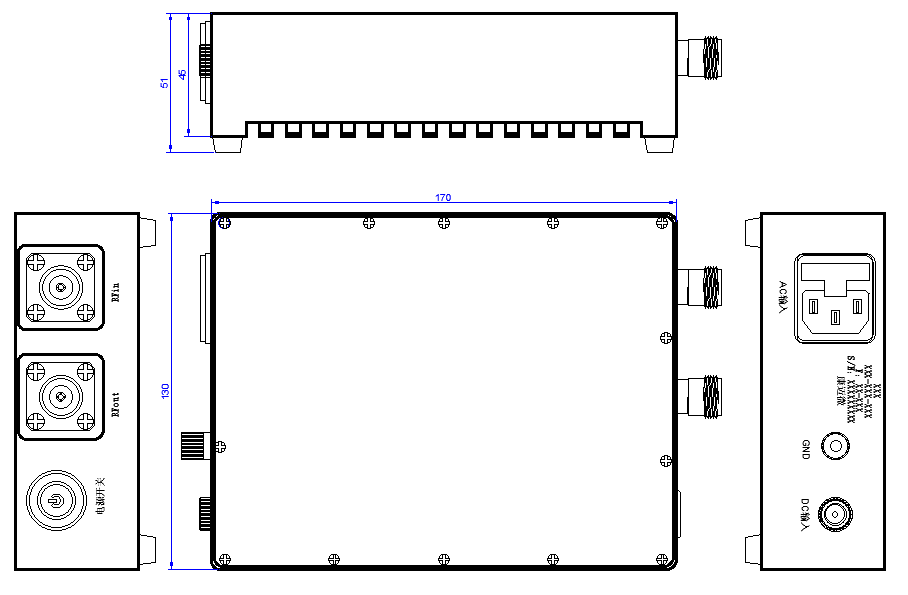

| 1 | RF Port | N-K |
|---|---|---|
| 2 | Power supply method 1 | Input 220v AC |
| 3 | Power supply method 2 | DC power supply, interface DC 5.5mm (outer diameter) * 2.1mm (inner aperture) 220V power adapter for power supply |
| 5 | Operation Temp. | -20 ~ + 60 ℃ Design assurance |
| 6 | Surface color | Anodizing treatment (blue) |
| 7 | Shell Material | Shell aluminum material |
| 8 | DC output | The DC power supply voltage is determined by the input voltage of the internal module. |
| 9 | Instructions for using the power switch | 220V and DC power supply cannot be used simultaneously. |
| 1 | Standard configuration | AC power cord |
|---|---|---|
| 2 | Optional | Equipped with a power adapter |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
