400~22000MHz, Gain40dB, Psat30dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

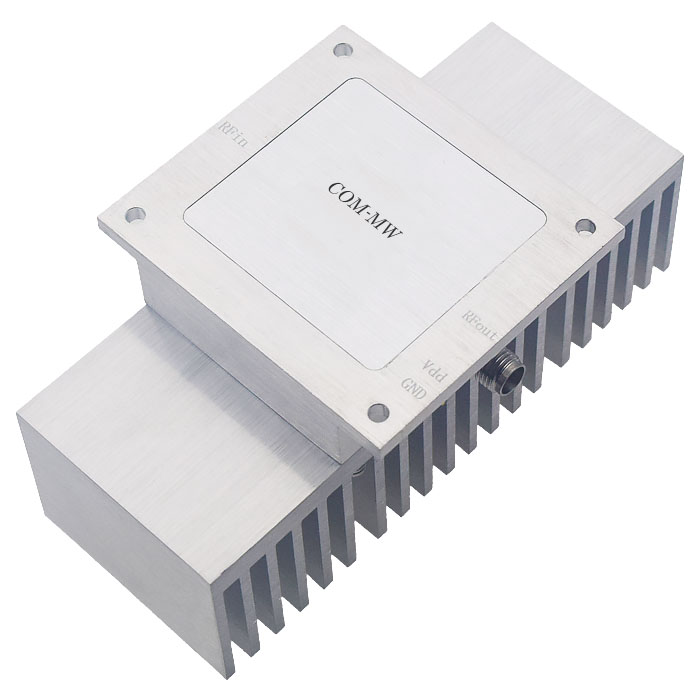

Broadband, detachable heat sink.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 400 | ~ | 22000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±3 | dB@0.4~2G | ||
| Gain flatness | ±2.5 | dB@2~22G | ||
| VSWR | 2.5 | |||
| Psat | 30 | dBm | ||
| Harmonic Rejection | 15 | dBc | ||
| Max input power | 0 | dBm |
| Connector | SMA-K |
|---|---|
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +15V |
| Working current | 1000mA |
| Operation Temp. | -40~+70℃ Design assurance |

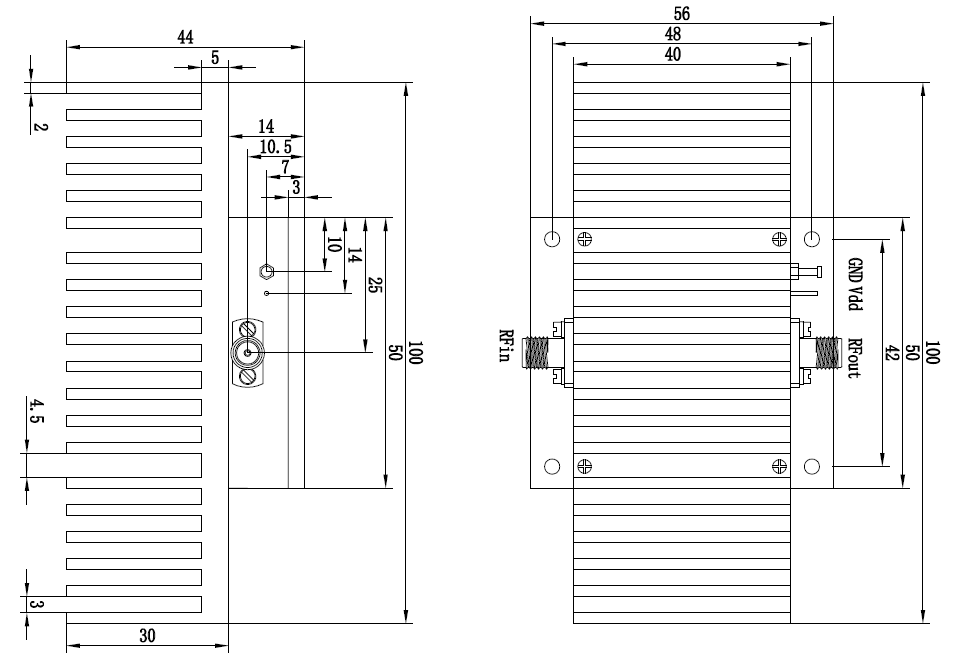

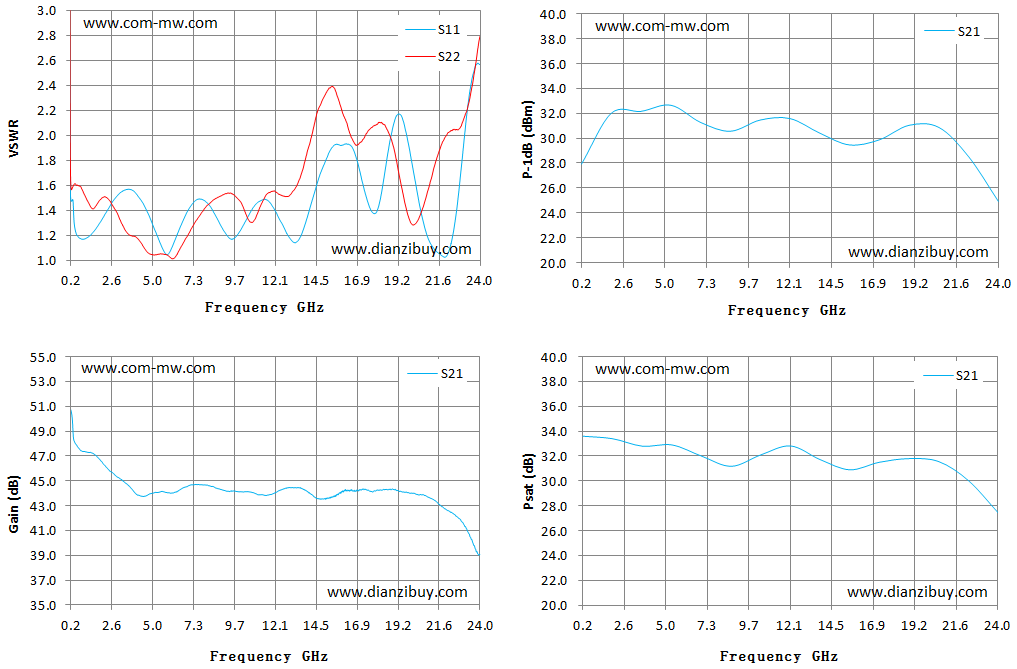

| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain dB | S21 P-1 dBm | S21 Psat dBm | 二次谐波抑制 dbc | 三次谐波抑制 dbc |
|---|---|---|---|---|---|---|---|
| 0.20 | 1.48 | 1.59 | 50.75 | 27.92 | 33.60 | 31.10 | 20.30 |
| 1.90 | 1.31 | 1.49 | 46.72 | 32.00 | 33.40 | 28.60 | 16.50 |
| 3.60 | 1.57 | 1.21 | 44.59 | 32.16 | 32.80 | 22.30 | 15.80 |
| 5.30 | 1.17 | 1.05 | 44.06 | 32.65 | 32.90 | 24.20 | 16.60 |
| 7.00 | 1.40 | 1.20 | 44.56 | 31.27 | 32.00 | 28.80 | 15.80 |
| 8.70 | 1.34 | 1.51 | 44.39 | 30.56 | 31.18 | 21.90 | 18.30 |
| 10.40 | 1.33 | 1.37 | 44.14 | 31.46 | 32.10 | 23.50 | 24.40 |
| 12.10 | 1.40 | 1.55 | 44.03 | 31.58 | 32.82 | 18.70 | 21.80 |
| 13.80 | 1.29 | 1.79 | 44.28 | 30.41 | 31.72 | 23.50 | 48.50 |
| 15.50 | 1.92 | 2.39 | 43.78 | 29.46 | 30.90 | 17.90 | 37.70 |
| 17.20 | 1.61 | 1.97 | 44.37 | 29.87 | 31.51 | 18.30 | 35.50 |
| 18.90 | 2.05 | 1.94 | 44.36 | 31.04 | 31.80 | 24.20 | / |
| 20.60 | 1.37 | 1.40 | 43.88 | 30.87 | 31.56 | 29.20 | / |
| 22.30 | 1.13 | 2.04 | 42.48 | 28.52 | 30.03 | 28.90 | / |
| 24.00 | 2.57 | 2.80 | 39.07 | 24.92 | 27.45 | 27.40 | / |
