300~1200MHz, Gain45dB, Output power50W, SMA, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Narrowband, high power.
| Parameters | Min | Typical | Max | Units | Note |
|---|---|---|---|---|---|
| Frequency | 300 | ~ | 1200 | MHz | |
| Gain | 45 | dB | |||
| Flatness in band | ±4 | dB | |||
| Input RL | -12 | dB | |||
| Output power | 50 | W | CW signal | ||
| Efficiency | 40 | % | |||
| Total harmonic distortion | 10 | dBc | |||
| Input level | 10 | dBm |

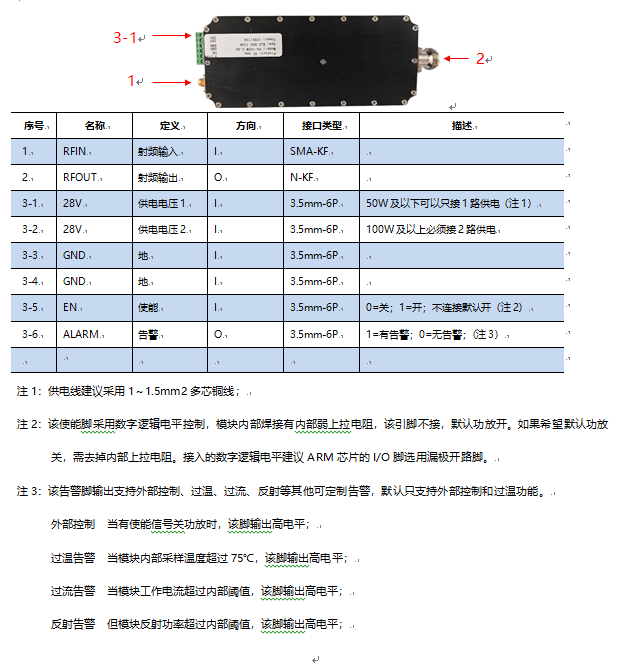

| Input connector | SMA-K |
| Output port | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +28±4V |
| Working current | 11A |
| Operation Temp. | -40~+75℃ Design assurance |
| Other | 1、 具有输出开关控制接口、内置保护功能 |
| 2. If there are strict requirements for harmonic and spurious indicators, it is recommended to connect the output to a filter | |
| 3. For long-term work, it is recommended to keep the temperature below 40 ℃ |
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
