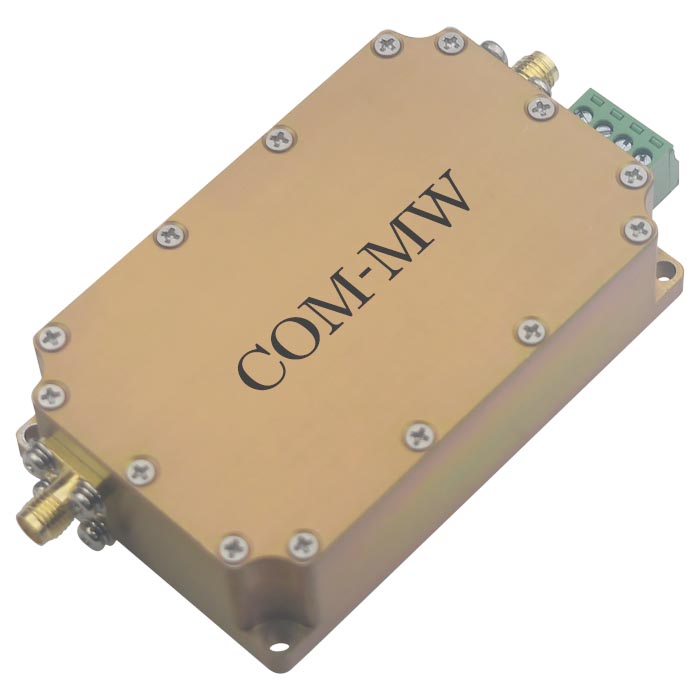

50~1800MHz, Gain42dB, Output power37dBm, SMA-F
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Frequency | 50 | ~ | 1800 | MHz | |
|---|---|---|---|---|---|
| Gain | 42 | dB | Small-signal | ||
| Flatness in band | ±3 | dB | |||
| Output power | 33 | 37 | 40 | dBm | |
| Efficiency | 23 | 30 | % | ||
| Harmonic Rejection | 8 | dBC | |||
| Spurious suppression | 60 | dBC | F0±400kHz | ||
| ACP | 65 | dBC |
| Connector | SMA-F |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +28±4V |
| Working current | 1A |
| Operation Temp. | -40~+65℃ Design assurance |

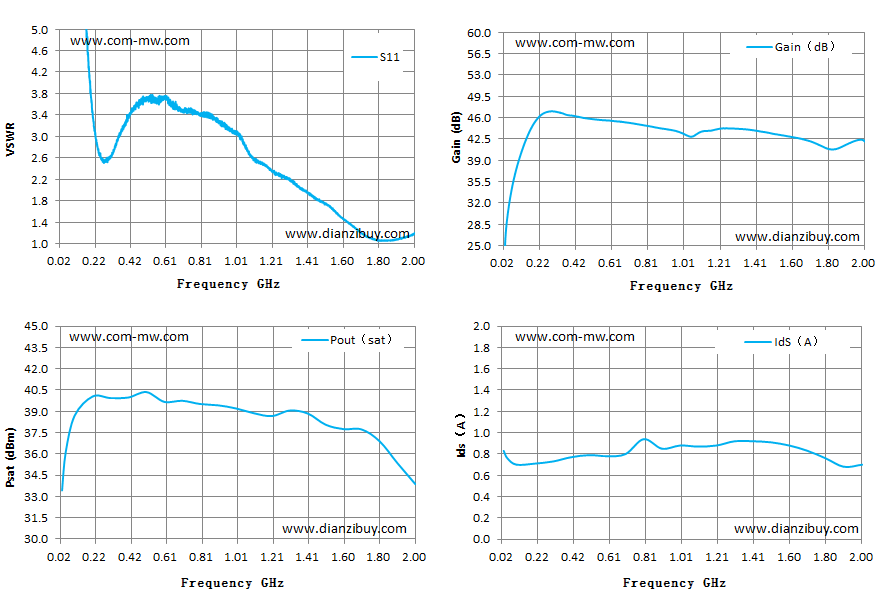

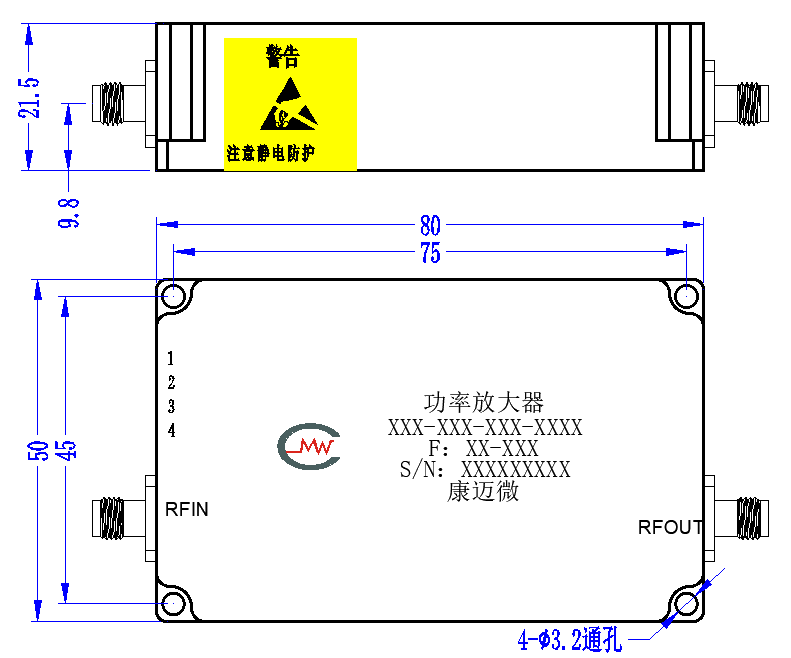

| Pout（SAT）（dBm） | 36.10 | 40.05 | 40.36 | 39.52 | 39.21 | 38.67 | 38.06 | 36.90 |
|---|---|---|---|---|---|---|---|---|
| Pout（SAT）（W） | 4.07 | 10.11 | 10.86 | 8.95 | 8.33 | 7.36 | 6.39 | 4.89 |
| Ids（A） | 0.76 | 0.71 | 0.79 | 0.94 | 0.88 | 0.88 | 0.91 | 0.76 |
| Gain（dB） | 31.29 | 45.54 | 45.77 | 44.68 | 43.43 | 44.14 | 43.32 | 40.78 |
| ŋ（%） | 19.14 | 50.88 | 49.11 | 34.01 | 33.83 | 29.87 | 25.10 | 23.01 |
| 2nd harmonic rejection (dBc) | 12.70 | 20.40 | 26.90 | 21.19 | 29.30 | 19.80 | 19.10 | 16.10 |
| 3rd harmonic rejection (dBc) | 12.60 | 12.10 | 14.30 | 18.19 | 18.80 | 27.00 | 32.70 | 62.20 |
| 4th harmonic rejection (dBc) | 31.30 | 27.10 | 26.10 | 25.50 | 28.30 | 37.90 | 52.30 | 44.30 |
| Spurious suppression | 67.80 | 61.90 | 59.40 | 61.00 | 60.30 | 60.60 | 63.50 | 60.00 |
| ACP（dBc） | 72.40 | 75.10 | 72.40 | 71.40 | 68.70 | 68.80 | 65.70 | 65.10 |
| No. | definition | Note |
|---|---|---|
| 1 | +28V | |
| 2 | GND | |
| 3 | EN | 0=off; 1=On (5V); Suspended default off |
| 4 | POSITIVE | Positive voltage output, short circuited to 3, power amplifier module normally open |
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
