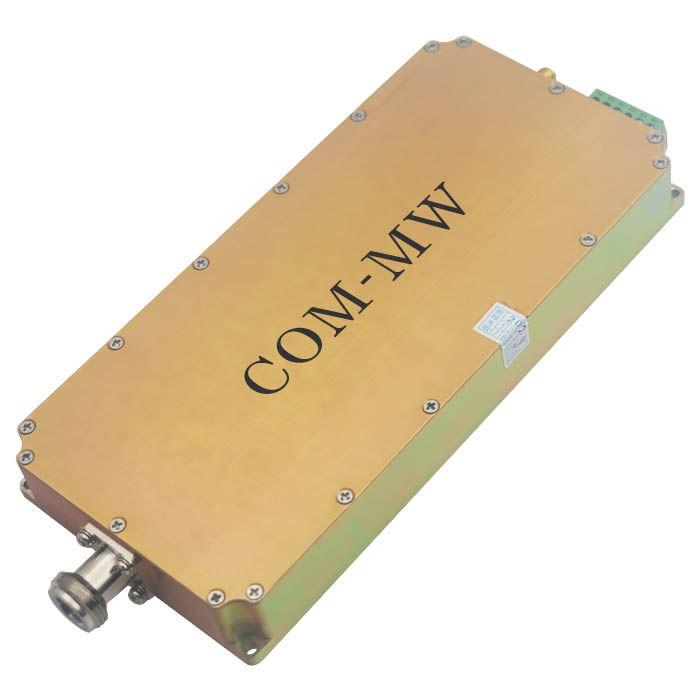

20~1000MHz, Gain38dB, Output power47.5dBm, Efficiency25%, SMA, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
输出功率可达100W。

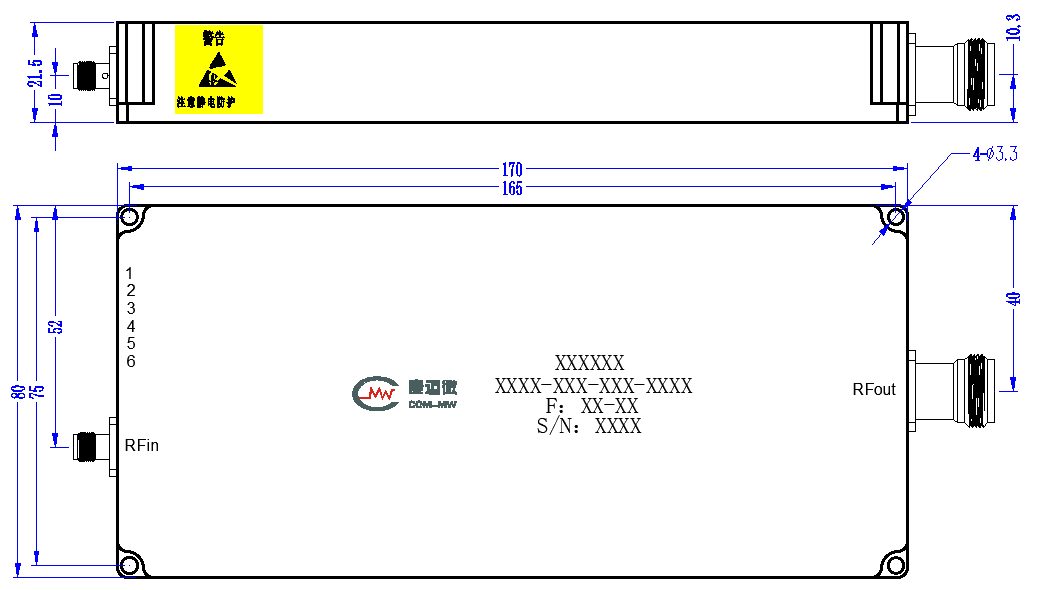

| Parameters | Min | Typical | Max | Units | Note |
|---|---|---|---|---|---|
| Frequency | 20 | ~ | 1000 | MHz | |
| Gain | 38 | dB | Saturated gain | ||
| Flatness in band | ±6 | dB | |||
| Input VSWR | 4 | ||||
| Output power | 47.5 | dBm | CW | ||
| Efficiency | 25 | % | |||
| Harmonic Rejection | 10 | dBc | |||
| Spur reduction | 60 | dBC | |||
| ACP | 65 | dBC |
| Input connector | SMA-K |
| Output port | N -K |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Working voltage | +28±4V |
| Working current | 15A |
| Operation Temp. | -40~+75℃ Design assurance |
| No. | definition | Illustrate |
|---|---|---|
| 1，2 | +28V | V+，必须2路供电，供电线建议采用1~1.5mm2 |
| 3,4 | GND | V-，电源地，必须2路供电，供电线建议采用1~1.5mm2 |
| 5 | EN | 0（OFF）：0V（接地）； 1（ON）：3.3~5V |
| 6 | NC | Not used |

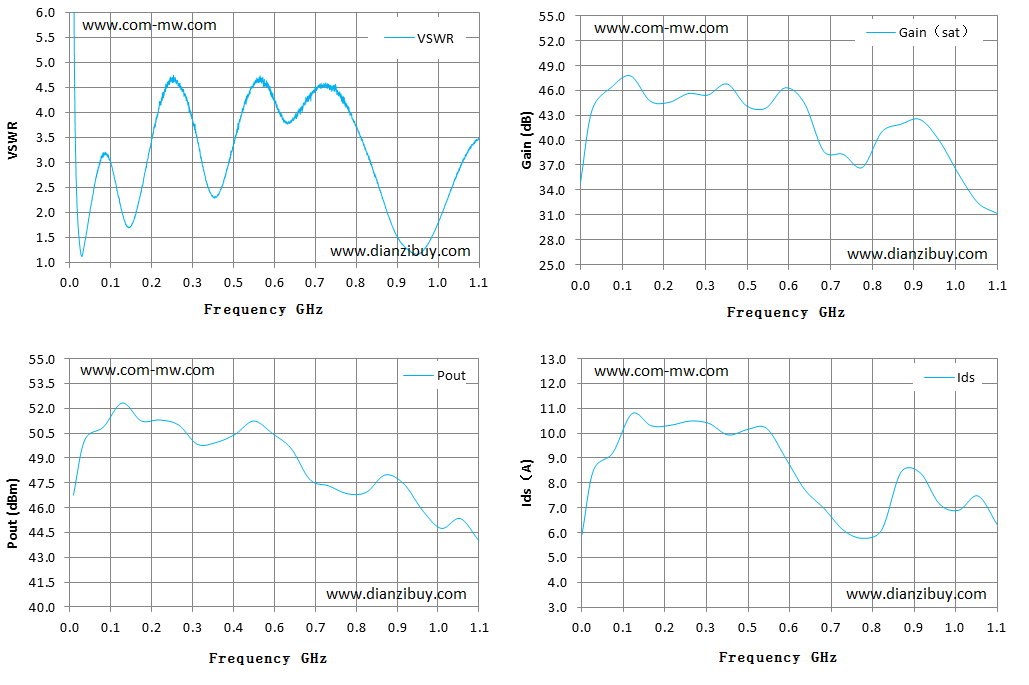

| F（GHz） | 0.02 | 0.1 | 0.3 | 0.5 | 0.6 | 0.8 | 1 |
|---|---|---|---|---|---|---|---|
| Input VSWR | 11.10 | 3.03 | 4.60 | 4.52 | 3.78 | 3.30 | 1.95 |
| Pin（dBm)（sat） | 11.88 | 4.49 | 5.37 | 7.38 | 5.10 | 5.96 | 8.88 |
| Pout（SAT）（dBm） | 46.76 | 50.87 | 51.00 | 51.24 | 49.57 | 46.93 | 44.75 |
| Pout（SAT）（W） | 47.42 | 122.17 | 125.89 | 133.04 | 90.57 | 49.31 | 29.85 |
| Ids（A） | 5.93 | 9.21 | 10.49 | 10.20 | 7.72 | 6.12 | 6.90 |
| Gain（dB）（sat） | 34.88 | 46.38 | 45.63 | 43.86 | 44.47 | 40.97 | 35.87 |
| ŋ（%） | 28.56 | 47.37 | 42.86 | 46.58 | 41.90 | 28.77 | 15.45 |
| 2nd harmonic rejection (dBc) | 9.30 | 32.60 | 20.60 | 28.30 | 40.20 | 49.80 | 58.30 |
| 3rd harmonic rejection (dBc) | 11.20 | 11.89 | 12.50 | 14.70 | 26.50 | 44.10 | 44.00 |
| 4次谐波抑制（dBc） | 16.20 | 30.77 | 25.70 | 44.50 | 80.00 | 75.00 | 68.00 |
| Spurious suppression | 62.00 | 63.70 | 66.20 | 66.00 | 61.00 | 66.00 | 63.00 |
| ACP（dBc） | 72.60 | 67.80 | 67.70 | 66.90 | 65.40 | 68.00 | 65.10 |
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
长期工作，产品温度＜40℃；
