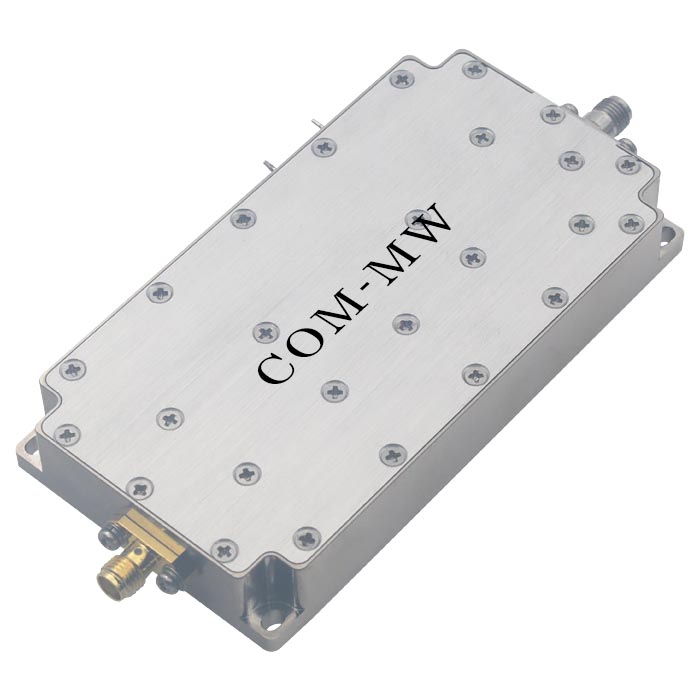

0.009~6000MHz, Gain40dB, Output Psat33dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
宽带功率放大器
| Parameters | Min | Typical | Max | Units | Units |
|---|---|---|---|---|---|
| Frequency | 0.009 | ~ | 6000 | MHz | |
| Gain | 40 | dB | Small signal gain | ||
| Gain flatness | ±4 | dB | |||
| Input VSWR | 1.6 | 2 | |||
| Output Psat | 33 | dBm | |||
| Efficiency | 20 | % | |||
| Spur reduction | 50 | 60 | dBc | ||
| Harmonic Rejection | 8 | dBc |
| Connector | SMA-F or K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +28V |
| Working current | 500mA |
| power waste | ≤9W |
| Operation Temp. | -20~+40℃ Design assurance |
| 散热方式 | 强制风冷 |

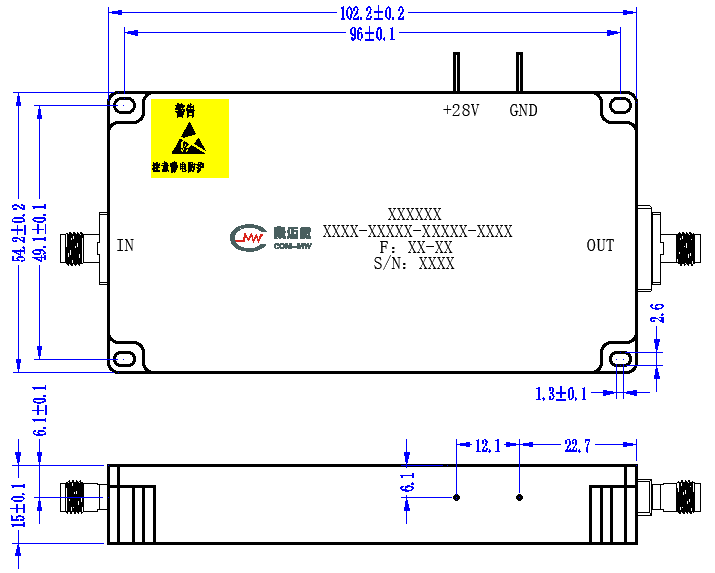

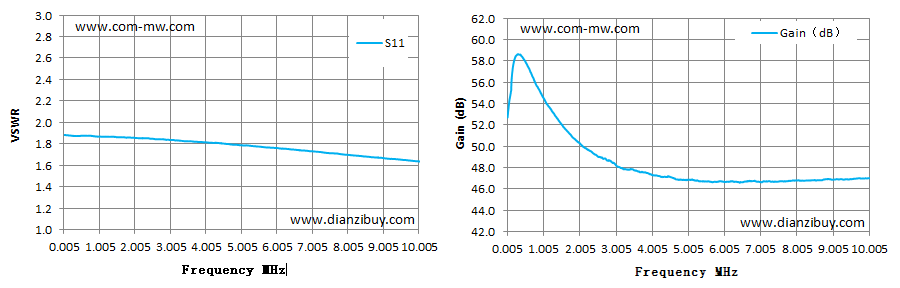

| F（MHz） | 0.009 | 0.01 | 1 | 10 | 50 | 100 |
|---|---|---|---|---|---|---|
| Pin（dBm) | 0.19 | -13.53 | -9.72 | -3.27 | -4.61 | -3.21 |
| Pout（SAT）（dBm） | 33.01 | 35.36 | 35.45 | 35.45 | 35.32 | 36.35 |
| Pout（SAT）（W） | 1.99 | 3.43 | 3.50 | 3.50 | 3.4 | 4.31 |
| Ids（A） | 0.33 | 0.34 | 0.35 | 0.36 | 0.38 | 0.39 |
| Gain（dB） | 52.80 | 52.93 | 54.50 | 47.00 | 48.00 | 48.76 |
| ŋ（%） | 21.64 | 35.66 | 34.89 | 33.94 | 31.9 | 38.62 |
| 2nd harmonic rejection (dBc) | 8.00 | 10.60 | 12.40 | 13.00 | 12.00 | 18.00 |
| 3rd harmonic rejection (dBc) | 19.15 | 15.80 | 13.70 | 15.00 | 17.00 | 12.00 |
| 4th harmonic rejection (dBc) | 22.00 | 15.80 | 15.00 | 22.00 | 22.70 | 23.00 |
| 杂波抑制（dBC） | 63.20 | 63.90 | 63.00 | 68.80 | 71.00 | 75.00 |

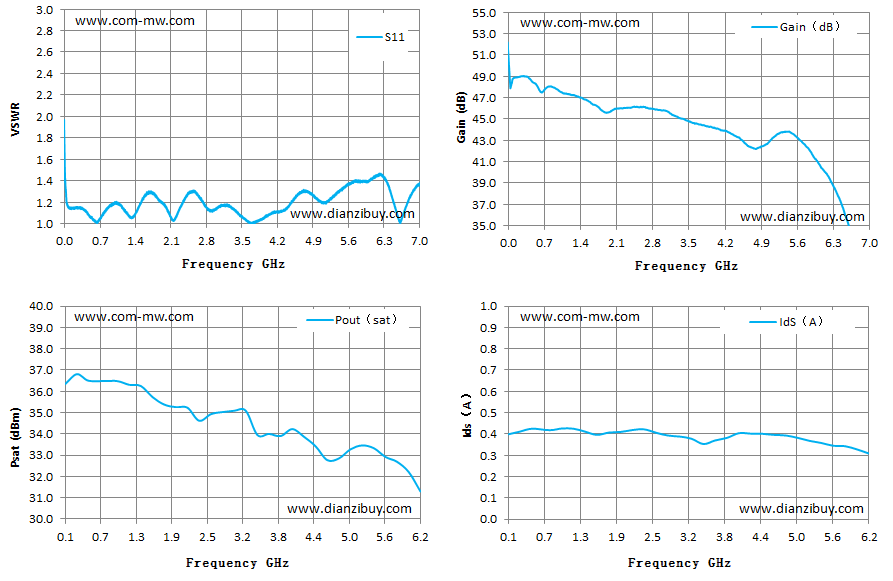

| F（GHz） | 1 | 1.8 | 2.6 | 3.4 | 4.2 | 5 | 5.8 | 6.2 |
|---|---|---|---|---|---|---|---|---|
| Pin（dBm) | -1.13 | -0.66 | -0.40 | -2.21 | 1.74 | 4.40 | -1.54 | -2.67 |
| Pout（SAT）（dBm） | 36.48 | 35.38 | 34.93 | 33.95 | 33.87 | 33.28 | 32.69 | 31.30 |
| Pout（SAT）（W） | 4.44 | 3.45 | 3.11 | 2.48 | 2.43 | 2.12 | 1.85 | 1.34 |
| Ids（A） | 0.42 | 0.40 | 0.40 | 0.35 | 0.40 | 0.38 | 0.34 | 0.30 |
| Gain（dB） | 47.60 | 45.86 | 46.10 | 45.00 | 43.88 | 42.64 | 42.29 | 39.61 |
| ŋ（%） | 37.27 | 30.28 | 27.37 | 25.12 | 21.65 | 19.89 | 19.34 | 15.59 |
| 2nd harmonic rejection (dBc) | 25.00 | 16.00 | 15.80 | 22.60 | 21.00 | 15.20 | 15.50 | 16.60 |
| 3rd harmonic rejection (dBc) | 11.80 | 13.30 | 19.40 | 18.10 | 20.40 | 17.80 | 23.30 | 30.00 |
| 4th harmonic rejection (dBc) | 25.10 | 27.00 | 22.80 | 23.60 | 37.20 | 29.20 | 36.00 | 38.40 |
| 杂波抑制（dBC） | 72.00 | 74.00 | 74.00 | 74.00 | 74.00 | 74.00 | 5.30 | 63.00 |
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
