DC~12750MHz, Choose 1 from 24
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Used for 2G, 3G, 4G, 5G mobile phone testing systems, connecting signal sources, spectrographs, comprehensive testers, and tested terminals for quick switching.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 12750 | MHz |
| Passband IL | 4 | dB | ||
| Rejection | 40 | dB | ||
| VSWR | 2 |

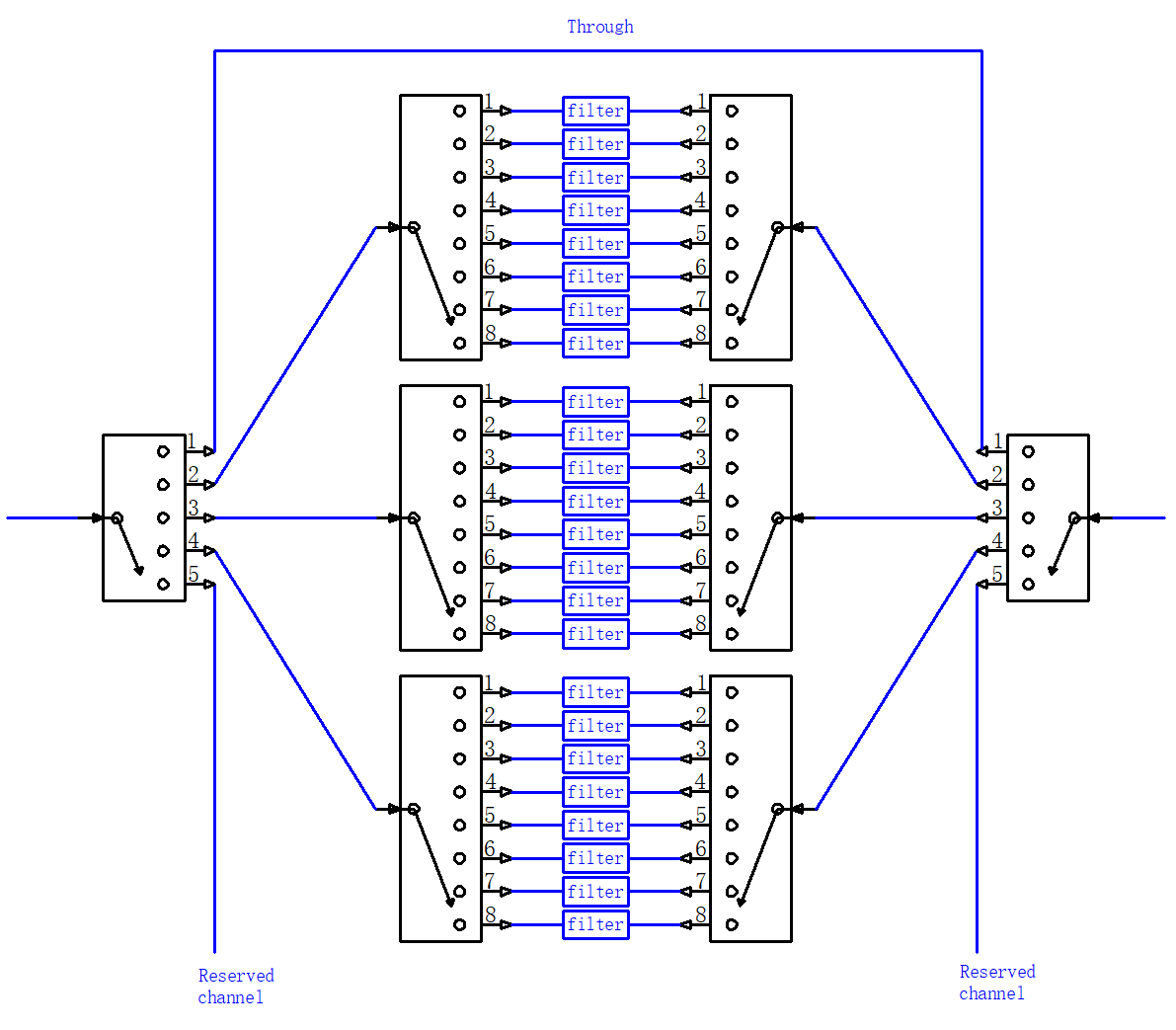

| Switch way | Choose 1 from 24 |
| Switching characteristic | Mechanical switch |
| Switch time | 20ms |
| Connector | N -K |
| Impedance | 50Ω |
| Surface | Grey |
| Power Capacity | 2W Design assurance |
| Product shell material | Aluminium |
| Working voltage | +220V |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |

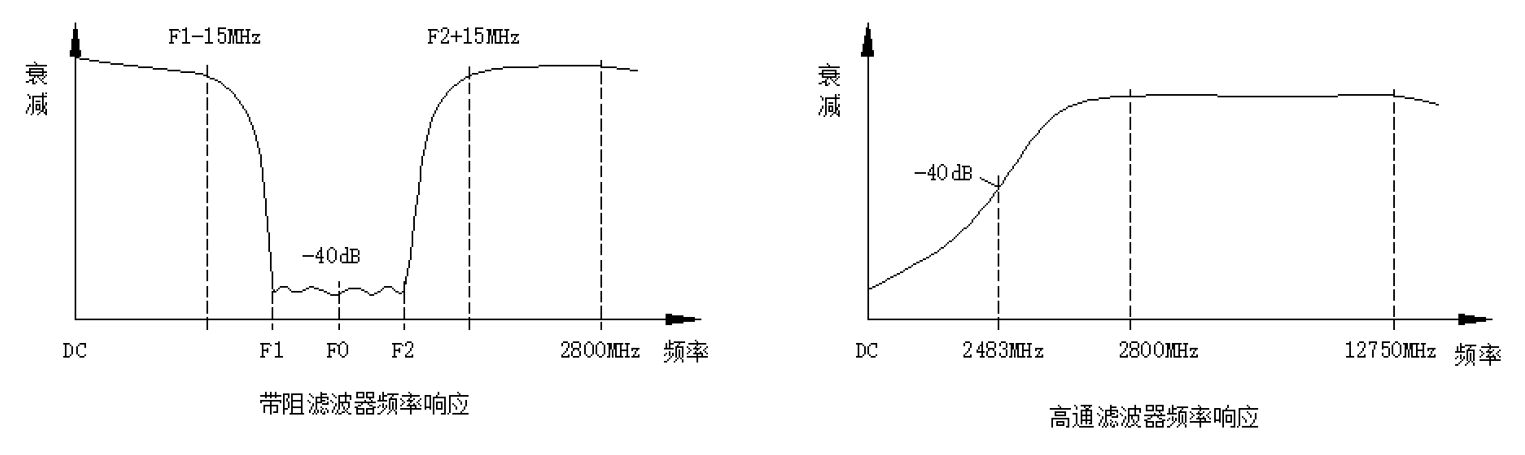

| Notch Band | 1,2,3,4,5,8,12,13,14,17,18,19,20,25,26,28,66,70,71,85,11,85，The stopband frequency band can be customized by the user. |
| Pass Band | 1M~2.5GHz |
| Transition Band | 15MHz |
