| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 5 | ~ | 6 | GHz |
| Passband F2 | / | / | 8.5 | ~ | 9.5 | GHz |
| Passband F3 | / | / | 12 | ~ | 13 | GHz |
| Gain | / | / | 25 | dB | ||
| P-1 | / | / | 10 | dB | ||
| Ripple | / | / | ±1 | dB | ||
| Rejection 1 | DC-4.7&6.3-20 | GHz≥ | 20 | dBc | ||
| Rejection 2 | DC-8.2&9.8-20 | GHz≥ | 20 | dBc | ||
| Rejection 3 | DC-11.7&9.8-20 | GHz≥ | 20 | dBc | ||
| Passband VSWR | / | / | 2.2 |

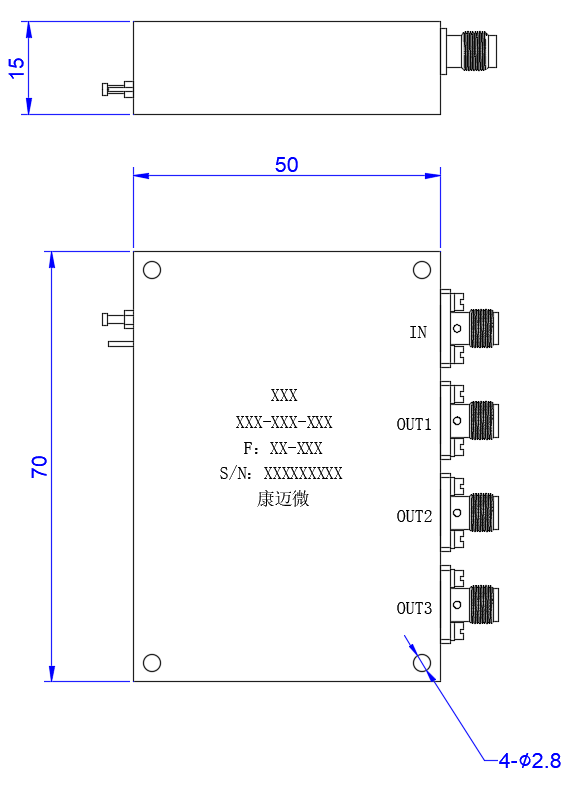

| Connector | SMA-F |
| Impedance | 50Ω |
| Operation Temp. | -40~+60℃ Design assurance |
| Other | 功耗≤5W |
